Wastewater/Activity/PacpInspection/1.0Apr 10, 2019, 06:02 PM
A 1237_A 1233_4102019_131445.mp4
A 1237_A 1233_4102019_132439.mp4
- Date
- 04/10/2019
- W/O
- 0765379
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00331
- PipeID
- P22656
- Time
- 11:02 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7961
- Sewer Name
- A JOINT OUTFALL A - UNIT 2
- City
- CARSON
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 16
- Purpose
- Maintenance Related
- Project
- 20190410DF_JOINT_OUTFALL_A_UNIT_2
- Material
- Reinforced Concrete Pipe
- Shape
- Rectangular
- Height
- 108 in.
- Upstream MH
- A 1237
- Downstream MH
- A 1233
- Dir. of Survey
- Downstream
- Length Surveyed
- 199.8 ft.
- Total Length
- 199.8 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (4)

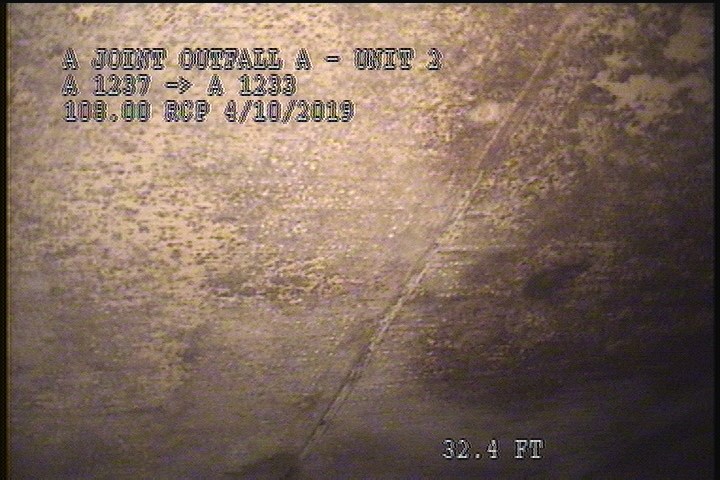

0 ft. - Water Mark, 90 %of cross sectional area

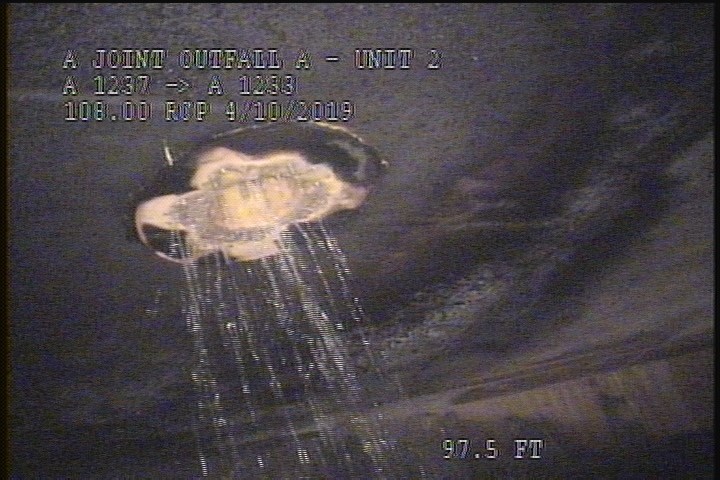

97.5 ft. - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"

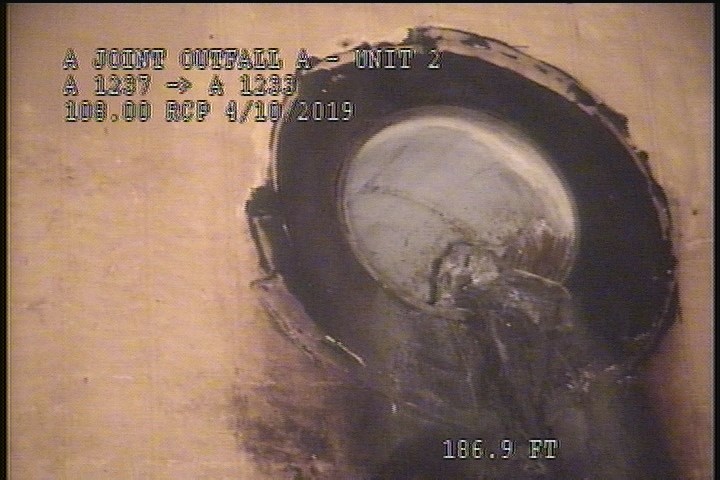

186.9 ft. - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4" - Unkown

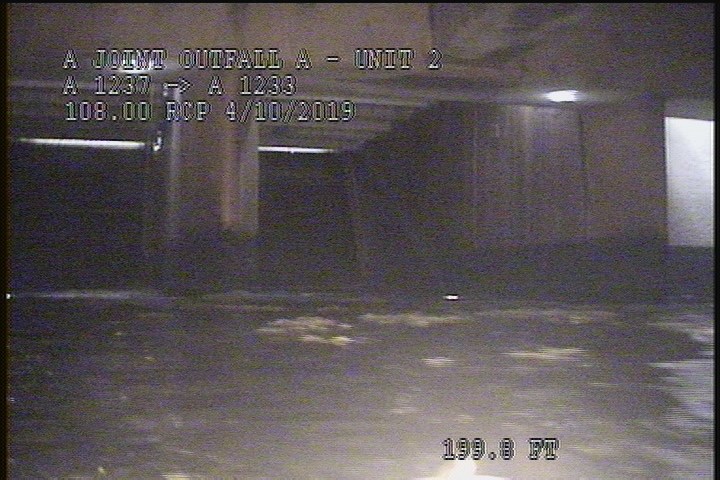

199.8 ft. - Downstream Manhole, Survey Ends - 1:42 PM
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 199.8 | AMH | 1:42 PM |
| 0 | AMH | 11:23 AM |
| 186.9 | TF | Unkown |
| 0 | MWM | — |
| 198 | MGO | GREASE THROUGHOUT THE REACH (5%) |
| 198 | SSS | — |
| 2 | SSS | — |
| 0 | MWL | — |
| 97.5 | TFA | — |
Properties (5)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2019-04-10T11:02:48-07:00
- documentation
- FRANKLIN, CASTILLO, IGNACIO, SHADLER
- is_lateral_inspection
- false
