Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 30, 2018, 08:38 PM

  • A 0318_A 0317_5302018_135551.mp4

Date
05/30/2018
W/O
0706684
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00325
PipeID
P08228
Time
1:38 PM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7721
Sewer Name
A JOA-1A SAN JOSE CREEK WRP INTERCEPTOR
City
SOUTH EL MONTE
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
29
Purpose
Capital Improvement Program Assesment
Project
20180530SHO_JOA1A_SAN_JOSE_CREEK_WRP_INTERCEPTOR
Material
Reinforced Concrete Pipe
Shape
Circular
Height
63 in.
Upstream MH
A 0318
Downstream MH
A 0317
Dir. of Survey
Downstream
Length Surveyed
2 ft.
Total Length
2 ft.
Structural Index
4
Structural Quick
5131
Structural Rating
8
O&M Index
5
O&M Quick
5100
O&M Rating
5
Overall Index
4
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole A 0318 to A 0317
MH: A 0318MH: A 0317downstream0 ft. AMH - Upstream Manhole, Survey Begins - 01550 ft. MWL - Water Level, 95 %of cross sectional area0 ft. MWM - Water Mark, 100 %of cross sectional area2 ft. SRC - Surface Reinforcement Corroded, from 10 to 03 o'clock, within 8 inches of joint: YES2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO2 ft. MSA - Survey Abandoned - VIEW OF THE DOWNLEG OF THE SIPHON2 ft. MGO - General Observation - VIEW OF THE AIRLINE

Observation photos (4)

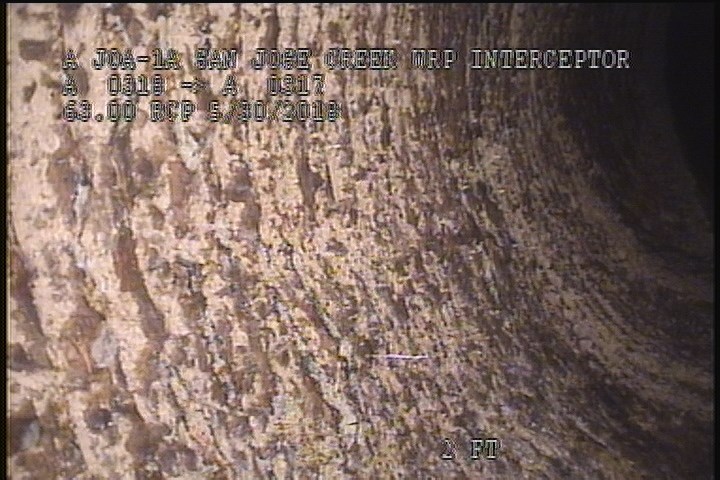

  • Surface Reinforcement Corroded, from 10 to 03 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Reinforcement Corroded, from 10 to 03 o'clock, within 8 inches of joint: YES

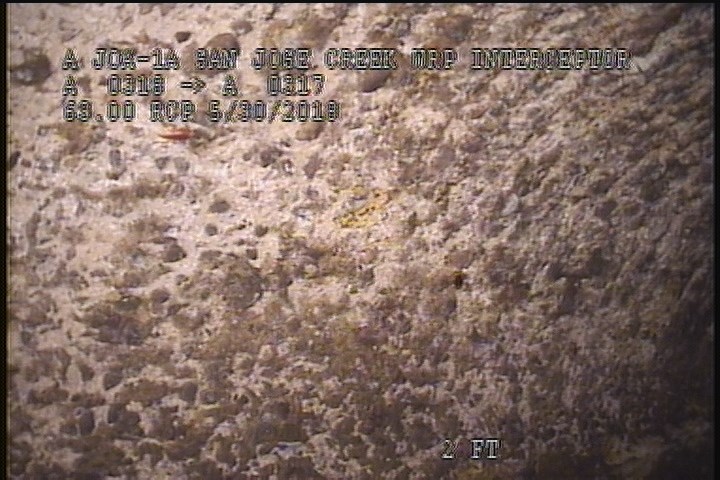

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO

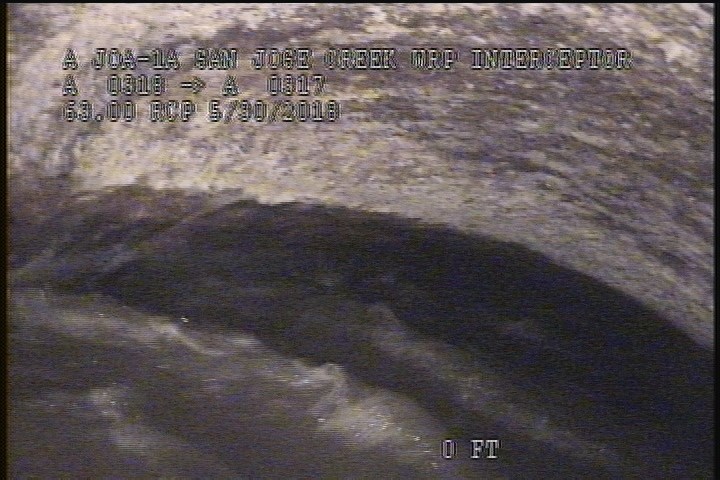

  • Survey Abandoned - VIEW OF THE DOWNLEG OF THE SIPHON

    2 ft. - Survey Abandoned - VIEW OF THE DOWNLEG OF THE SIPHON

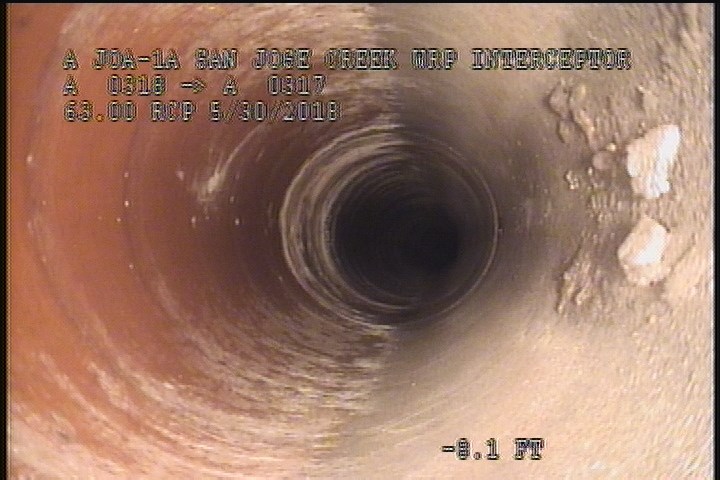

  • General Observation - VIEW OF THE AIRLINE

    2 ft. - General Observation - VIEW OF THE AIRLINE

All inspections of P08228Work order 0706684

Observations (7)

DistanceCodeObservation
0AMH0155
0MWL—
2SRC—
2SAP—
0MWM—
2MSAVIEW OF THE DOWNLEG OF THE SIPHON
2MGOVIEW OF THE AIRLINE

Properties (7)

additional_info
RFIR, VIEW OF THE DOWNLEG OF THE SIPHON
custom_field_three
REBAR CORRODED
custom_field_two
2
customer
LACSD
datetime
2018-05-30T13:38:30-07:00
documentation
OBREGON, BRAR, VENDRYES, PARAISO
is_lateral_inspection
false
