Wastewater/Activity/PacpInspection/1.0May 30, 2018, 03:55 PM
A 0306_A 0305_5302018_104934.mp4
- Date
- 05/30/2018
- W/O
- 0706842
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00325
- PipeID
- P08216
- Time
- 8:55 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7721
- Sewer Name
- A JOA-1A SAN JOSE CREEK WRP INTERCEPTOR
- City
- SOUTH EL MONTE
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 29
- Purpose
- Capital Improvement Program Assesment
- Project
- 20180530SHO_JOA1A_SAN_JOSE_CREEK_WRP_INTERCEPTOR
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 63 in.
- Upstream MH
- A 0306
- Downstream MH
- A 0305
- Dir. of Survey
- Downstream
- Length Surveyed
- 1059.5 ft.
- Total Length
- 1059.5 ft.
- Structural Index
- 1
- Structural Quick
- 1100
- Structural Rating
- 1
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (3)

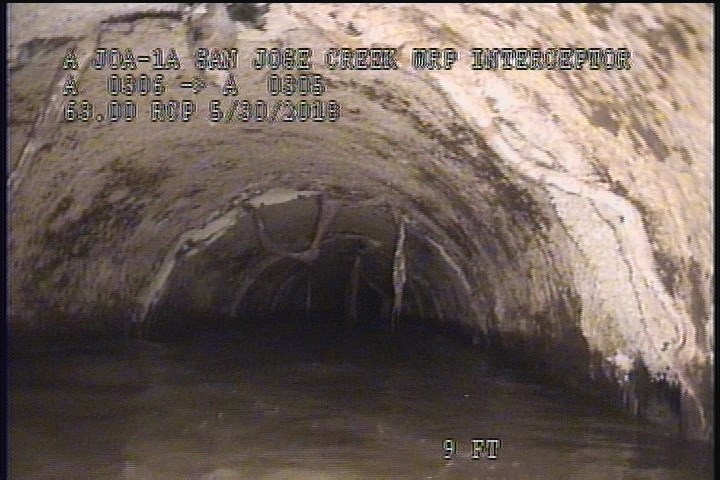

9 ft. - General Observation - JOINT GASKETS ARE COMING OFF, START

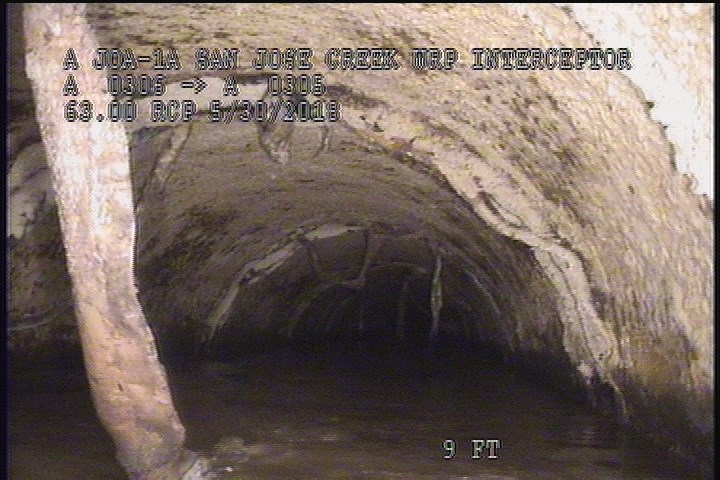

9 ft. - General Observation - 90% MAG COAT INTACT

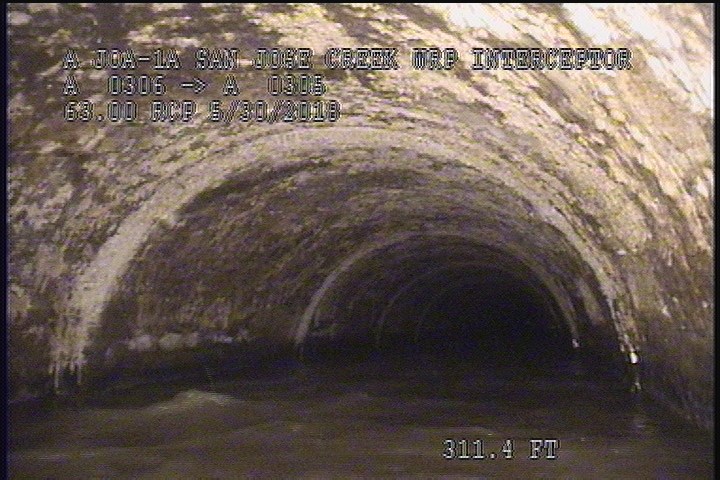

311.4 ft. - Surface Roughness Increased, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 1050 |
| 0 | MWL | — |
| 61.8 | MGO | JOINT GASKETS ARE COMING OFF, END |
| 9 | MGO | JOINT GASKETS ARE COMING OFF, START |
| 0 | MWM | — |
| 311.4 | SRI | — |
| 9 | MGO | 90% MAG COAT INTACT |
| 1059.5 | SRI | — |
| 1059.5 | AMH | 1200 |
Properties (8)
- additional_info
- RFIR
- custom_field_three
- RFIR, 90% MAG COAT INTACT
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-05-30T08:55:08-07:00
- documentation
- OBREGON, BRAR, VENDRYES, PARAISO
- is_lateral_inspection
- false
- year_laid
- 19790427
