Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 23, 2018, 09:25 AM

  • 02 0868_02 0867_23082018_024044.mp4

Date
08/23/2018
W/O
723912
Weather
Dry
Operator/Surveyor
N.ZAHREDDINE
Sewer ID
Z00297
PipeID
P03435
Time
2:25 AM
Certificate
U-109-7948
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6058
Sewer Name
02 OLD RIVER SCHOOL ROAD RELIEF TRUNK, SECTS 2&3
City
DOWNEY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
24
Purpose
Routine Assessment
Project
WO_723912_TV02216_SEP2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
27 in.
Width
27 in.
Upstream MH
02 0868
Downstream MH
02 0867
Dir. of Survey
Downstream
Length Surveyed
11.1 ft.
Total Length
11.1 ft.
Structural Index
4
Structural Quick
5131
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 02 0868 to 02 0867
MH: 02 0868MH: 02 0867downstream0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 08680 ft. MWM - Water Mark, 40 %of cross sectional area2 ft. MGO - General Observation - MAG COAT 10%2 ft. SAPC - Surface Aggregate Projecting Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SRCM - Surface Reinforcement Corroded Mechanical, from 10 to 02 o'clock, within 8 inches of joint: YES, Start8.8 ft. SRCM - Surface Reinforcement Corroded Mechanical, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish8.8 ft. SAPC - Surface Aggregate Projecting Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish10.3 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK11.1 ft. AMH - Downstream Manhole, Survey Ends - 02 0867

Observation photos (4)

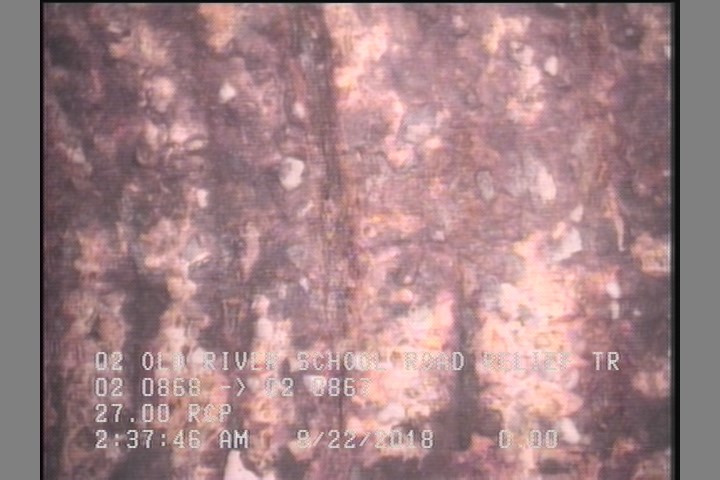

  • Surface Aggregate Projecting Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Surface Reinforcement Corroded Mechanical, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Reinforcement Corroded Mechanical, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

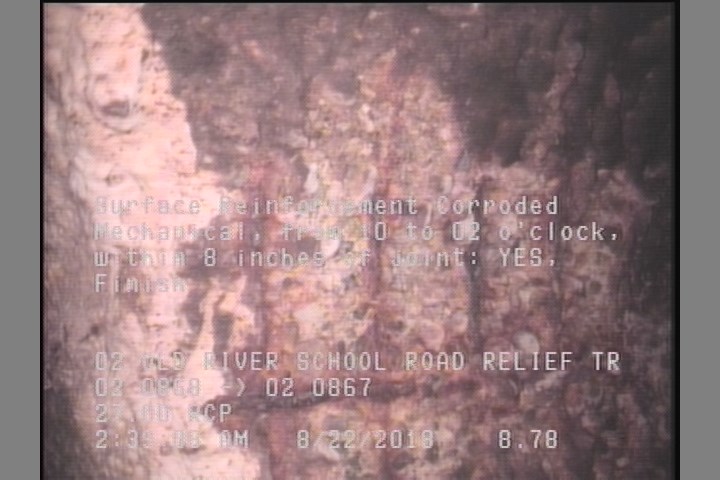

  • Surface Reinforcement Corroded Mechanical, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish

    8.8 ft. - Surface Reinforcement Corroded Mechanical, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish

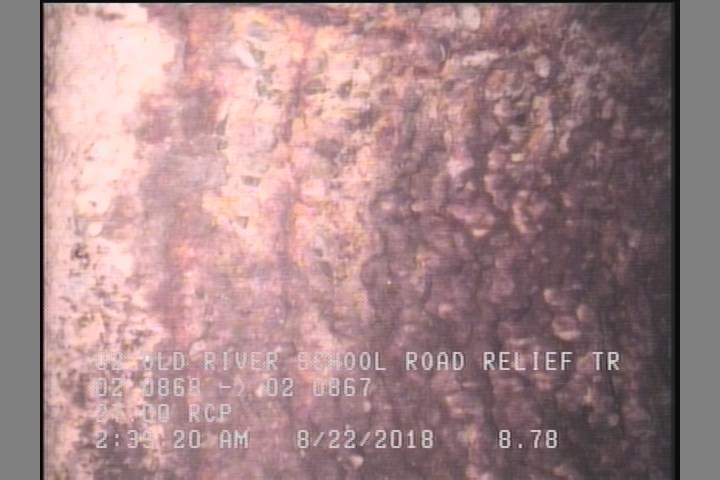

  • Surface Aggregate Projecting Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

    8.8 ft. - Surface Aggregate Projecting Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

All inspections of P03435Work order 723912

Observations (11)

DistanceCodeObservation
0MGOCONNECTION AT MH 3 O'CLOCK
10.3MGOCONNECTION AT MH 3 O'CLOCK
2MGOMAG COAT 10%
0MWL—
0AMH02 0868
0MWM—
11.1AMH02 0867
8.8SRCM—
2SAPC—
2SRCM—
8.8SAPC—

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2018-08-23T02:25:32-07:00
documentation
PRO PIPE
is_lateral_inspection
false
