Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 28, 2019, 12:44 PM

  • H 0903_H 0820_6282019_060239.mp4

Date
06/28/2019
W/O
0771771
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00934
PipeID
P20376
Time
5:44 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G8011
Sewer Name
H JOINT OUTFALL H - UNIT 5A RELIEF
City
WHITTIER
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
33
Purpose
Routine Assessment
Project
20190628DF_JOINT_OUTFALL_H_UNIT_5A_RELIEF
Material
RCP-PTL
Shape
Circular
Height
84 in.
Upstream MH
H 0903
Downstream MH
H 0820
Dir. of Survey
Downstream
Length Surveyed
334.7 ft.
Total Length
334.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
5
O&M Quick
5100
O&M Rating
5
Overall Index
5
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole H 0903 to H 0820
MH: H 0903MH: H 0820downstream0 ft. AMH - Upstream Manhole, Survey Begins - 5:44 AM0.1 ft. MWL - Water Level, 15 %of cross sectional area0.1 ft. MWM - Water Mark, 20 %of cross sectional area42.9 ft. MGP - General Photograph42.9 ft. MGP - General Photograph82.9 ft. MGP - General Photograph282 ft. MGP - General Photograph286.1 ft. IG - Infiltration Gusher, at 10 o'clock, within 8 inches of joint: YES286.2 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"334.6 ft. MGO - General Observation - Grease Throughout The Reach (5%)334.7 ft. AMH - Downstream Manhole, Survey Ends - 6:13 AM

Observation photos (6)

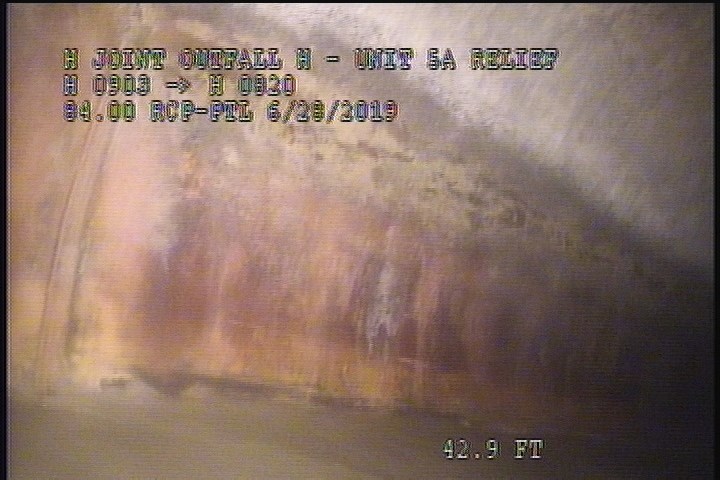

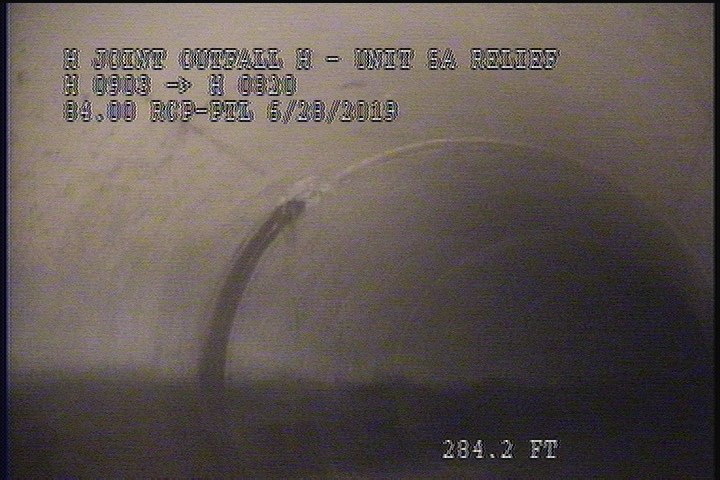

  • General Photograph

    42.9 ft. - General Photograph

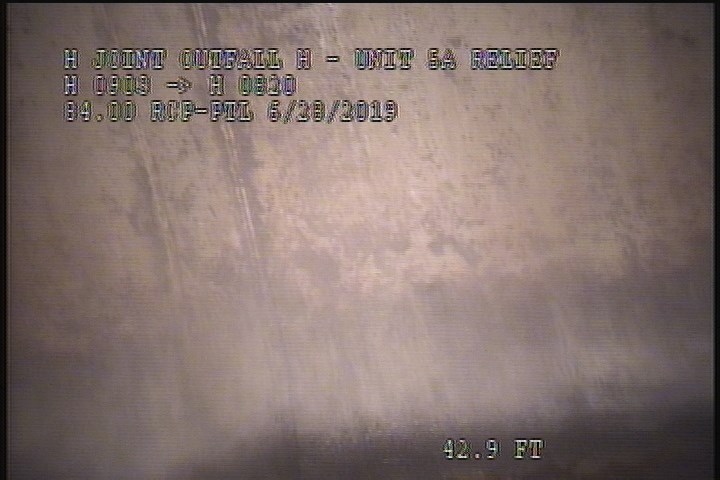

  • General Photograph

    42.9 ft. - General Photograph

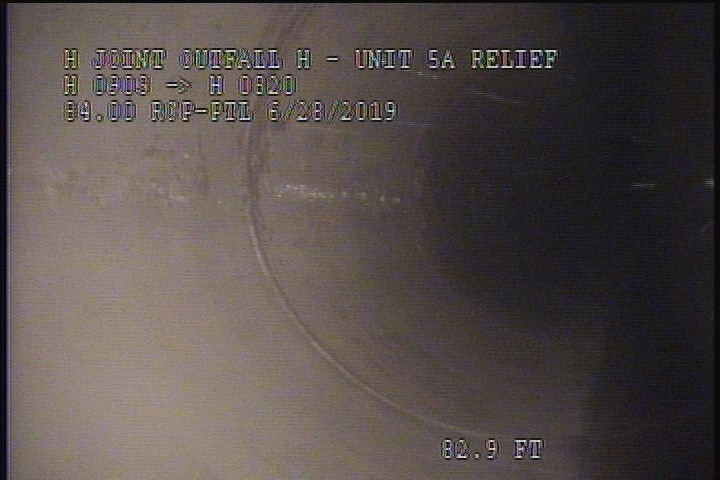

  • General Photograph

    82.9 ft. - General Photograph

  • General Photograph

    282 ft. - General Photograph

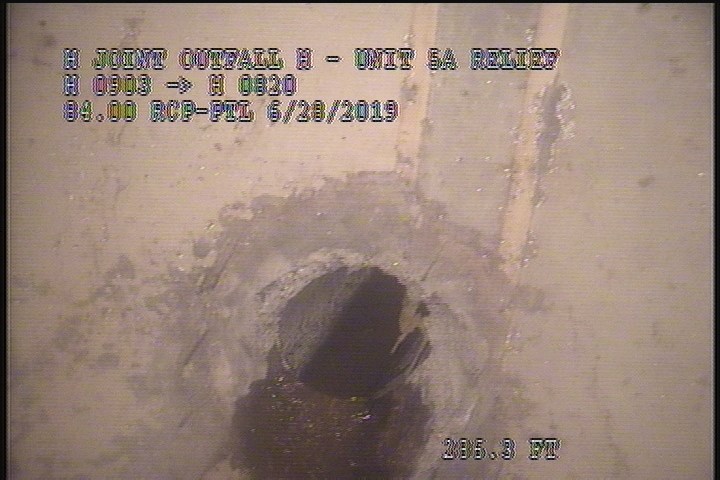

  • Infiltration Gusher, at 10 o'clock, within 8 inches of joint: YES

    286.1 ft. - Infiltration Gusher, at 10 o'clock, within 8 inches of joint: YES

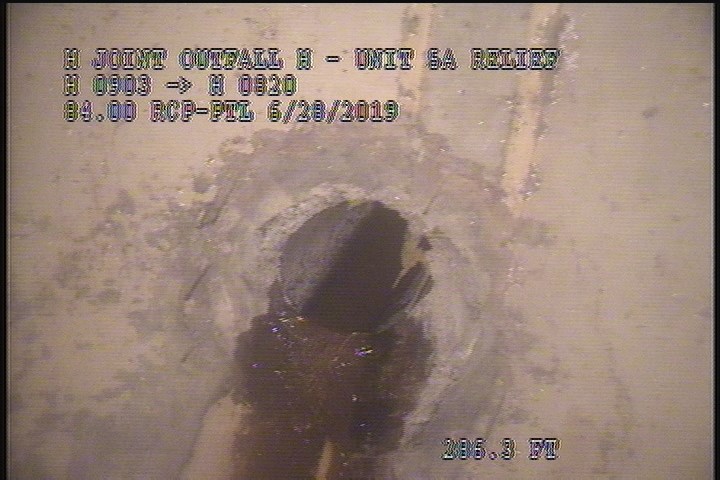

  • Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"

    286.2 ft. - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"

All inspections of P20376Work order 0771771

Observations (11)

DistanceCodeObservation
334.7AMH6:13 AM
286.2TBA—
0.1MWL—
82.9MGP—
286.1IG—
42.9MGP—
334.6MGOGrease Throughout The Reach (5%)
42.9MGP—
0AMH5:44 AM
282MGP—
0.1MWM—

Properties (6)

custom_field_three
POSSIBLE INFITRATION GUSHER @ 286'
custom_field_two
4
customer
LACSD
datetime
2019-06-28T05:44:02-07:00
documentation
FRANKLIN, BRAR, IGNACIO, RUVALCABA
is_lateral_inspection
false
