Wastewater/Activity/PacpInspection/1.0Jun 22, 2018, 08:15 AM
B 0405_B 0404 _22062018_012608.mp4
- Date
- 06/22/2018
- W/O
- 712460
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00091
- PipeID
- P08917
- Time
- 1:15 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5702
- Sewer Name
- B JOINT OUTFALL B - UNIT 5A
- City
- ARCADIA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_712460_TV15047_JUL2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- B 0405
- Downstream MH
- B 0404
- Dir. of Survey
- Downstream
- Length Surveyed
- 237.8 ft.
- Total Length
- 237.8 ft.
- Structural Index
- 3
- Structural Quick
- 3H2H
- Structural Rating
- 229
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 231
Observation photos (3)

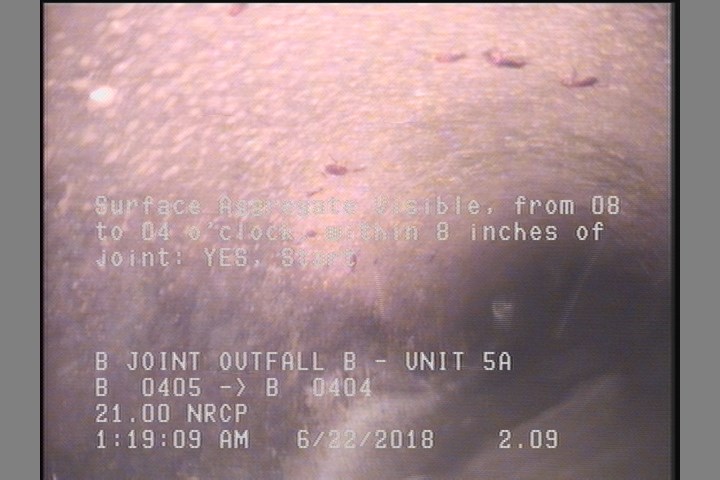

2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

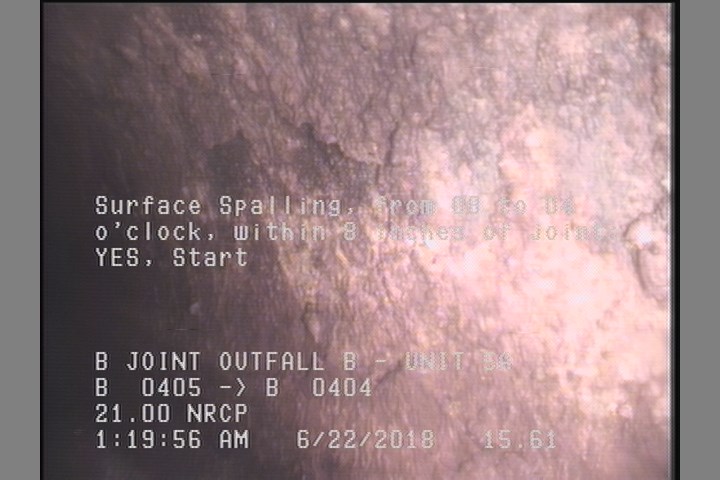

15.6 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

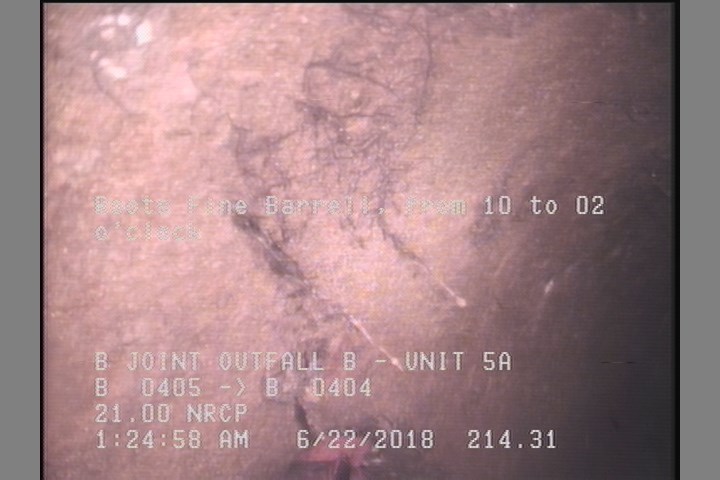

214.3 ft. - Roots Fine Barrell, from 10 to 02 o'clock
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 237.8 | AMH | B 0404 |
| 0 | MWM | — |
| 237.8 | SAV | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 15.6 | SSS | — |
| 215.2 | TFA | — |
| 214.3 | RFB | — |
| 184.5 | TF | — |
| 176.6 | TF | — |
| 237.8 | SSS | — |
| 118.4 | TFA | — |
| 2.1 | SAV | — |
| 0 | AMH | B 0405 |
| 112.7 | TF | — |
Properties (6)
- additional_info
- SC359660
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-06-22T01:15:50-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
