Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 21, 2018, 09:52 AM

  • 08 0140_08 0139 _21062018_030804.mp4

Date
06/21/2018
W/O
707209
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00006
PipeID
P00196
Time
2:52 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5741
Sewer Name
08 FIGUEROA STREET TRUNK
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
02
Purpose
Routine Assessment
Project
WO_707209_TV08173_JUN2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
08 0140
Downstream MH
08 0139
Dir. of Survey
Downstream
Length Surveyed
406.1 ft.
Total Length
406.1 ft.
Structural Index
3
Structural Quick
433Z
Structural Rating
425
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
425
Pipe schematic from manhole 08 0140 to 08 0139
MH: 08 0140MH: 08 0139downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 08 01400 ft. MWM - Water Mark, 20 %of cross sectional area2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start36.2 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start53.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"53.2 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish103.8 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES120.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start149.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"253.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"353.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"404.4 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish404.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish406.1 ft. AMH - Downstream Manhole, Survey Ends - 08 0139

Observation photos (4)

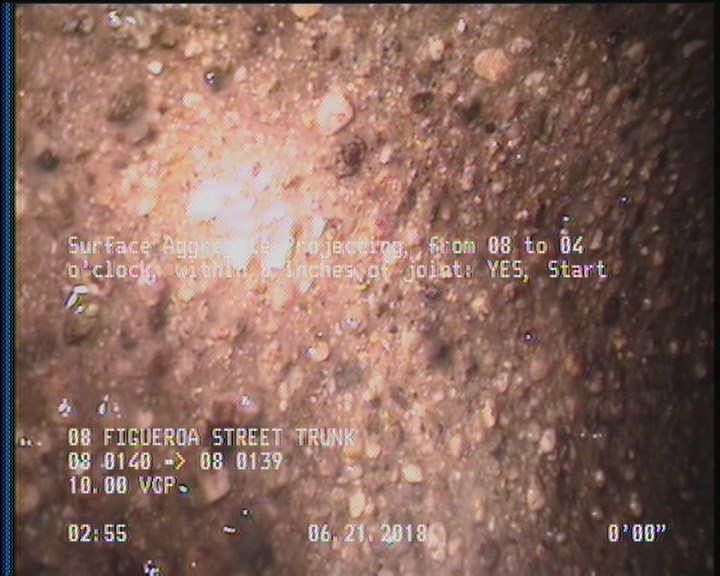

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

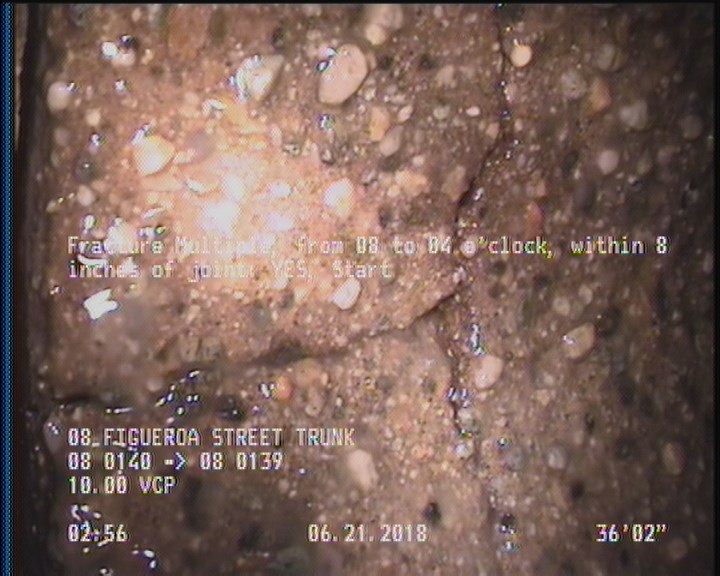

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    36.2 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

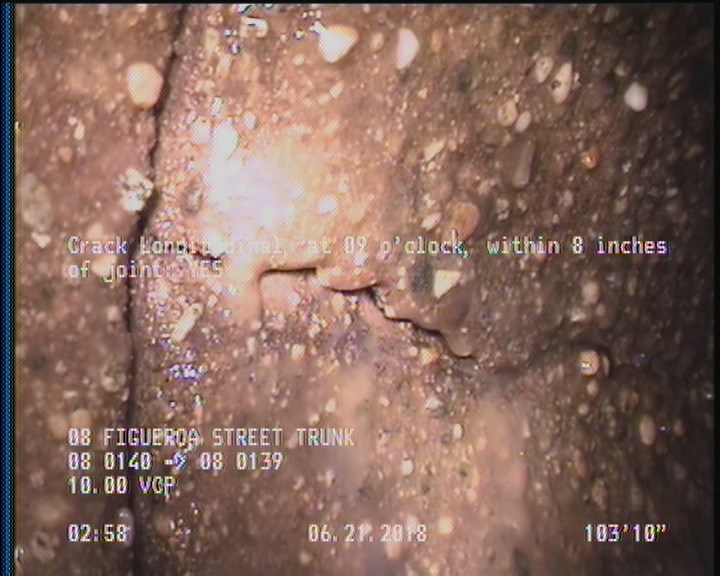

  • Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

    103.8 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

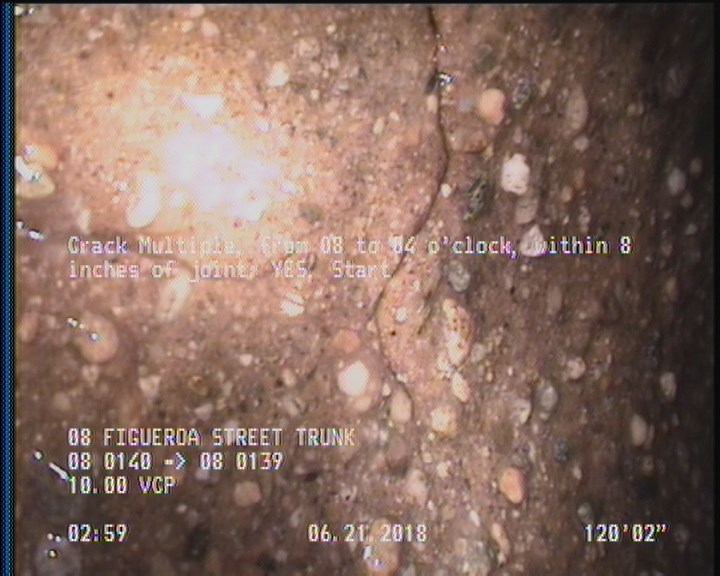

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    120.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P00196Work order 707209

Observations (15)

DistanceCodeObservation
253.2TFC—
0MWL—
36.2FM—
149.7TFC—
406.1AMH08 0139
404.4SAP—
0AMH08 0140
2SAP—
53.2TFA—
353.6TFC—
103.8CL—
404.4CM—
0MWM—
120.2CM—
53.2FM—

Properties (6)

additional_info
SC359707
custom_field_two
2
customer
LACSD
datetime
2018-06-21T02:52:50-07:00
documentation
PRO PIPE
is_lateral_inspection
false
