Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 12, 2018, 05:02 AM

  • 15 0667_15 0666 _11062018_231457.mp4

Date
06/11/2018
W/O
707118
Weather
Dry
Operator/Surveyor
J. BUENROSTRO
Sewer ID
Z00602
PipeID
P12559
Time
10:02 PM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5191
Sewer Name
15 EL MONTE AVENUE TRUNK
City
TEMPLE CITY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
11
Purpose
Routine Assessment
Project
WO_707118_TV15005_JUN2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
15 0667
Downstream MH
15 0666
Dir. of Survey
Downstream
Length Surveyed
297.7 ft.
Total Length
297.7 ft.
Structural Index
3
Structural Quick
4121
Structural Rating
6
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 15 0667 to 15 0666
MH: 15 0667MH: 15 0666downstream0 ft. MGO - General Observation - SERVICE CONNECTION AT 9 O'CLOCK AT MH0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 15 06672.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2.5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start38 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"68.9 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"93 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"126.7 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"184.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"196 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"252.8 ft. FM - Fracture Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES295.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish296.1 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish297.7 ft. MGO - General Observation - SERVICE CONNECTION AT 9 O'CLOCK AT MH297.7 ft. AMH - Downstream Manhole, Survey Ends - 15 0666297.7 ft. MGO - General Observation - SERVICE CONNECTION AT 3 O' CLOCK AT MH

Observation photos (3)

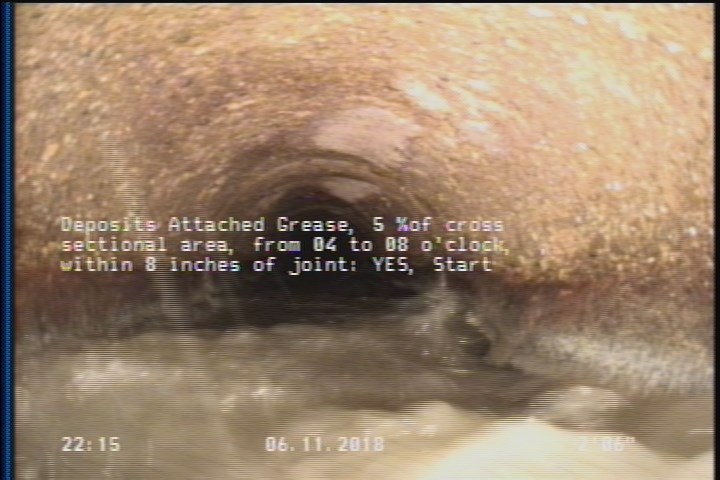

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

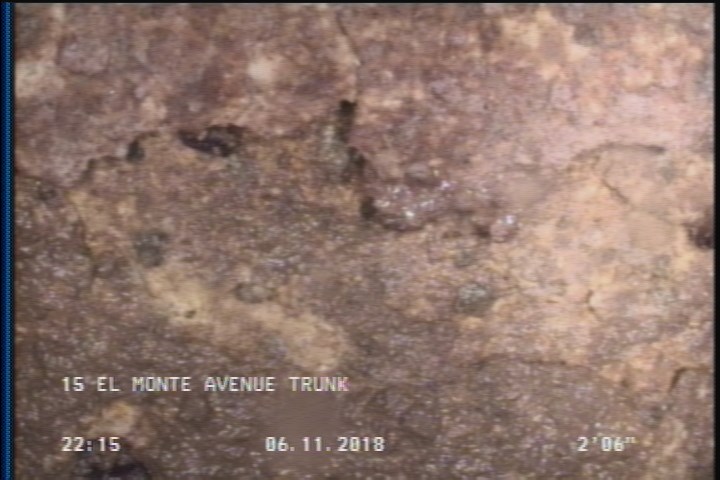

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.5 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

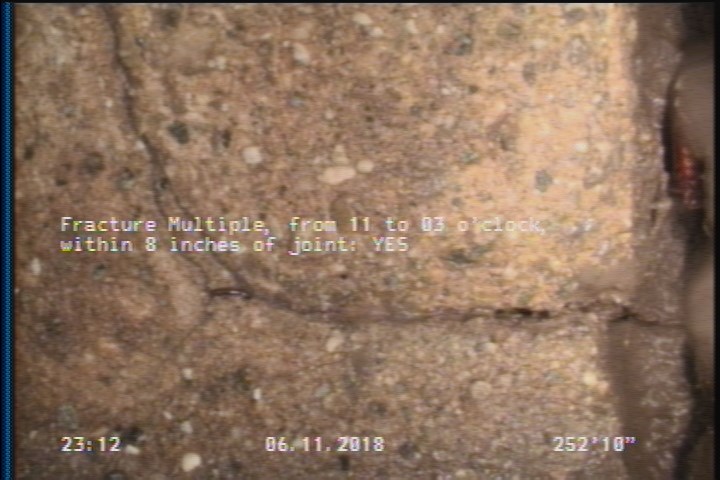

  • Fracture Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES

    252.8 ft. - Fracture Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES

All inspections of P12559Work order 707118

Observations (18)

DistanceCodeObservation
0MGOSERVICE CONNECTION AT 9 O'CLOCK AT MH
252.8FM—
126.7TB—
0MWM—
297.7MGOSERVICE CONNECTION AT 9 O'CLOCK AT MH
0MWL—
296.1SSS—
38TFC—
295.9DAGS—
184.3TF—
297.7AMH15 0666
297.7MGOSERVICE CONNECTION AT 3 O' CLOCK AT MH
68.9TB—
2.5DAGS—
93TFC—
2.5SSS—
0AMH15 0667
196TFC—
