Wastewater/Activity/PacpInspection/1.0Jun 12, 2018, 10:26 AM
15 0669_15 0668 _12062018_033732.mp4
- Date
- 06/12/2018
- W/O
- 707118
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00602
- PipeID
- P12561
- Time
- 3:26 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5191
- Sewer Name
- 15 EL MONTE AVENUE TRUNK
- City
- TEMPLE CITY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_707118_TV15005_JUN2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 15 0669
- Downstream MH
- 15 0668
- Dir. of Survey
- Downstream
- Length Surveyed
- 177.1 ft.
- Total Length
- 177.1 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 3
- O&M Quick
- 4121
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (3)

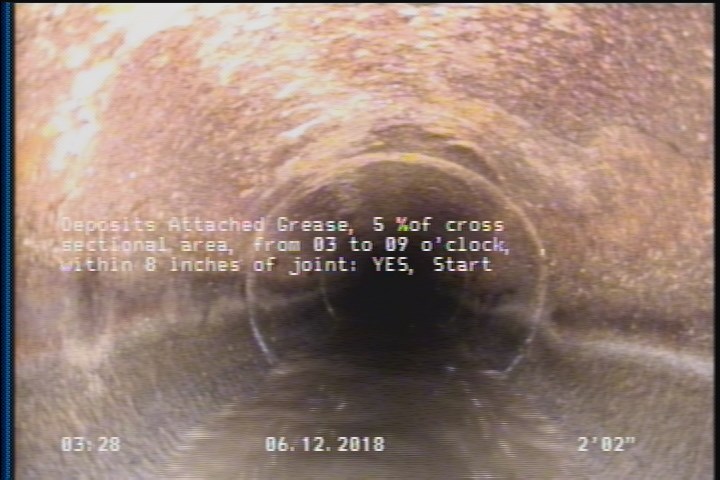

2.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

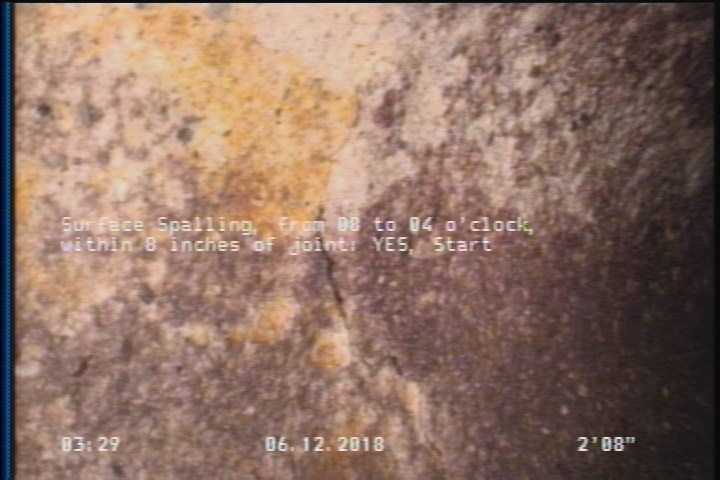

2.7 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

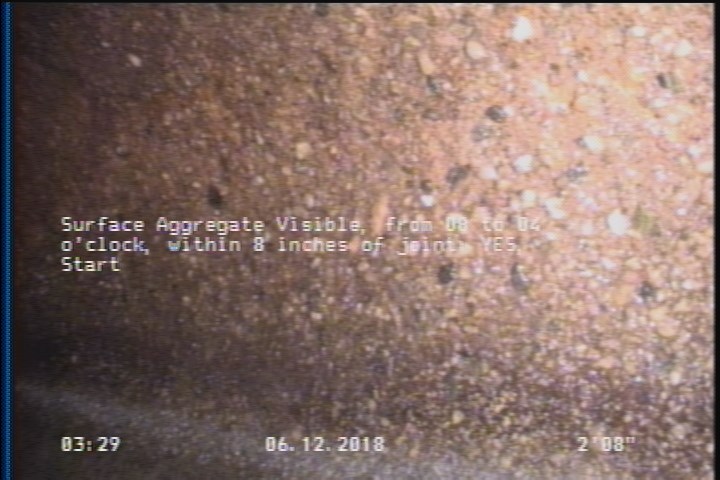

2.7 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 177.1 | AMH | 15 0668 |
| 0 | MWM | — |
| 2.7 | SSS | — |
| 12.1 | TFC | — |
| 48.6 | TF | — |
| 174.6 | SAV | — |
| 0 | AMH | 15 0669 |
| 124.7 | TF | — |
| 2.2 | DAGS | — |
| 0 | MWL | — |
| 177.1 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 113.8 | TB | — |
| 2.7 | SAV | — |
| 118.5 | TF | — |
| 174.6 | DAGS | — |
| 174.6 | SSS | — |
Properties (6)
- additional_info
- SC359514
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-06-12T03:26:32-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
