Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 7, 2018, 08:36 AM

  • 14 0381_14 0380 _07062018_014910.mp4

Date
06/07/2018
W/O
707005
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00581
PipeID
P18460
Time
1:36 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5721
Sewer Name
14 TRUNK "E"
City
LANCASTER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 14
Page No.
17
Purpose
Routine Assessment
Project
WO_707005_TV14025_JUN2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
14 0381
Downstream MH
14 0380
Dir. of Survey
Downstream
Length Surveyed
326 ft.
Total Length
326 ft.
Structural Index
3
Structural Quick
3L2L
Structural Rating
320
O&M Index
2
O&M Quick
412L
O&M Rating
132
Overall Index
2
Overall Quick
—
Overall Rating
452
Pipe schematic from manhole 14 0381 to 14 0380
MH: 14 0381MH: 14 0380downstream0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 14 03810 ft. MWM - Water Mark, 60 %of cross sectional area2 ft. SAP - Surface Aggregate Projecting, from 03 to 09 o'clock, within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 03 to 09 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start20.1 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"22.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"75.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"99.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"127.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"151.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"166.4 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"175.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"199.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"228.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"248.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"276.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"300.3 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"324 ft. SSS - Surface Spalling, from 03 to 09 o'clock, within 8 inches of joint: YES, Finish324 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish324 ft. SAP - Surface Aggregate Projecting, from 03 to 09 o'clock, within 8 inches of joint: YES, Finish326 ft. AMH - Downstream Manhole, Survey Ends - 14 0380

Observation photos (3)

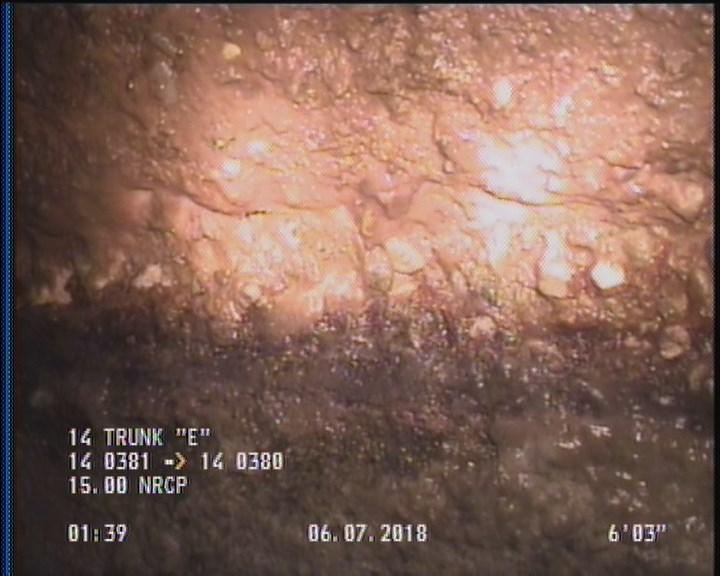

  • Surface Aggregate Projecting, from 03 to 09 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 03 to 09 o'clock, within 8 inches of joint: YES, Start

  • Surface Spalling, from 03 to 09 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 03 to 09 o'clock, within 8 inches of joint: YES, Start

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

All inspections of P18460Work order 707005

Observations (23)

DistanceCodeObservation
99.4TFC—
228.4TFC—
0MWL—
324SSS—
0AMH14 0381
300.3TBA—
326AMH14 0380
324DAGS—
276.8TFC—
2SAP—
0MWM—
2SSS—
166.4TBA—
175.8TFC—
199.8TFC—
248.5TFC—
127.3TFC—
22.7TFC—
151.8TFC—
324SAP—
2DAGS—
75.2TFC—
20.1TBA—

Properties (6)

additional_info
SC359387
custom_field_two
2
customer
LACSD
datetime
2018-06-07T01:36:49-07:00
documentation
PRO PIPE
is_lateral_inspection
false
