Wastewater/Activity/PacpInspection/1.0Jun 6, 2018, 08:05 AM
14 0389_14 0388 _06062018_010954.mp4
- Date
- 06/06/2018
- W/O
- 707005
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00581
- PipeID
- P18469
- Time
- 1:05 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5720
- Sewer Name
- 14 TRUNK "E"
- City
- LANCASTER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_707005_TV14025_JUN2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 14 0389
- Downstream MH
- 14 0388
- Dir. of Survey
- Downstream
- Length Surveyed
- 39.1 ft.
- Total Length
- 39.1 ft.
- Structural Index
- 3
- Structural Quick
- 3727
- Structural Rating
- 35
- O&M Index
- 2
- O&M Quick
- 4127
- O&M Rating
- 18
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 53
Observation photos (3)

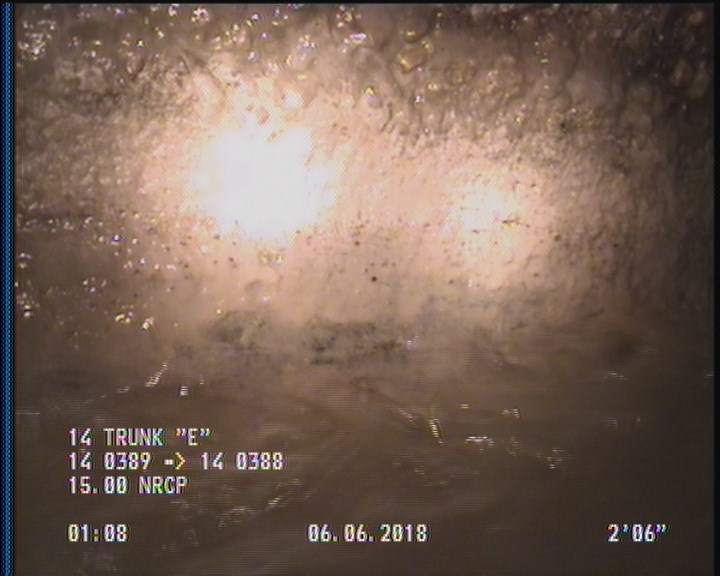

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

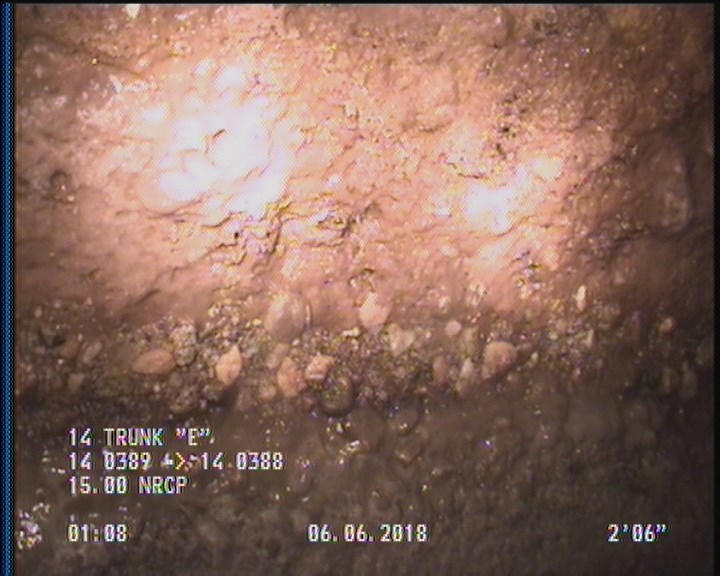

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

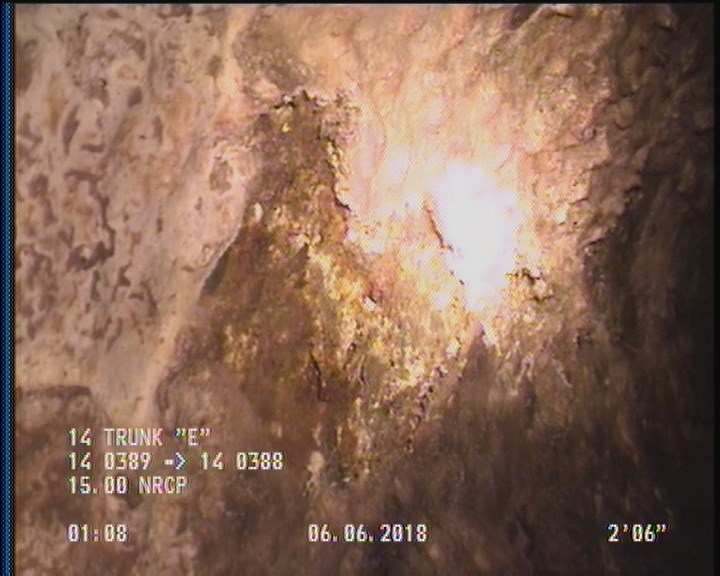

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 2 | DAGS | — |
| 2 | SAP | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 37 | DAGS | — |
| 37 | SSS | — |
| 0 | MWL | — |
| 37 | SAP | — |
| 2 | SSS | — |
| 0 | AMH | 14 0389 |
| 17.9 | TFC | — |
| 39.1 | AMH | 14 0388 |
Properties (6)
- additional_info
- SC359386
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-06-06T01:05:07-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
