Wastewater/Activity/PacpInspection/1.0Jun 11, 2018, 07:52 AM
18 0018_18 0017 _11062018_010756.mp4
- Date
- 06/11/2018
- W/O
- 706968
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00713
- PipeID
- P13834
- Time
- 12:52 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5190
- Sewer Name
- 18 WALNUT WAY TRUNK
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 15
- Purpose
- Routine Assessment
- Project
- WO_706968_TV18059_JUN2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 18 0018
- Downstream MH
- 18 0017
- Dir. of Survey
- Downstream
- Length Surveyed
- 35.4 ft.
- Total Length
- 35.4 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (3)

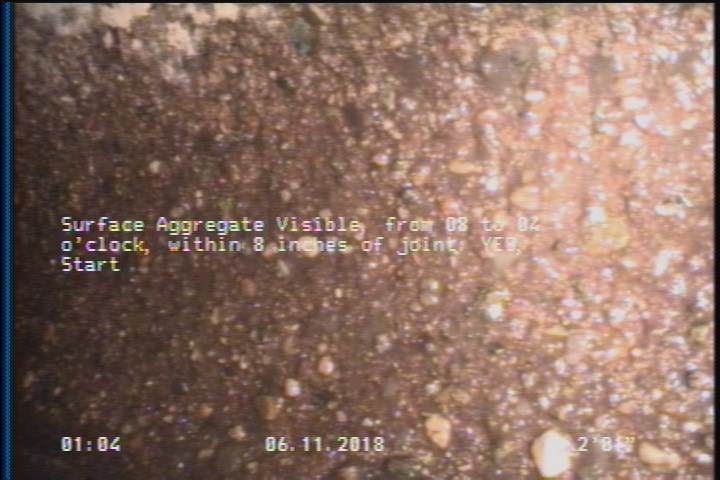

2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

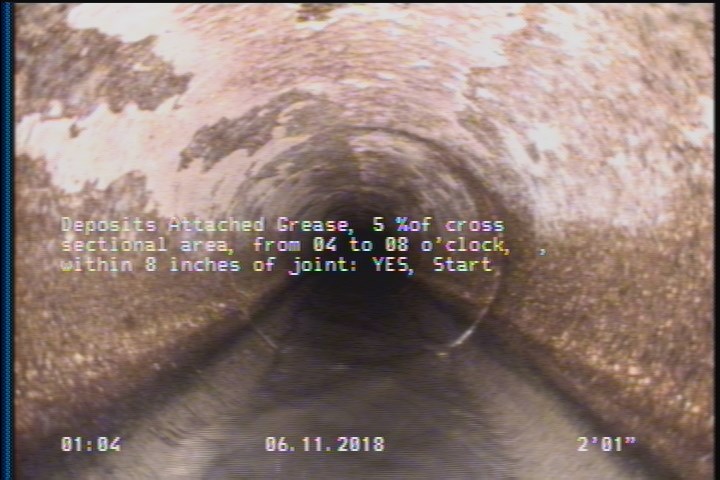

2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

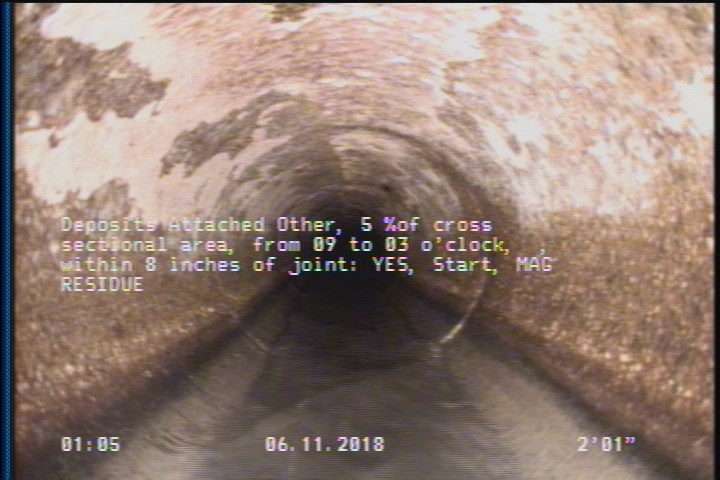

2.1 ft. - Deposits Attached Other, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start - MAG RESIDUE
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | SAV | — |
| 35.4 | AMH | 18 0017 |
| 0 | MWM | — |
| 32.8 | SAV | — |
| 2.1 | DAGS | — |
| 2.1 | DAZ | MAG RESIDUE |
| 32.8 | DAZ | MAG RESIDUE |
| 32.8 | DAGS | — |
| 0 | MWL | — |
| 0 | AMH | 18 0018 |
| 35.4 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
Properties (6)
- additional_info
- SC359513
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-06-11T00:52:34-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
