Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 8, 2018, 08:43 AM

  • 18 0027_18 0026 _08062018_015249.mp4

Date
06/08/2018
W/O
706968
Weather
Dry
Operator/Surveyor
J. BUENROSTRO
Sewer ID
Z00713
PipeID
P13843
Time
1:43 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5189
Sewer Name
18 WALNUT WAY TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
15
Purpose
Routine Assessment
Project
WO_706968_TV18059_JUN2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
18 0026
Downstream MH
18 0027
Dir. of Survey
Upstream
Length Surveyed
88.6 ft.
Total Length
88.6 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole 18 0026 to 18 0027
MH: 18 0026MH: 18 0027upstream0 ft. AMH - Upstream Manhole, Survey Ends - 18 00270.6 ft. MGO - General Observation - SERVICE CONNECTION AT 3 O' CLOCK AT MH2.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish2.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish73.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"83.6 ft. MGO - General Observation - MAGNEZIUM H.O COATING start , FLAKING83.6 ft. CS - Crack Spiral, from 04 to 08 o'clock, within 8 inches of joint: YES83.6 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start85.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start88.6 ft. MWL - Water Level, 10 %of cross sectional area88.6 ft. MGO - General Observation - SERVICE CONNECTION AT 3 O' CLOCK AT MH88.6 ft. AMH - Downstream Manhole, Survey Begins - 18 002688.6 ft. MWM - Water Mark, 20 %of cross sectional area

Observation photos (3)

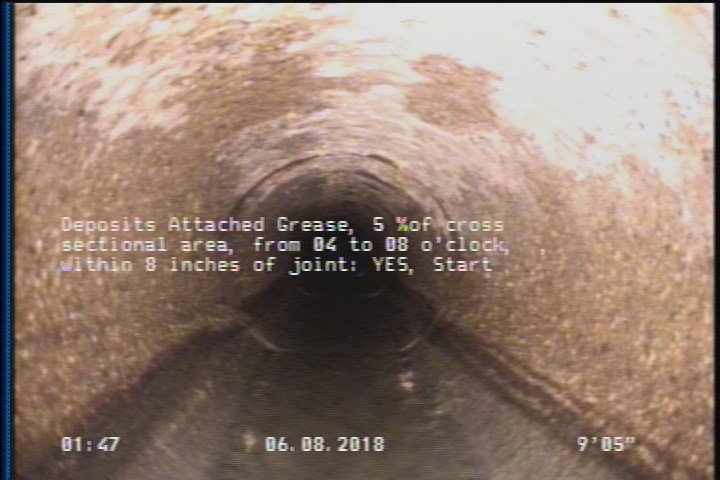

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

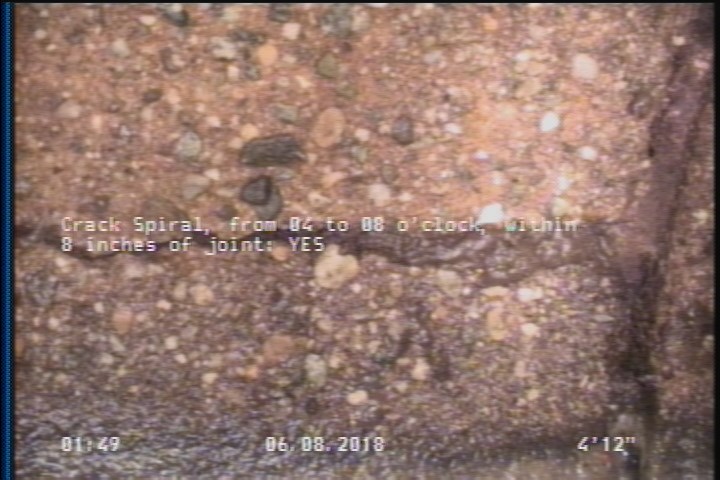

  • Crack Spiral, from 04 to 08 o'clock, within 8 inches of joint: YES

    5 ft. - Crack Spiral, from 04 to 08 o'clock, within 8 inches of joint: YES

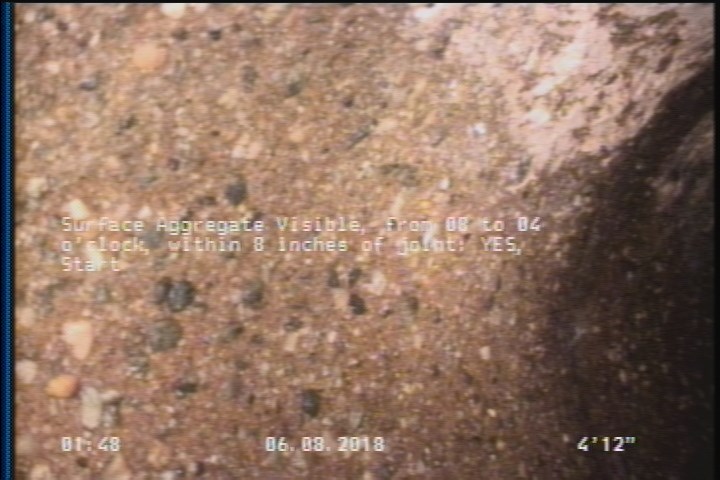

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P13843Work order 706968

Observations (13)

DistanceCodeObservation
3DAGS—
5MGOMAGNEZIUM H.O COATING start , FLAKING
86.2DAGS—
0MWL—
5CS—
0MGOSERVICE CONNECTION AT 3 O' CLOCK AT MH
15TFC—
88MGOSERVICE CONNECTION AT 3 O' CLOCK AT MH
86.1SAV—
5SAV—
0AMH18 0026
0MWM—
88.6AMH18 0027

Properties (6)

additional_info
SC359511
custom_field_two
3
customer
LACSD
datetime
2018-06-08T01:43:40-07:00
documentation
PROPIPE
is_lateral_inspection
false
