Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 12, 2018, 07:15 AM

  • 20 0438_20 0437 _12062018_003201.mp4

Date
06/12/2018
W/O
706912
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00749
PipeID
P19386
Time
12:15 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5725
Sewer Name
20 10TH STREET EAST CONNECTION TRUNK
City
PALMDALE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 20
Page No.
12
Purpose
Routine Assessment
Project
WO_706912_TV20001_JUN2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
20 0437
Downstream MH
20 0438
Dir. of Survey
Upstream
Length Surveyed
272.4 ft.
Total Length
272.4 ft.
Structural Index
3
Structural Quick
413G
Structural Rating
130
O&M Index
2
O&M Quick
2J00
O&M Rating
108
Overall Index
2
Overall Quick
—
Overall Rating
238
Pipe schematic from manhole 20 0437 to 20 0438
MH: 20 0437MH: 20 0438upstream0 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish0 ft. AMH - Upstream Manhole, Survey Ends - 20 04380 ft. MGO - General Observation - CAPPED CONNECTION AT MH 3 O'CLOCK0 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0 ft. MGO - General Observation - COCKROACHES IN MANHOLE7.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"10.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"70.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"73.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"118.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"121 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"168.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"170.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"210.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start219.7 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"221.8 ft. FM - Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES222.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"270.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start272.4 ft. MWL - Water Level, 5 %of cross sectional area272.4 ft. MWM - Water Mark, 10 %of cross sectional area272.4 ft. AMH - Downstream Manhole, Survey Begins - 20 0437272.4 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (3)

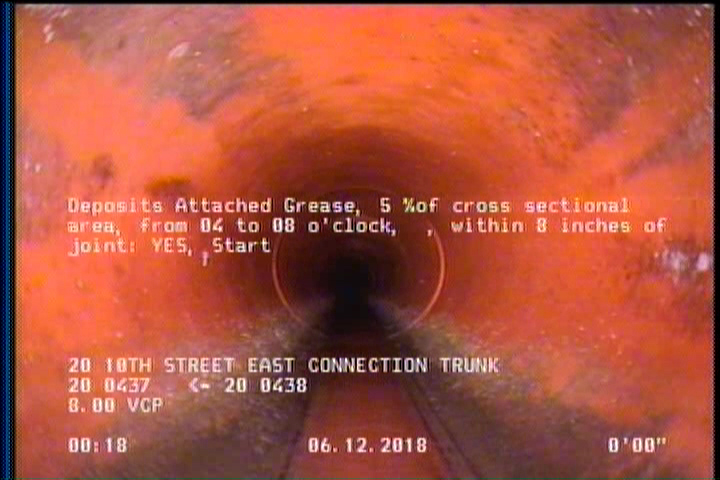

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

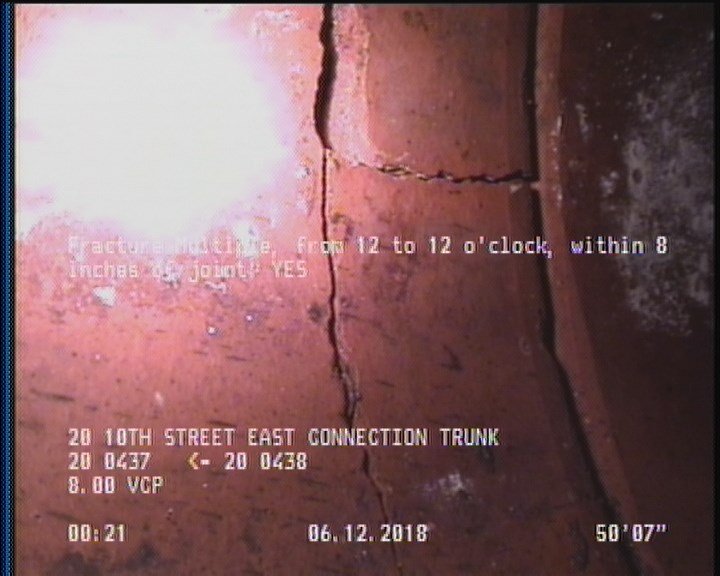

  • Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

    50.6 ft. - Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

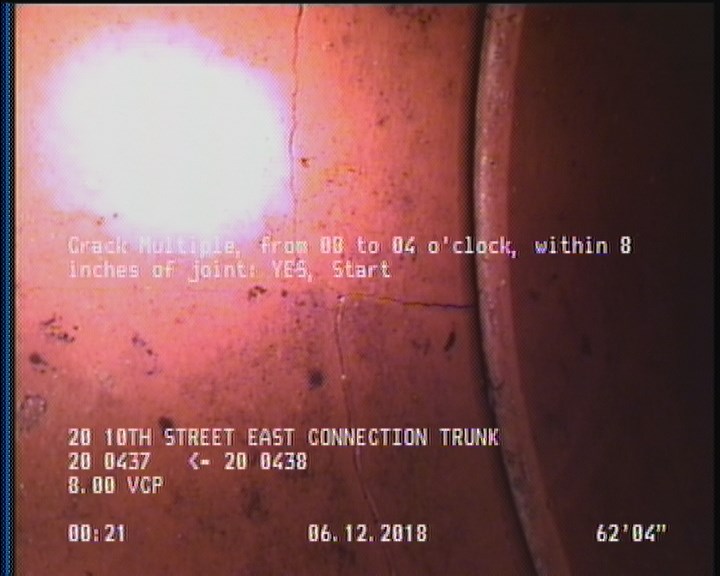

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    62.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P19386Work order 706912

Observations (22)

DistanceCodeObservation
62.3CM—
0MWL—
52.7TFA—
154TFA—
0MWM—
101.5TFC—
50TFA—
272.4DAGS—
2DAGS—
264.9TFA—
0AMH20 0437
262.1TFC—
272.4AMH20 0438
272.4MGOCAPPED CONNECTION AT MH 3 O'CLOCK
0MGOCOCKROACHES IN MANHOLE
199.2TFA—
272.4CM—
201.8TFC—
151.4TFC—
103.5TFA—
272.4MGOCOCKROACHES IN MANHOLE
50.6FM—

Properties (6)

additional_info
SC359391
custom_field_two
3
customer
LACSD
datetime
2018-06-12T00:15:09-07:00
documentation
PRO PIPE
is_lateral_inspection
false
