Wastewater/Activity/PacpInspection/1.0Jun 5, 2018, 08:26 AM
05 1682_05 1684 _05062018_014213.mp4
- Date
- 06/05/2018
- W/O
- 701657
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00474
- PipeID
- P06905
- Time
- 1:26 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5688
- Sewer Name
- 05 LOMITA TRUNK RELOCATION
- City
- HARBOR CITY
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- WO_701657_TV05183_MAY2018
- Sewer Type
- Siphon
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 05 1682
- Downstream MH
- 05 1684
- Dir. of Survey
- Downstream
- Length Surveyed
- 154.3 ft.
- Total Length
- 154.3 ft.
- Structural Index
- 3
- Structural Quick
- 3E2E
- Structural Rating
- 150
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 150
Observation photos (3)

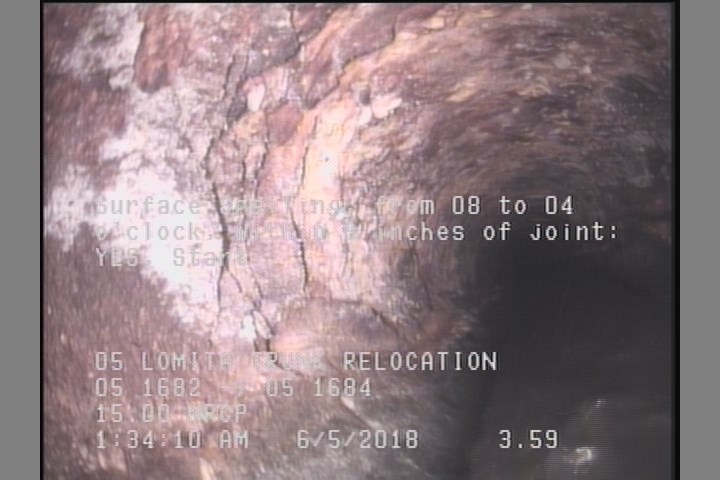

0 ft. - General Observation - CONNECTION AT MH 1 O'CLOCK

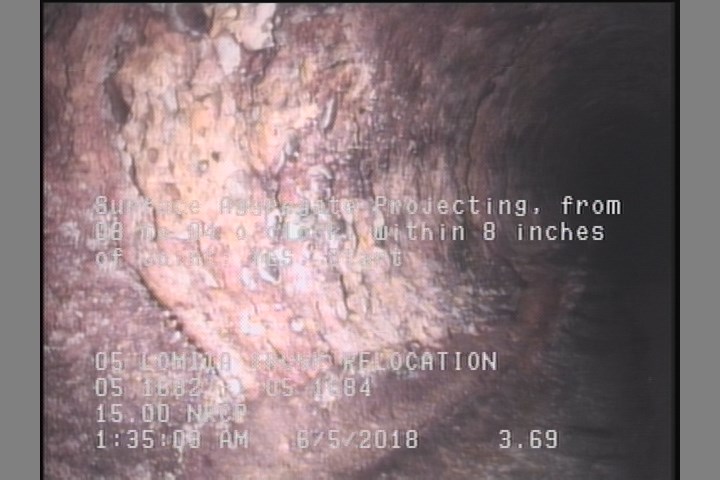

3.7 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

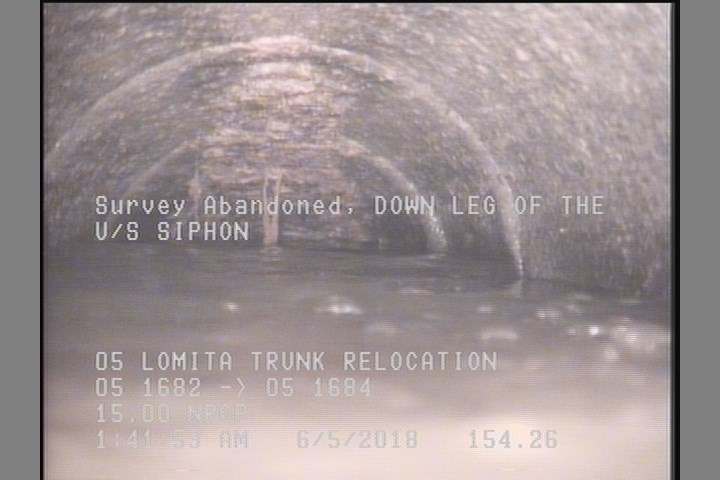

154.3 ft. - Survey Abandoned - DOWN LEG OF THE U/S SIPHON
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 3.7 | SAP | — |
| 3.6 | SSS | — |
| 0 | AMH | 05 1682 |
| 0 | MWM | — |
| 0 | MGO | CONNECTION AT MH 1 O'CLOCK |
| 154.3 | SSS | — |
| 0 | MWL | — |
| 154.3 | MSA | DOWN LEG OF THE U/S SIPHON |
| 154.3 | SAP | — |
Properties (6)
- additional_info
- SC359346
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-06-05T01:26:08-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
