Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 12, 2018, 08:38 AM

  • C 0343_C 0342_7122018_014653.mp4

Date
07/12/2018
W/O
0716531
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00138
PipeID
P09806
Time
1:38 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0932
Sewer Name
C JOINT OUTFALL C - UNIT 7B
City
HAWAIIAN GARDENS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
17
Purpose
Capital Improvement Program Assesment
Project
20180712MDM_JOINT_OUTFALL_C_UNIT_7B
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Upstream MH
C 0343
Downstream MH
C 0342
Dir. of Survey
Downstream
Length Surveyed
701.6 ft.
Total Length
701.6 ft.
Structural Index
2
Structural Quick
3123
Structural Rating
9
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole C 0343 to C 0342
MH: C 0343MH: C 0342downstream0 ft. AMH - Upstream Manhole, Survey Begins - 1:45AM0 ft. MWL - Water Level, 0 %of cross sectional area - NO FLOW0 ft. MWM - Water Mark, 30 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE UNDER MAG COAT8 ft. MGO - General Observation - 99" MAG COAT START 8:00 TO 4:00108 ft. MGO - General Observation - 100% MAG COAT START363.3 ft. SAV - Surface Aggregate Visible, from 12 to 01 o'clock, within 8 inches of joint: NO - SEVERE AGG417.8 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE UNDER MAG COAT604.3 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE604.3 ft. MGO - General Observation - MAG COAT 99% START701.3 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - BLISTERING PEELING CONCRETE701.6 ft. MSA - Survey Abandoned - CABLE PROBLEM WILL COMPLETE REVERSE INSPECTION

Observation photos (6)

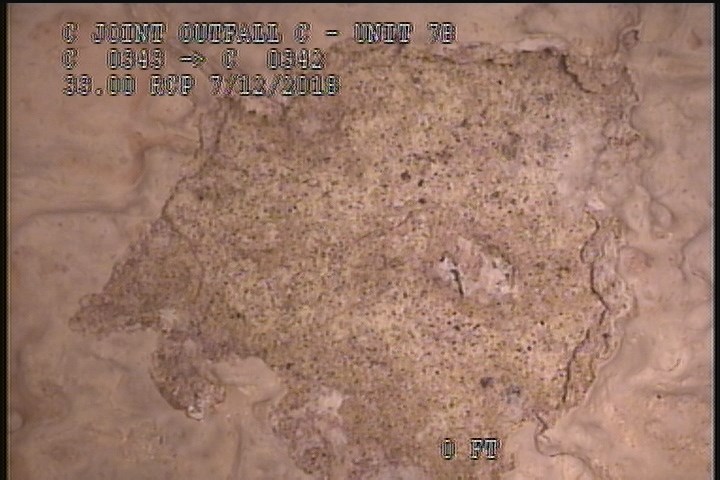

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE UNDER MAG COAT

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE UNDER MAG COAT

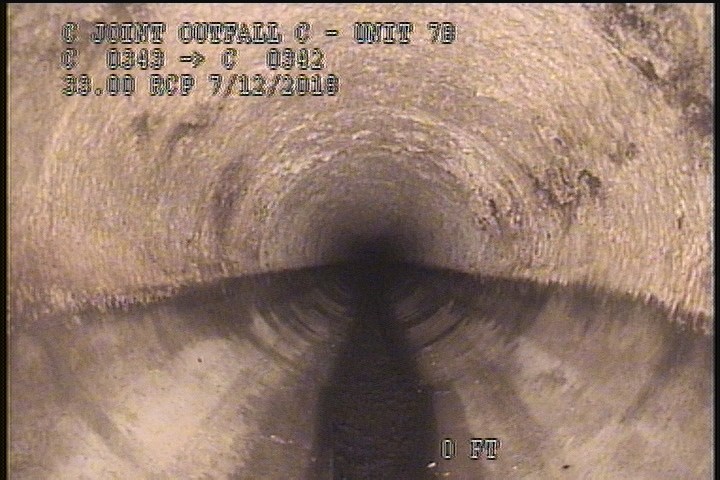

  • General Observation - 99" MAG COAT START 8:00 TO 4:00

    8 ft. - General Observation - 99" MAG COAT START 8:00 TO 4:00

  • General Observation - 100% MAG COAT START

    108 ft. - General Observation - 100% MAG COAT START

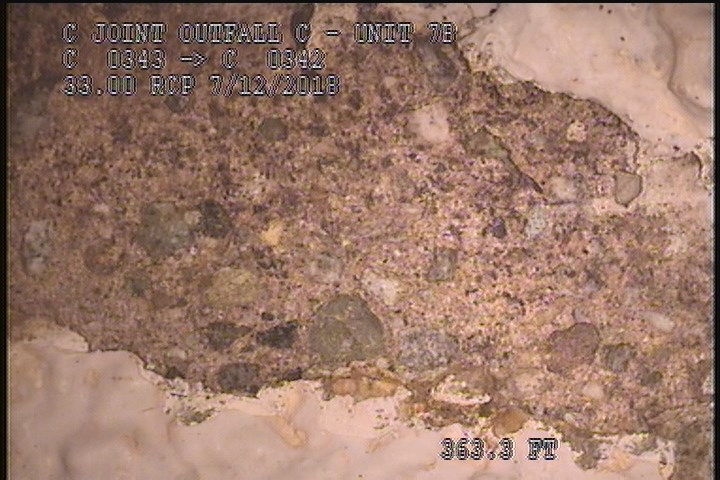

  • Surface Aggregate Visible, from 12 to 01 o'clock, within 8 inches of joint: NO - SEVERE AGG

    363.3 ft. - Surface Aggregate Visible, from 12 to 01 o'clock, within 8 inches of joint: NO - SEVERE AGG

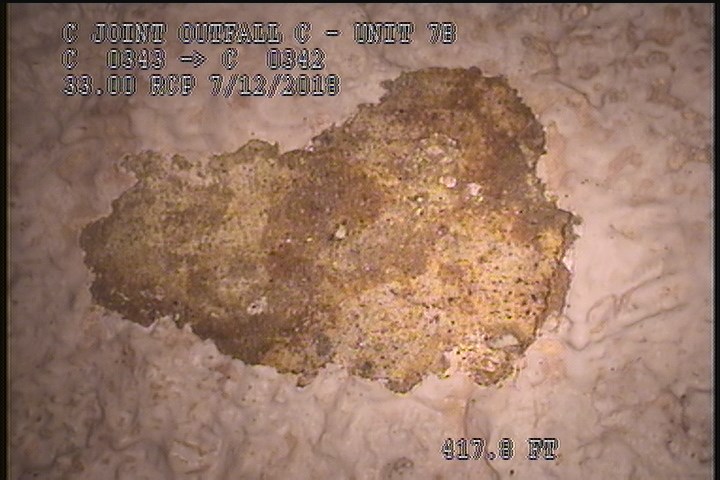

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE UNDER MAG COAT

    417.8 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE UNDER MAG COAT

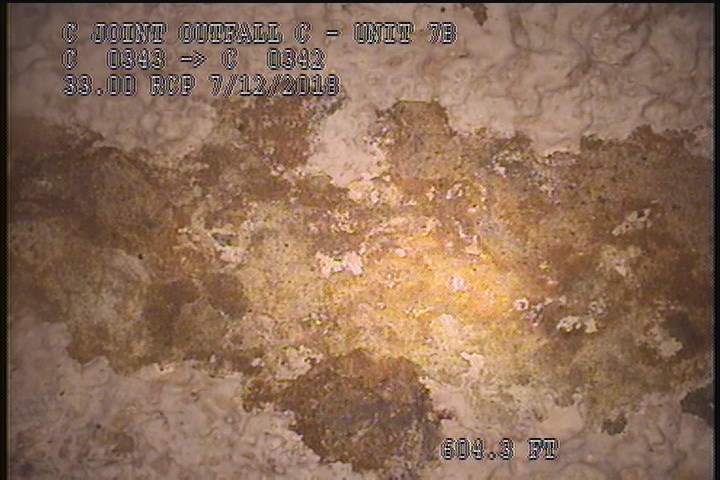

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE

    604.3 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE

All inspections of P09806Work order 0716531

Observations (12)

DistanceCodeObservation
363.3SAVSEVERE AGG
0AMH1:45AM
604.3SSSBLISTERING PEELING CONCRETE
8MGO99" MAG COAT START 8:00 TO 4:00
701.3SSSBLISTERING PEELING CONCRETE
2SSSBLISTERING PEELING CONCRETE UNDER MAG COAT
701.6MSACABLE PROBLEM WILL COMPLETE REVERSE INSPECTION
0MWLNO FLOW
417.8SSSBLISTERING PEELING CONCRETE UNDER MAG COAT
108MGO100% MAG COAT START
604.3MGOMAG COAT 99% START
0MWM—

Properties (6)

custom_field_three
VISIBLE SEVERE AGG -99% MAG COAT
custom_field_two
3
customer
LACSD
datetime
2018-07-12T01:38:55-07:00
documentation
MARTIN,REVELES,OLIVER 111,YOUNG
is_lateral_inspection
false
