Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 10, 2018, 07:40 AM

  • F 0214_F 0213_7102018_010226.mp4

Date
07/10/2018
W/O
0712061
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00048
PipeID
P10344
Time
12:40 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0927
Sewer Name
F JOINT OUTFALL F - UNIT 7F
City
CERRITOS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
38
Purpose
Routine Assessment
Project
20180710MDM_JOINT_OUTFALL_F_UNIT_7F
Material
Reinforced Concrete Pipe
Shape
Circular
Height
31.6299991607666 in.
Upstream MH
F 0214
Downstream MH
F 0213
Dir. of Survey
Downstream
Length Surveyed
693.5 ft.
Total Length
693.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole F 0214 to F 0213
MH: F 0214MH: F 0213downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Ends - 1:05AM0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. MWM - Water Mark, 20 %of cross sectional area8 ft. MGO - General Observation - 31.63 " RCP + CIPP50.9 ft. MWL - Water Level, 5 %of cross sectional area105.1 ft. DSGV - Deposits Settled Gravel, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES199.4 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open295.2 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open368.6 ft. MGO - General Observation - 31.63" RCP-CIPP527.1 ft. MGP - General Photograph - CIPP LINER WRINGLES570.3 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active623.8 ft. MGO - General Observation - 31.63" RCP-CIPP623.8 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open693.5 ft. AMH - Downstream Manhole, Survey Ends - 1:40AM

Observation photos (4)

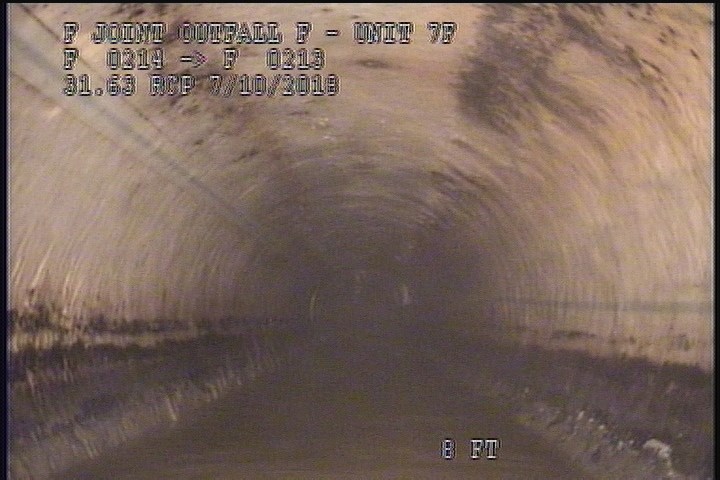

  • General Observation - 31.63 " RCP + CIPP

    8 ft. - General Observation - 31.63 " RCP + CIPP

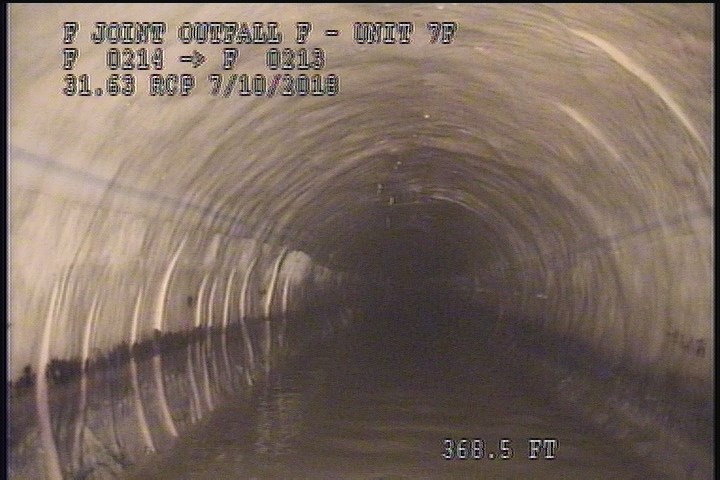

  • General Observation - 31.63" RCP-CIPP

    368.6 ft. - General Observation - 31.63" RCP-CIPP

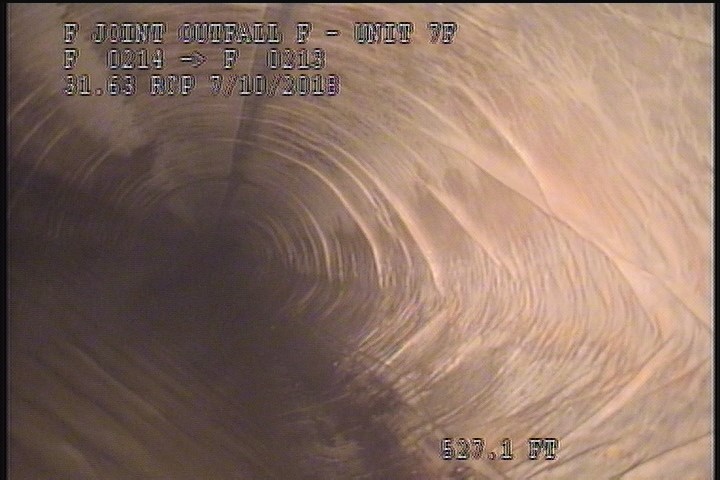

  • General Photograph - CIPP LINER WRINGLES

    527.1 ft. - General Photograph - CIPP LINER WRINGLES

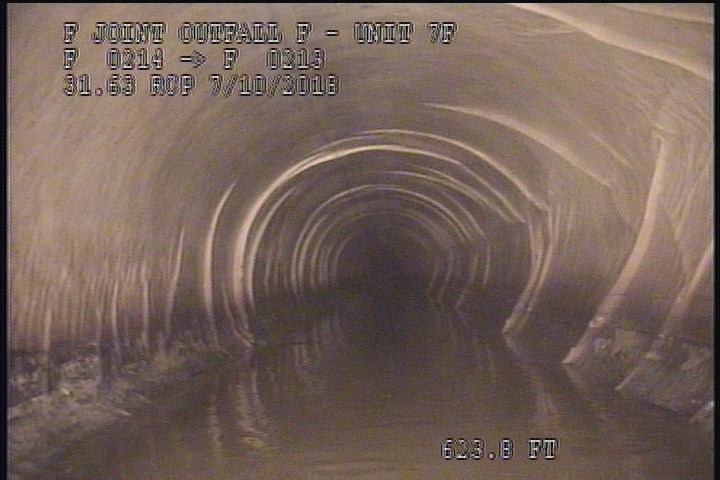

  • General Observation - 31.63" RCP-CIPP

    623.8 ft. - General Observation - 31.63" RCP-CIPP

All inspections of P10344Work order 0712061

Observations (15)

DistanceCodeObservation
295.2TBOpen
8MGO31.63 " RCP + CIPP
527.1MGPCIPP LINER WRINGLES
0MWL—
368.6MGO31.63" RCP-CIPP
693.5AMH1:40AM
623.8MGO31.63" RCP-CIPP
0AMH1:05AM
0MGOConn. @ Mh, 3 O' Clock. Active
199.4TBOpen
570.3TBActive
0MWM—
105.1DSGV—
50.9MWL—
623.8TBOpen

Properties (6)

custom_field_two
4
customer
LACSD
datetime
2018-07-10T00:40:59-07:00
documentation
MARTIN,OLIVER 111,YOUNG
is_lateral_inspection
false
lining
CIPP
