Wastewater/Activity/PacpInspection/1.0Jul 9, 2018, 09:46 AM
Section#2_29 0483_29 0482__792018__ I0030.mp4
- Date
- 07/09/2018
- W/O
- 0711163
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00789
- PipeID
- P24529
- Time
- 2:46 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- I0030
- Sewer Name
- 29 CHERRY AVENUE TRUNK
- City
- LONG BEACH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 01
- Purpose
- Capital Improvement Program Assesment
- Project
- 20180709MDM_CHERRY_AVENUE_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Upstream MH
- 29 0483
- Downstream MH
- 29 0482
- Dir. of Survey
- Downstream
- Length Surveyed
- 175.5 ft.
- Total Length
- 175.5 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (4)

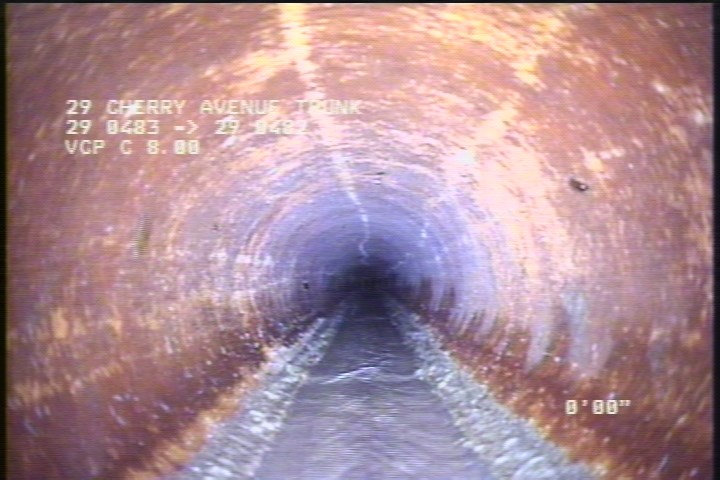

2 ft. - Lining Change, Other (enter details in Field 39) - LINER START

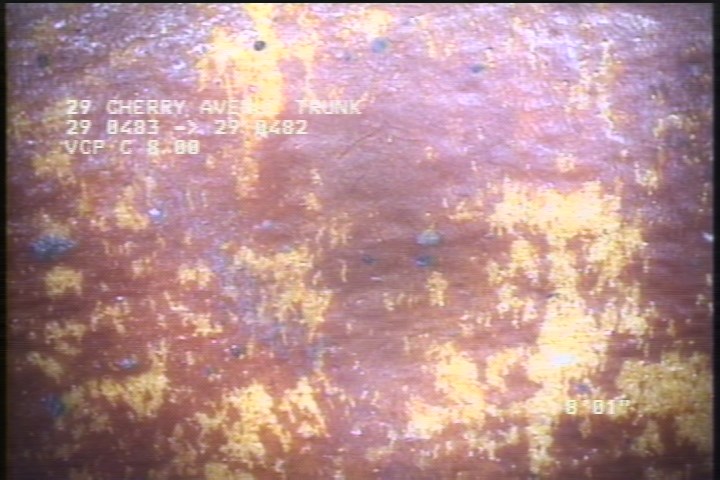

8.1 ft. - General Observation - PIPE LINER

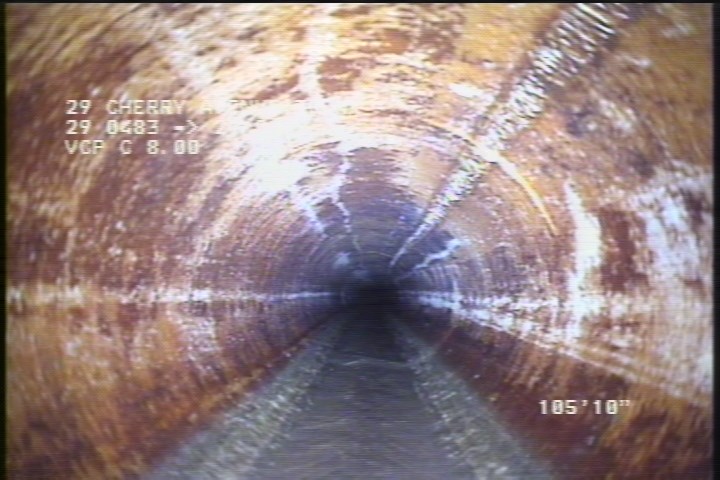

105.8 ft. - General Observation - 8" VCP LINED

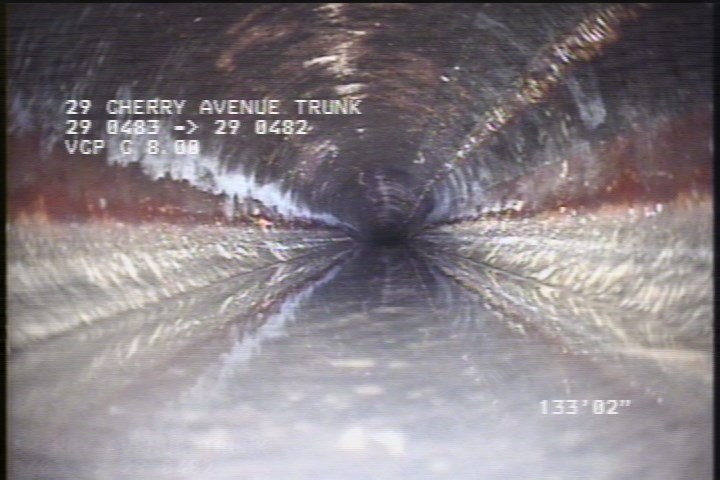

133.2 ft. - Water Level, Sag in pipe, 5 %of cross sectional area
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 2 | MLC | LINER START |
| 175.5 | AMH | 3:20AM |
| 133.2 | MWLS | — |
| 8.1 | MGO | PIPE LINER |
| 0 | AMH | 3:10AM |
| 105.8 | MGO | 8" VCP LINED |
| 0 | MWM | — |
| 0 | MGO | MH CONN 9:00 ACTIVE |
| 0 | MWL | — |
Properties (6)
- custom_field_three
- PIPE IS LINED
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-07-09T02:46:15-07:00
- documentation
- MARTIN,OLIVER 111,YOUNG
- is_lateral_inspection
- false
