Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 25, 2018, 05:11 PM

  • A 0357_A 0356_10252018_101516.mp4

Date
10/25/2018
W/O
0730367
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00325
PipeID
P08267
Time
10:11 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7837
Sewer Name
A JOA-1A SAN JOSE CREEK WRP INTERCEPTOR
City
ROSEMEAD
Loc. details
Railway
Location Code
L
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
15
Purpose
Routine Assessment
Project
20181025DF_JOA_1A_SAN_JOSE_CREEK_WRP_INT
Material
Reinforced Concrete Pipe
Shape
Circular
Height
36 in.
Upstream MH
A 0357
Downstream MH
A 0356
Dir. of Survey
Downstream
Length Surveyed
632.7 ft.
Total Length
632.7 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole A 0357 to A 0356
MH: A 0357MH: A 0356downstream0 ft. AMH - Upstream Manhole, Survey Begins - 10:12 AM0.1 ft. MWM - Water Mark, 5 %of cross sectional area0.1 ft. MWL - Water Level, 0 %of cross sectional area2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65% MAG2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start25 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start130.9 ft. MGP - General Photograph290 ft. MGP - General Photograph424.6 ft. MGP - General Photograph607.2 ft. MGP - General Photograph630 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish630 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish630 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)630 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach630 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 65% MAG632.7 ft. MGO - General Observation - ROACHES @ MH632.7 ft. AMH - Downstream Manhole, Survey Ends - 10:44 AM

Observation photos (8)

  • Water Mark, 5 %of cross sectional area

    0.1 ft. - Water Mark, 5 %of cross sectional area

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65% MAG

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    25 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

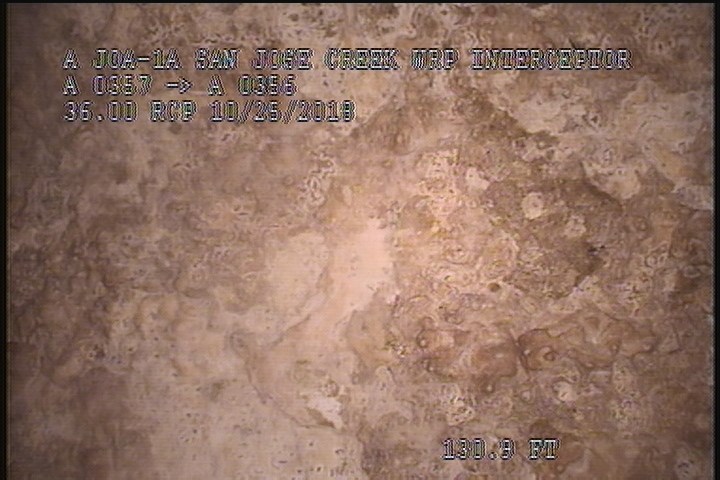

  • General Photograph

    130.9 ft. - General Photograph

  • General Photograph

    290 ft. - General Photograph

  • General Photograph

    424.6 ft. - General Photograph

  • General Photograph

    607.2 ft. - General Photograph

All inspections of P08267Work order 0730367

Observations (17)

DistanceCodeObservation
632.7MGOROACHES @ MH
630SAV—
290MGP—
25SAV—
607.2MGP—
630SSS—
2SZ65% MAG
0AMH10:12 AM
630MGOGREASE THROUGHOUT THE REACH (5%)
0.1MWM—
630MGOPeeling & Flaking Throughout The Reach
630SZ65% MAG
0.1MWL—
632.7AMH10:44 AM
2SSS—
424.6MGP—
130.9MGP—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2018-10-25T10:11:38-07:00
documentation
FRANKLIN, IGNACIO, CASTILLO, RUVALCABA
is_lateral_inspection
false
