Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 6, 2017, 07:52 AM

  • A 0714_A 0713 _06122017_000546.mp4

Date
12/05/2017
W/O
674024
Weather
Dry
Operator/Surveyor
ERUIZ
Sewer ID
Z00316
PipeID
P07923
Time
11:52 PM
Certificate
123456
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5152
Sewer Name
A JOA-1A DISTRICT 21 INTERCEPTOR
City
POMONA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 21
Page No.
14
Purpose
Routine Assessment
Project
WO_674024_TV21041_DEC2017
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Width
33 in.
Upstream MH
A 0714
Downstream MH
A 0713
Dir. of Survey
Downstream
Length Surveyed
208.7 ft.
Total Length
208.7 ft.
Structural Index
3
Structural Quick
513F
Structural Rating
116
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
120
Pipe schematic from manhole A 0714 to A 0713
MH: A 0714MH: A 0713downstream0 ft. AMH - Upstream Manhole, Survey Begins - A 07140 ft. MWL - Water Level, 55 %of cross sectional area0 ft. MWM - Water Mark, 55 %of cross sectional area10 ft. MGO - General Observation - MAGNESIUM COATING START19.7 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start37 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES204.6 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish208.7 ft. AMH - Downstream Manhole, Survey Ends - A 0713

Observation photos (1)

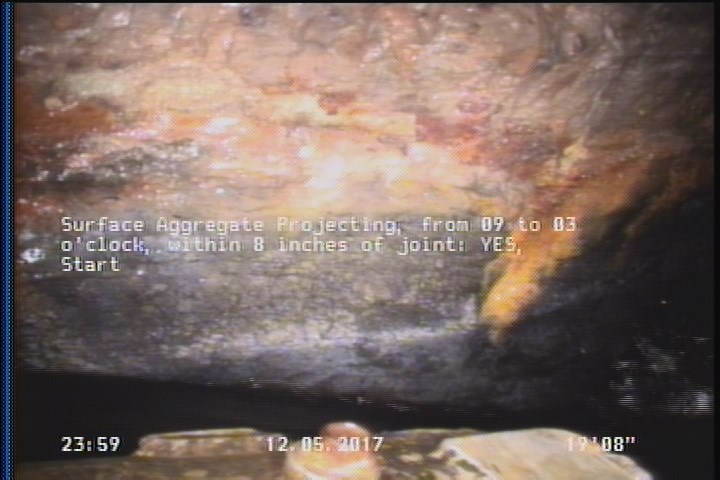

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    19.7 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P07923Work order 674024

Observations (8)

DistanceCodeObservation
19.7SAP—
204.6SAP—
0AMHA 0714
208.7AMHA 0713
37SRV—
0MWL—
0MWM—
10MGOMAGNESIUM COATING START

Properties (6)

custom_field_two
2
customer
LACSD
datetime
2017-12-05T23:52:24-08:00
documentation
PROPIPE
is_lateral_inspection
false
year_laid
26232
