Wastewater/Activity/PacpInspection/1.0Dec 1, 2017, 08:42 AM
02 1616_02 1277_01122017_004254.mp4
- Date
- 12/01/2017
- W/O
- 673943
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00238
- PipeID
- P03792
- Time
- 12:42 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5256
- Sewer Name
- 02 BELVEDERE TRUNK
- City
- LOS ANGELES
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_673943_TV02329_DEC2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 02 1616
- Downstream MH
- 02 1277
- Dir. of Survey
- Downstream
- Length Surveyed
- 249.5 ft.
- Total Length
- 249.5 ft.
- Structural Index
- 3
- Structural Quick
- 3H21
- Structural Rating
- 137
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 137
Observation photos (2)

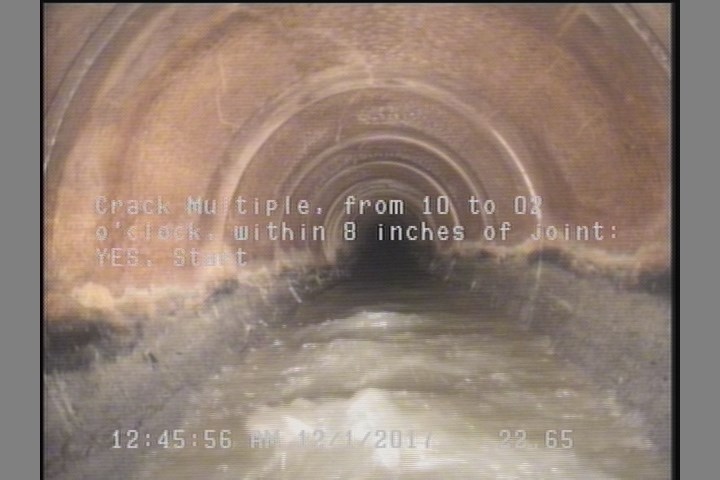

22.7 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

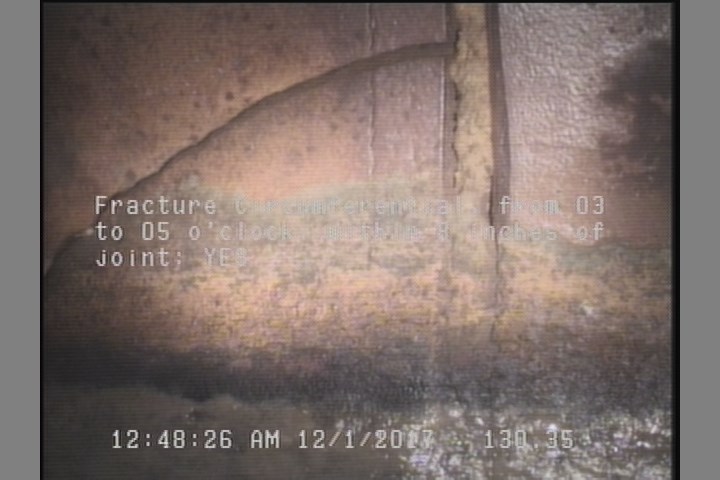

130.4 ft. - Fracture Circumferential, from 03 to 05 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 249.5 | CM | — |
| 249.5 | AMH | 02 1277 |
| 0 | MWL | — |
| 67.7 | TF | — |
| 22.7 | CM | — |
| 130.4 | FC | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | MWM | — |
| 0 | AMH | 02 1616 |
Properties (6)
- additional_info
- SC346285
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-12-01T00:42:12-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
