Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 11, 2018, 09:49 AM

  • 22 0456_22 0455_1112018_050341.mp4

Date
01/11/2018
W/O
0682841
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00816
PipeID
P16794
Time
1:49 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0724
Sewer Name
22 LARK ELLEN TRUNK, SECTS 4,5,&6
City
IRWINDALE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
19
Purpose
Capital Improvement Program Assesment
Project
20180110MDM_LARK_ELLEN_TRUNK_SECTS_4_5_6
Material
NRCP
Shape
Circular
Height
18 in.
Upstream MH
22 0456
Downstream MH
22 0455
Dir. of Survey
Downstream
Length Surveyed
260.9 ft.
Total Length
260.9 ft.
Structural Index
3
Structural Quick
4221
Structural Rating
10
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole 22 0456 to 22 0455
MH: 22 0456MH: 22 0455downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:00AM0 ft. MGO - General Observation - MH CONN 9:00 ACTIVE2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELING CONCRETE SEVERE AGG ATTACHED2 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG2 ft. MGO - General Observation - MAG COAT 30% START 9:00 TO 3:0059.8 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Open89.4 ft. MGO - General Observation - MAG COAT 60% START232.8 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: NO - SEVERE AGG260.4 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG260.4 ft. MGO - General Observation - MH CONN 9:00 ACTIVE260.4 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - PEELING CONCRETE SEVERE AGG ATTACHED260.4 ft. MGO - General Observation - MAG COAT 60% FINISH260.9 ft. AMH - Downstream Manhole, Survey Ends - 5:20AM

Observation photos (5)

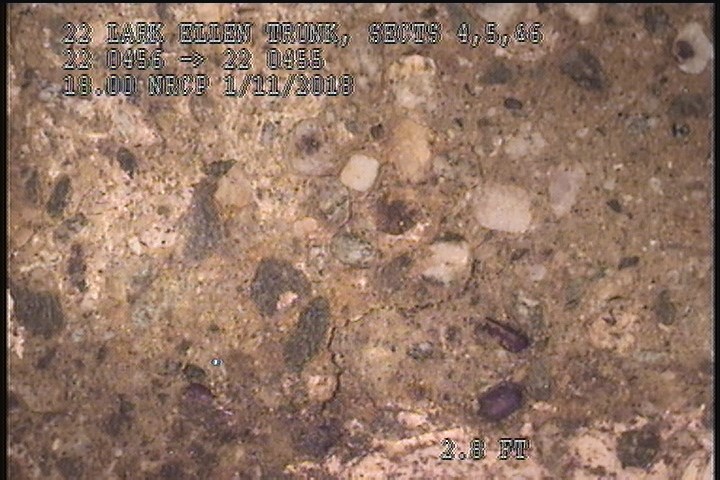

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELING CONCRETE SEVERE AGG ATTACHED

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELING CONCRETE SEVERE AGG ATTACHED

  • Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

    2 ft. - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

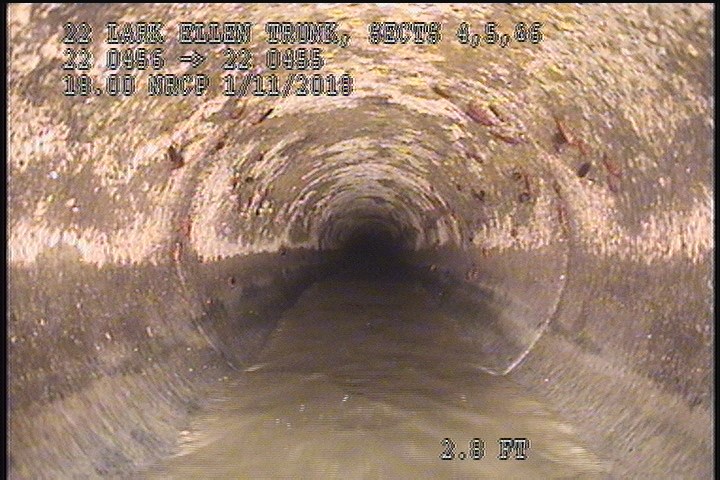

  • General Observation - MAG COAT 30% START 9:00 TO 3:00

    2 ft. - General Observation - MAG COAT 30% START 9:00 TO 3:00

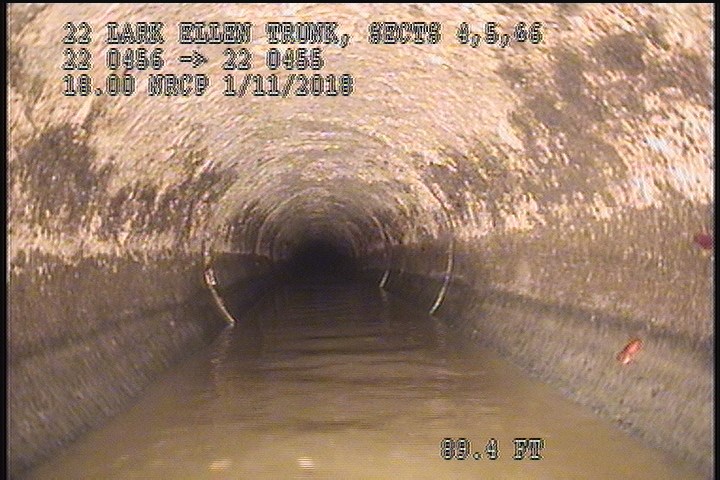

  • General Observation - MAG COAT 60% START

    89.4 ft. - General Observation - MAG COAT 60% START

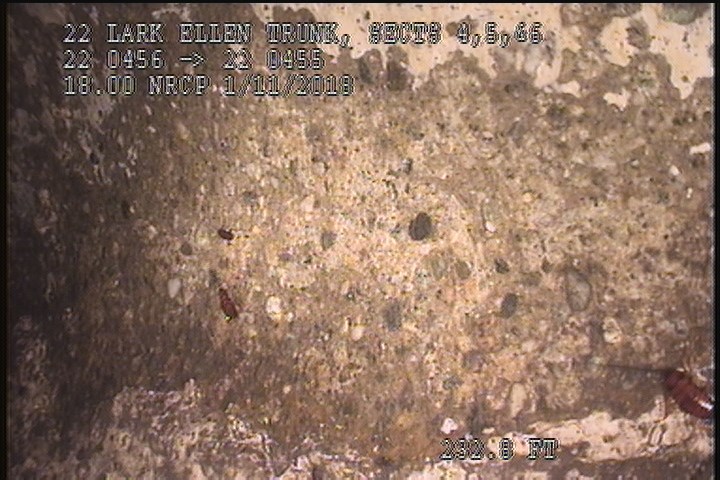

  • Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: NO - SEVERE AGG

    232.8 ft. - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: NO - SEVERE AGG

All inspections of P16794Work order 0682841

Observations (15)

DistanceCodeObservation
260.4SAMSEVERE AGG
89.4MGOMAG COAT 60% START
260.4MGOMH CONN 9:00 ACTIVE
260.9AMH5:20AM
260.4SSSPEELING CONCRETE SEVERE AGG ATTACHED
59.8TFOpen
0MWL—
2SSSPEELING CONCRETE SEVERE AGG ATTACHED
0MWM—
2SAMSEVERE AGG
260.4MGOMAG COAT 60% FINISH
2MGOMAG COAT 30% START 9:00 TO 3:00
0AMH5:00AM
232.8SAMSEVERE AGG
0MGOMH CONN 9:00 ACTIVE

Properties (6)

custom_field_three
PEELING CONCRETE SEVERE AGG ATTACHED
custom_field_two
2
customer
LACSD
datetime
2018-01-11T01:49:39-08:00
documentation
MARTIN,MANANES,REVELES
is_lateral_inspection
false
