Wastewater/Activity/PacpInspection/1.0Jan 9, 2018, 05:02 PM
18 0427_18 0426_192018_102017.mp4
- Date
- 01/09/2018
- W/O
- PENDING
- Weather
- Heavy Rain
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00675
- PipeID
- P14275
- Time
- 9:02 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7599
- Sewer Name
- 18 FLORENCE AVENUE TRUNK
- City
- SANTE FE SPRINGS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- 20180109DF_FLORENCE_AVE_TR
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- 18 0427
- Downstream MH
- 18 0426
- Dir. of Survey
- Downstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (6)

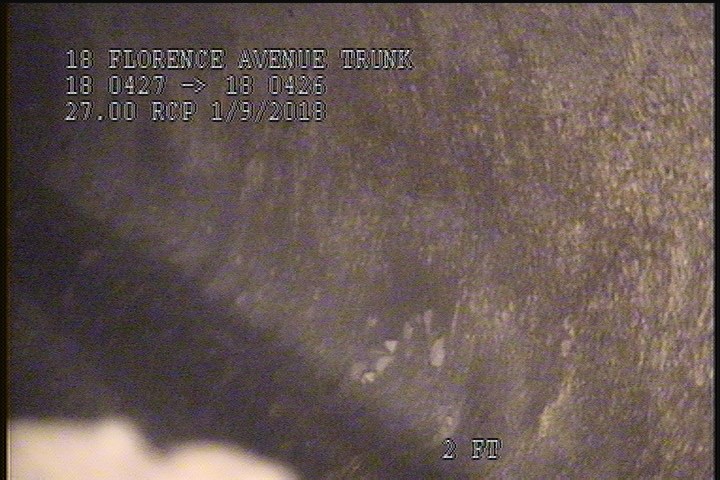

0 ft. - Upstream Manhole, Survey Begins - 10:15 AM

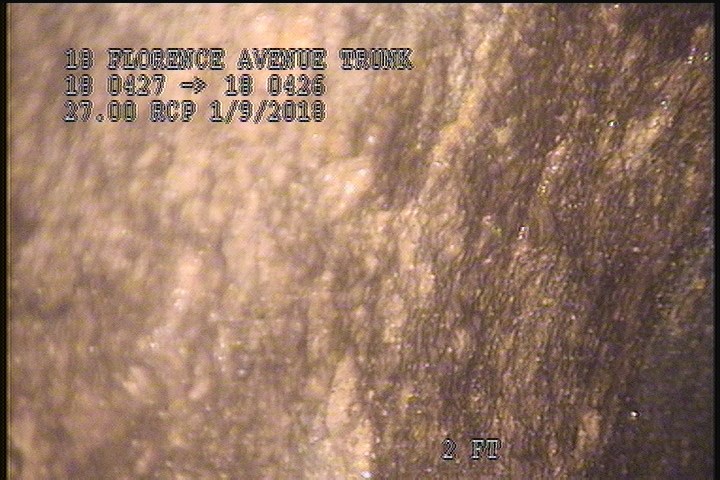

0.1 ft. - General Observation - ROACHES @ MH

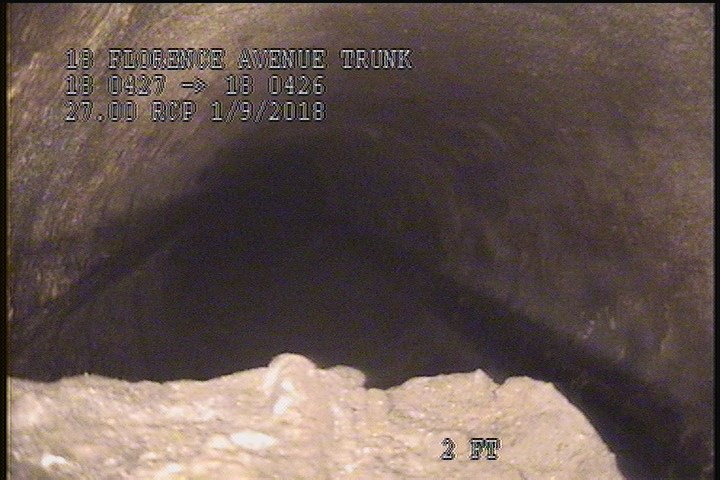

0.1 ft. - Water Mark, 30 %of cross sectional area

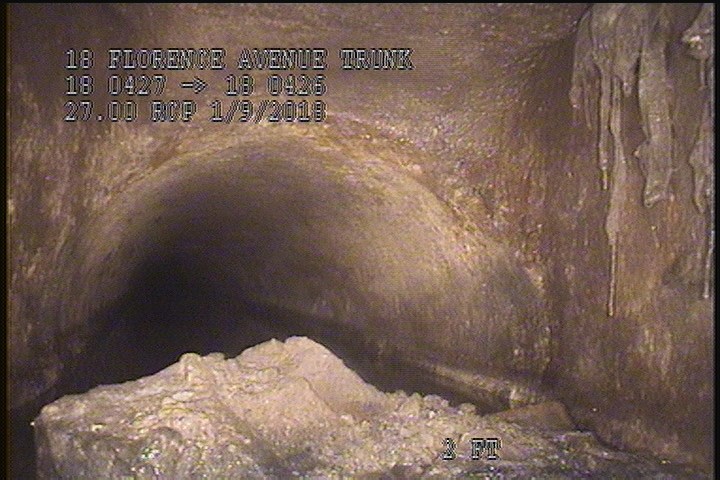

0.1 ft. - Water Level, 25 %of cross sectional area

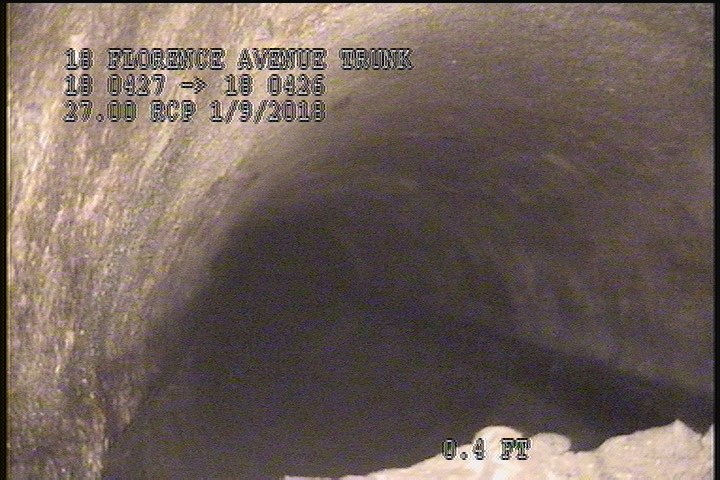

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

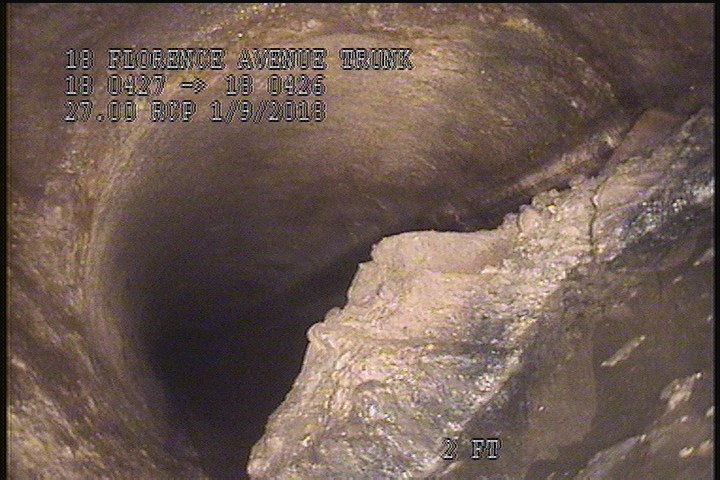

2 ft. - General Photograph - OBSTRUCTION @ MH
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0.1 | MGO | ROACHES @ MH |
| 0 | AMH | 10:15 AM |
| 0.1 | MWM | — |
| 2.1 | MSA | OBSTRUCTION |
| 2 | SSS | — |
| 2 | MGP | OBSTRUCTION @ MH |
| 0.1 | MWL | — |
Properties (5)
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2018-01-09T09:02:49-08:00
- documentation
- FRANKLIN, IGNACIO, VENDRYES
- is_lateral_inspection
- false
