Wastewater/Activity/PacpInspection/1.0Jan 8, 2018, 10:36 AM
Section#19_05 0300_05 0299__182018__G6909.mp4
- Date
- 01/08/2018
- W/O
- 0682842
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00498
- PipeID
- P05508
- Time
- 2:36 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6909
- Sewer Name
- 05 OAK STREET-CENTER AVENUE TRUNK
- City
- INGLEWOOD
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 09
- Purpose
- Capital Improvement Program Assesment
- Project
- 20180105MDM_OAK_STREET_CENTER_AVENUE_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 22 in.
- Upstream MH
- 05 0300
- Downstream MH
- 05 0299
- Dir. of Survey
- Downstream
- Length Surveyed
- 329.7 ft.
- Total Length
- 329.7 ft.
- Structural Index
- 3
- Structural Quick
- 3M21
- Structural Rating
- 206
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 210
Observation photos (7)

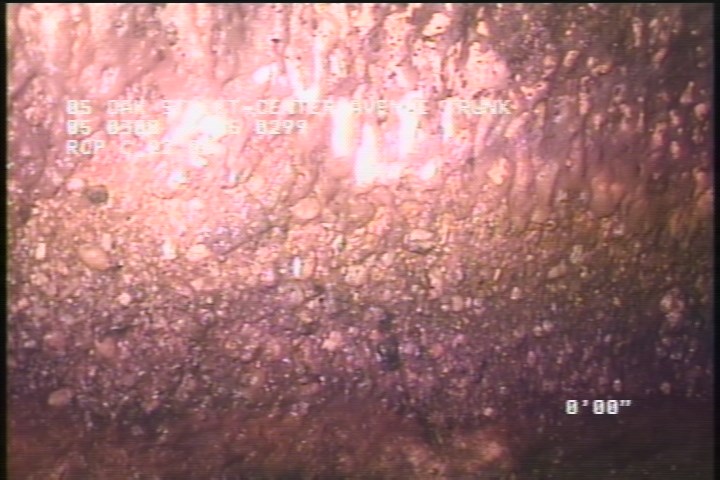

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG
2 ft. - General Observation - MAG COAT80% 9:00 TO 3:00

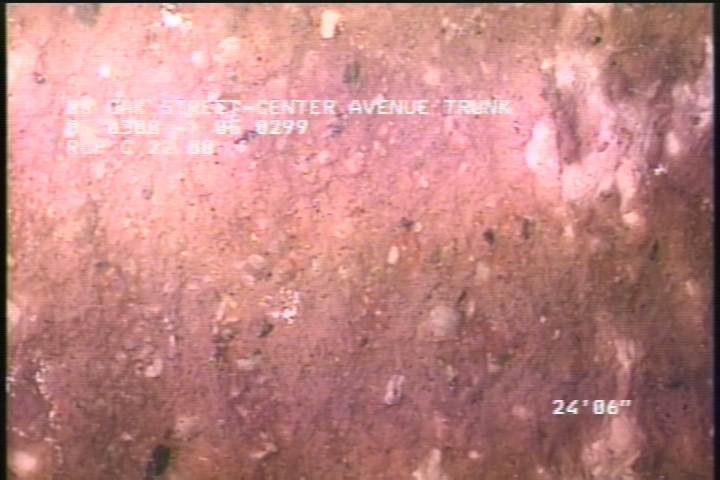

24.5 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: NO - SEVERE AGG UNDER MAG COAT

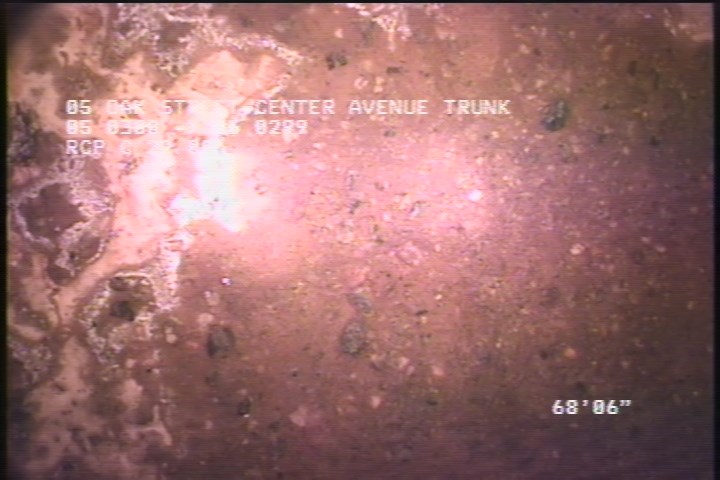

68.5 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO - PRJECTING SEVERE AGG

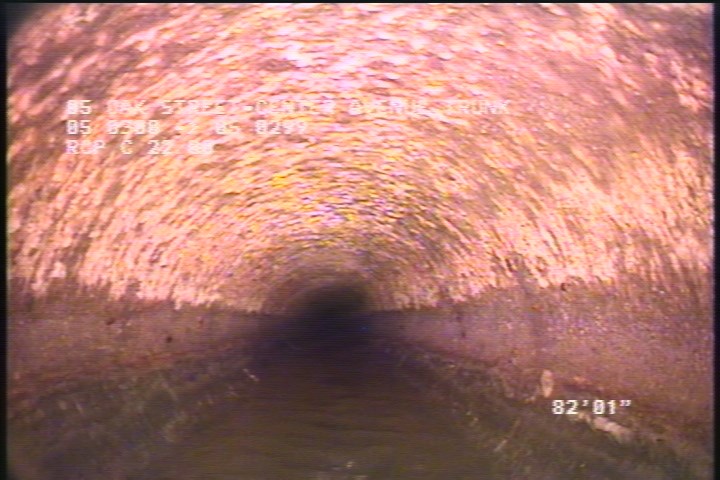

82.1 ft. - Water Mark, 60 %of cross sectional area

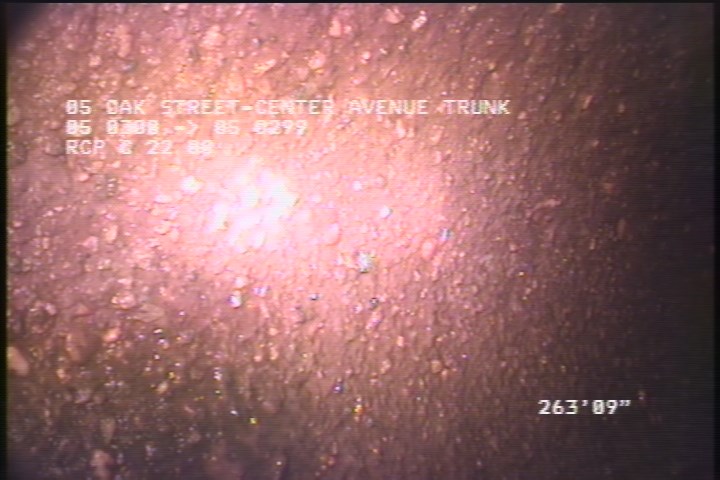

263.8 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG

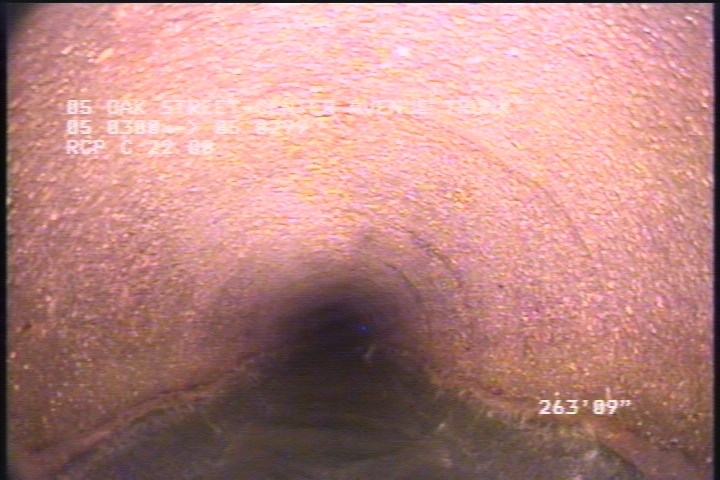

263.8 ft. - General Observation - MAG COAT 80% FINISH
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 68.5 | SAP | PRJECTING SEVERE AGG |
| 329.7 | AMH | 3:25AM |
| 329 | SAP | SEVERE AGG |
| 82.1 | MWM | — |
| 2 | SSS | BLISTERING PEELING CONCRETE |
| 263.8 | SAP | SEVERE AGG |
| 0 | AMH | 2:55AM |
| 2 | SAP | SEVERE AGG |
| 263.8 | MGO | MAG COAT 80% FINISH |
| 0 | MWM | — |
| 0 | MGO | MH CONN 9:00 ACTIVE |
| 263.8 | MWM | — |
| 0 | MWL | — |
| 2 | MGO | MAG COAT80% 9:00 TO 3:00 |
| 24.5 | SAP | SEVERE AGG UNDER MAG COAT |
| 0 | MGO | MH CONN 3:00 ACTIVE |
Properties (6)
- custom_field_three
- SEVERE AGG PROJECTING
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-01-08T02:36:49-08:00
- documentation
- MARTIN,MANANEM,REVELES,OLIVER 111
- is_lateral_inspection
- false
