Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 8, 2018, 10:40 AM

  • Section#20_05 0299_05 0298__182018__G6909.mp4

Date
01/08/2018
W/O
0682842
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00498
PipeID
P05507
Time
2:40 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6909
Sewer Name
05 OAK STREET-CENTER AVENUE TRUNK
City
INGLEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
09
Purpose
Capital Improvement Program Assesment
Project
20180105MDM_OAK_STREET_CENTER_AVENUE_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
22 in.
Upstream MH
05 0299
Downstream MH
05 0298
Dir. of Survey
Downstream
Length Surveyed
325.5 ft.
Total Length
325.5 ft.
Structural Index
3
Structural Quick
3M2L
Structural Rating
346
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
346
Pipe schematic from manhole 05 0299 to 05 0298
MH: 05 0299MH: 05 0298downstream0 ft. AMH - Upstream Manhole, Survey Begins - 3:35AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. MGO - General Observation - MAG COAT 40% START 8:00 TO 4:002 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG2.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING CONCRETE28.6 ft. MGO - General Observation - MAG COAT 40% FINISH28.6 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES - SEVERE AGG73.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT90.9 ft. MGO - General Observation - MAG COAT 90% START 9:00 TO 3:00191 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG224 ft. MGO - General Observation - MAG COAT 30% START262.5 ft. MGO - General Observation - MAG COAT 80% START293.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT307.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT324.7 ft. MGO - General Observation - MH CONN 3:00 ACTIVE325.1 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - BLISTERING CONCRETE325.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG325.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES325.5 ft. AMH - Downstream Manhole, Survey Ends - 4:05AM

Observation photos (7)

  • General Observation - MAG COAT 40% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 40% START 8:00 TO 4:00

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

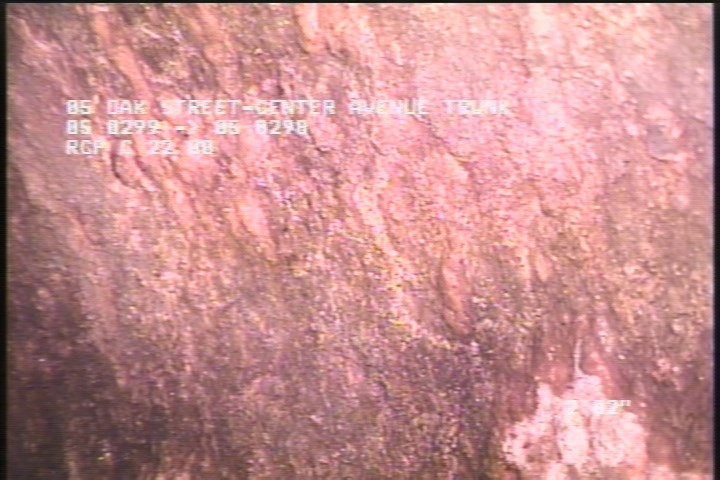

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING CONCRETE

    2.2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING CONCRETE

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES - SEVERE AGG

    28.6 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES - SEVERE AGG

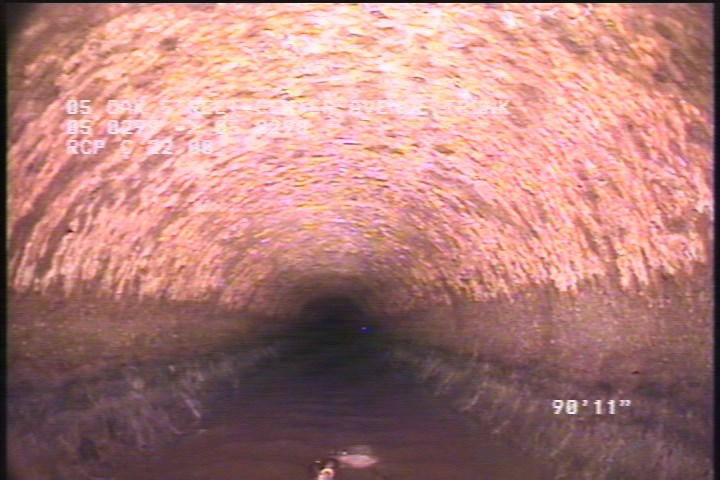

  • General Observation - MAG COAT 90% START 9:00 TO 3:00

    90.9 ft. - General Observation - MAG COAT 90% START 9:00 TO 3:00

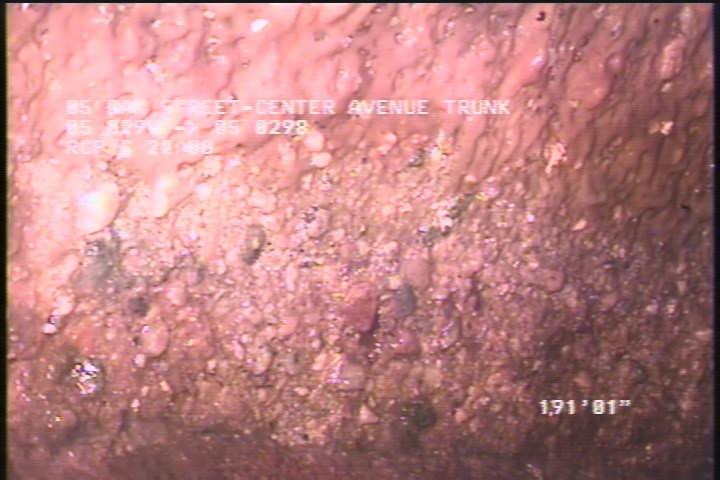

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG

    191 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG

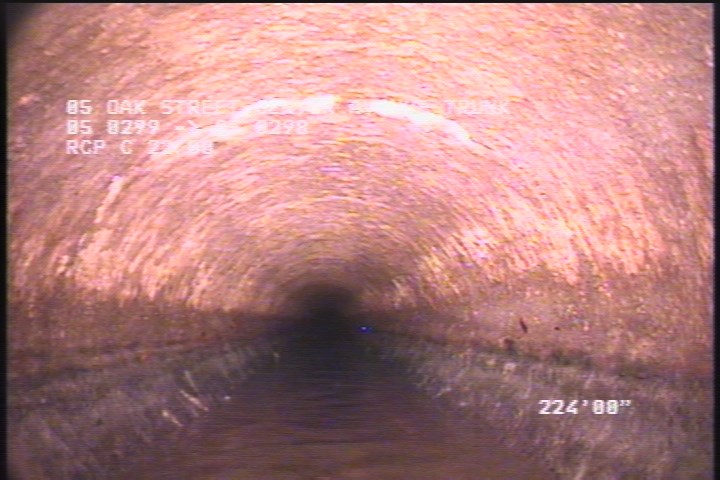

  • General Observation - MAG COAT 30% START

    224 ft. - General Observation - MAG COAT 30% START

All inspections of P05507Work order 0682842

Observations (20)

DistanceCodeObservation
2MGOMAG COAT 40% START 8:00 TO 4:00
0AMH3:35AM
2.2SSSBLISTERING CONCRETE
28.6MGOMAG COAT 40% FINISH
325.5AMH4:05AM
325.1SSSBLISTERING CONCRETE
293.1FLSLIGHT
0MWM—
191SAPSEVERE AGG
28.6SAPSEVERE AGG
73.2FLSLIGHT
324.7MGOMH CONN 3:00 ACTIVE
90.9MGOMAG COAT 90% START 9:00 TO 3:00
262.5MGOMAG COAT 80% START
307.9FLSLIGHT
325.1SAPSEVERE AGG
0MWL—
2SAPSEVERE AGG
224MGOMAG COAT 30% START
325.1SAP—

Properties (6)

custom_field_three
SEVERE AGG PROJECTING
custom_field_two
3
customer
LACSD
datetime
2018-01-08T02:40:06-08:00
documentation
MARTIN,MANANEM,REVELES,OLIVER 111
is_lateral_inspection
false
