Wastewater/Activity/PacpInspection/1.0Jan 6, 2018, 12:13 PM
Section#13_05 0393_05 0280__162018__G6907.mp4
- Date
- 01/06/2018
- W/O
- 0682489
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00498
- PipeID
- P05488
- Time
- 4:13 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6907
- Sewer Name
- 05 OAK STREET-CENTER AVENUE TRUNK
- City
- INGLEWOOD
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 10
- Purpose
- Capital Improvement Program Assesment
- Project
- 20180105MDM_OAK_STREET_CENTER_AVENUE_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- 05 0393
- Downstream MH
- 05 0280
- Dir. of Survey
- Downstream
- Length Surveyed
- 316.7 ft.
- Total Length
- 316.7 ft.
- Structural Index
- 3
- Structural Quick
- 3L2L
- Structural Rating
- 323
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 323
Observation photos (6)

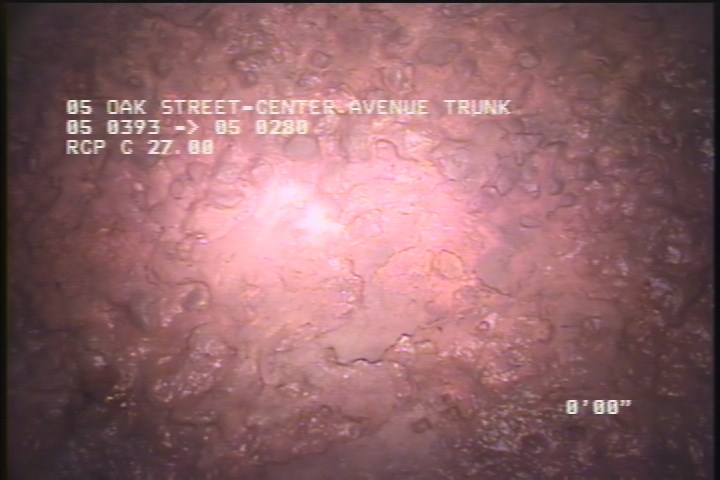

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING CONCRETE

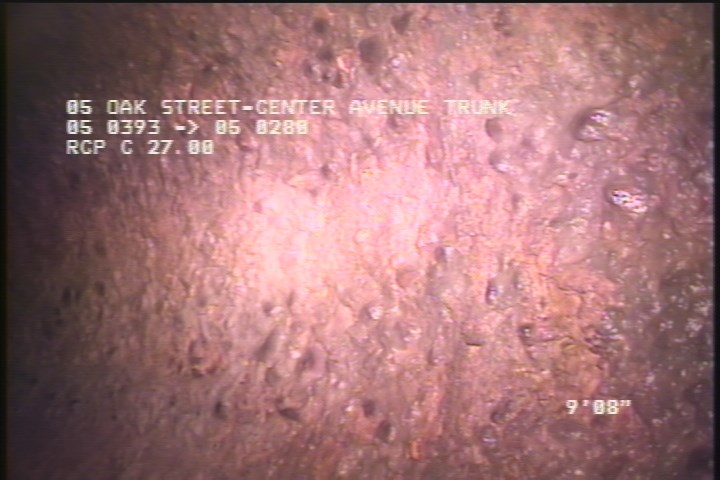

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

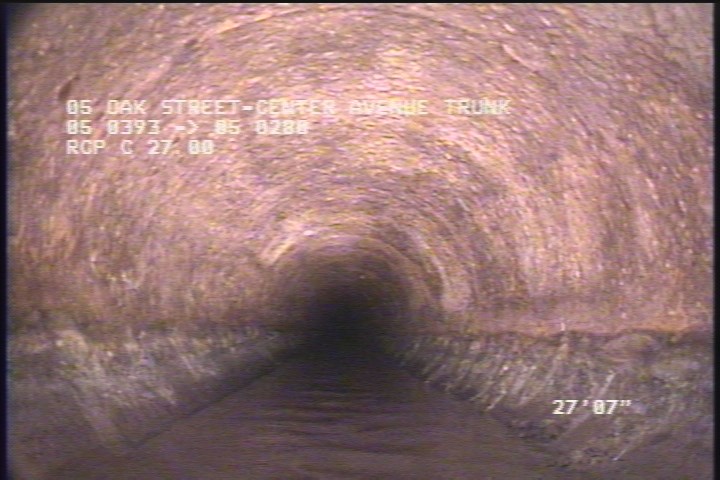

27.6 ft. - General Observation - 27" RCP

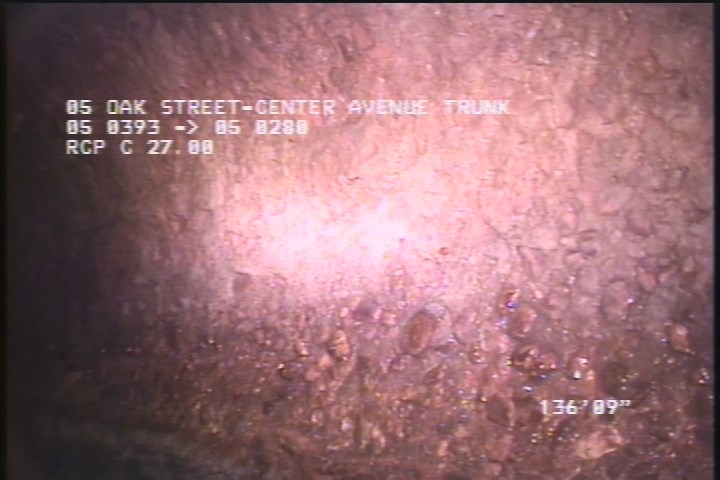

136.7 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG

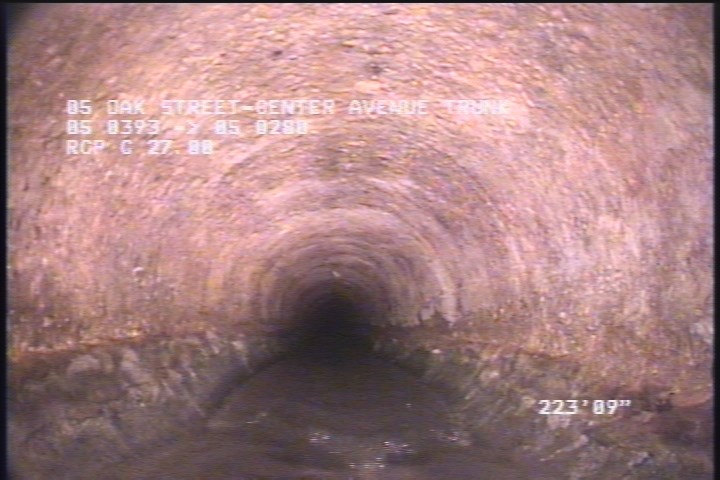

223.7 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG

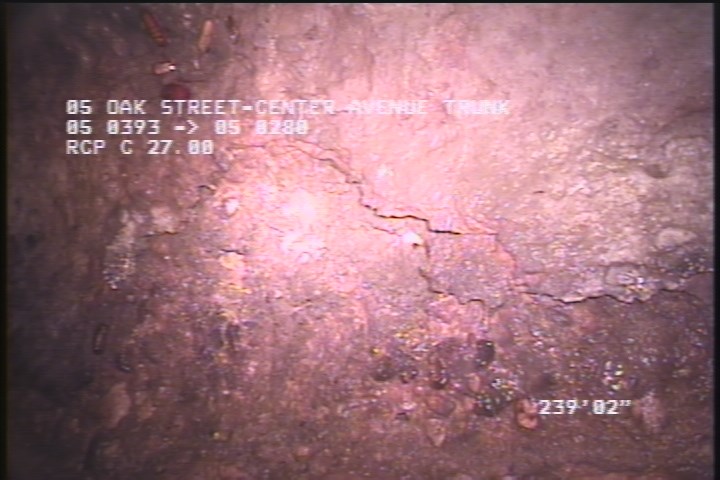

239.2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - SWOLLEN BLISTERING CONCRETE
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | MH CONN 3:00 ACTIVE INCOMING |
| 316.3 | SSS | BLISTERING CONCRETE |
| 136.7 | SAP | SEVERE AGG |
| 27.6 | MGO | 27" RCP |
| 0 | AMH | 5:25AM |
| 0 | MWM | — |
| 0 | MWL | — |
| 316.7 | AMH | 5:50AM |
| 2 | SSS | BLISTERING CONCRETE |
| 239.2 | SSS | SWOLLEN BLISTERING CONCRETE |
| 223.7 | SAP | SEVERE AGG |
| 2 | SAP | SEVERE AGG |
| 316.3 | MGO | MH CONN 9:00 ACTIVE |
| 316.3 | MGO | MH CONN 3:00 ACTIVE |
| 0 | MGO | MH CONN 9:00 OUTGOING |
| 316.3 | SAP | SEVERE AGG |
Properties (6)
- custom_field_three
- SEVERE AGG PROJECTING
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-01-06T04:13:42-08:00
- documentation
- MARTIN,MANANEM,REVELES,OLIVER 111
- is_lateral_inspection
- false
