Wastewater/Activity/PacpInspection/1.0Apr 18, 2018, 09:34 AM
03 0477_03 0426_18042018_030655.mp4
- Date
- 04/18/2018
- W/O
- 696293
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00391
- PipeID
- P05270
- Time
- 2:34 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5536
- Sewer Name
- 03 PICO AVENUE TRUNK
- City
- LONG BEACH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 22
- Purpose
- Routine Assessment
- Project
- WO_696293_TV03032_APR2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 42 in.
- Width
- 42 in.
- Upstream MH
- 03 0477
- Downstream MH
- 03 0426
- Dir. of Survey
- Downstream
- Length Surveyed
- 56.7 ft.
- Total Length
- 56.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 3A00
- O&M Rating
- 33
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 33
Observation photos (2)

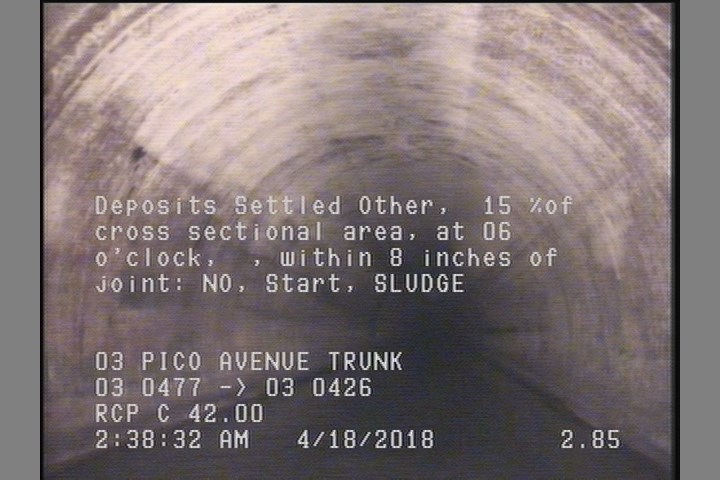

2.9 ft. - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO, Start - SLUDGE

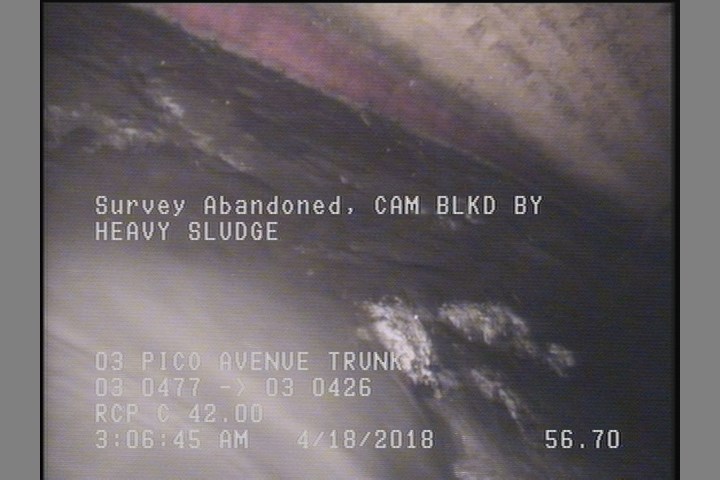

56.7 ft. - Survey Abandoned - CAM BLKD BY HEAVY SLUDGE
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 56.7 | DSZ | — |
| 56.7 | MSA | CAM BLKD BY HEAVY SLUDGE |
| 2.9 | DSZ | SLUDGE |
| 0 | MWL | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | AMH | 03 0477 |
Properties (7)
- additional_info
- SC358744
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2018-04-18T02:34:20-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
- lining
- FR POLY LINE
