Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 29, 2018, 11:52 AM

  • 29 0195_29 0194 _29012018_041608.mp4

Date
01/29/2018
W/O
684976
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z01025
PipeID
P24093
Time
3:52 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5425
Sewer Name
29 28TH STREET SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
02
Purpose
Routine Assessment
Project
WO_684976_TV29048_FEB2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0194
Downstream MH
29 0195
Dir. of Survey
Upstream
Length Surveyed
285 ft.
Total Length
285 ft.
Structural Index
3
Structural Quick
3221
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 29 0194 to 29 0195
MH: 29 0194MH: 29 0195upstream0 ft. AMH - Upstream Manhole, Survey Ends - 29 01954 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"6.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"54.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"57.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"93.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"101.4 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES105.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"107.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"136.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish153.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"155.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"203.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"207.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"225.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"255.8 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"266.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start270.5 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES283 ft. MGO - General Observation - SPALLING FROM 8 TO 4 O'CLOCK @ 2' MARK TO 283 '285 ft. AMH - Downstream Manhole, Survey Begins - 29 0194285 ft. MWL - Water Level, 5 %of cross sectional area285 ft. MWM - Water Mark, 5 %of cross sectional area

Observation photos (3)

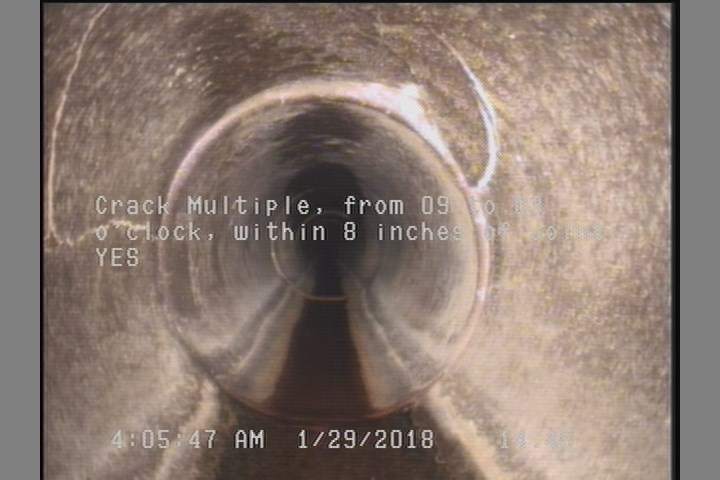

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    14.5 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

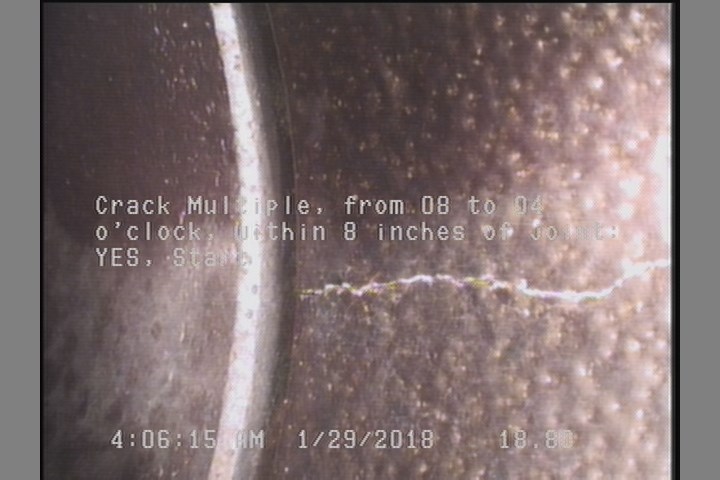

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    18.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

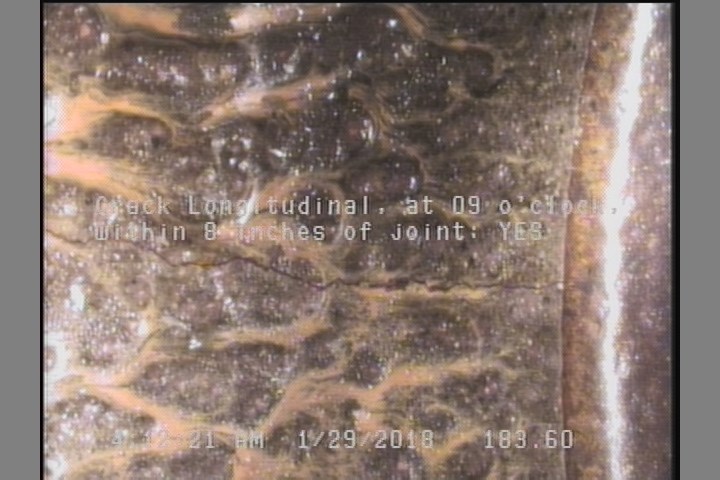

  • Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

    183.6 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

All inspections of P24093Work order 684976

Observations (22)

DistanceCodeObservation
77.3TF—
14.5CM—
0AMH29 0194
177.2TFC—
148.7CM—
227.5TFC—
191.6TF—
230.2TFC—
29.2TFC—
81.3TFC—
281TF—
2MGOSPALLING FROM 8 TO 4 O'CLOCK @ 2' MARK TO 283 '
129.5TFC—
179.8TFC—
18.8CM—
278.4TF—
131.8TF—
0MWL—
59.8TF—
0MWM—
285AMH29 0195
183.6CL—

Properties (6)

additional_info
SC347060
custom_field_two
3
customer
LACSD
datetime
2018-01-29T03:52:28-08:00
documentation
PROPIPE
is_lateral_inspection
false
