Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 26, 2018, 09:10 AM

  • 29 0187_29 0186 _26012018_012539.mp4

Date
01/26/2018
W/O
684976
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z01025
PipeID
P24084
Time
1:10 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5423
Sewer Name
29 28TH STREET SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
02
Purpose
Routine Assessment
Project
WO_684976_TV29048_FEB2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0187
Downstream MH
29 0186
Dir. of Survey
Downstream
Length Surveyed
342 ft.
Total Length
342 ft.
Structural Index
4
Structural Quick
5121
Structural Rating
7
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole 29 0187 to 29 0186
MH: 29 0187MH: 29 0186downstream0 ft. MWL - Water Level, 5 %of cross sectional area - SPALLING FROM 8 TO 4 O'CLOCK@ 2' MARK TO 341'0 ft. MWM - Water Mark, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 29 018729 ft. B - Broken, from 05 to 08 o'clock, within 8 inches of joint: NO29.4 ft. FC - Fracture Circumferential, from 05 to 08 o'clock, within 8 inches of joint: YES46.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"77 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"79.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"128.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"131.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"179.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"182.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"205 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"233.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"256.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"267.1 ft. TS - Tap Saddle, at 02 o'clock, -, within 8 inches of joint: NO, 6"279.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"307.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"330.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"342 ft. AMH - Downstream Manhole, Survey Ends - 29 0186

Observation photos (2)

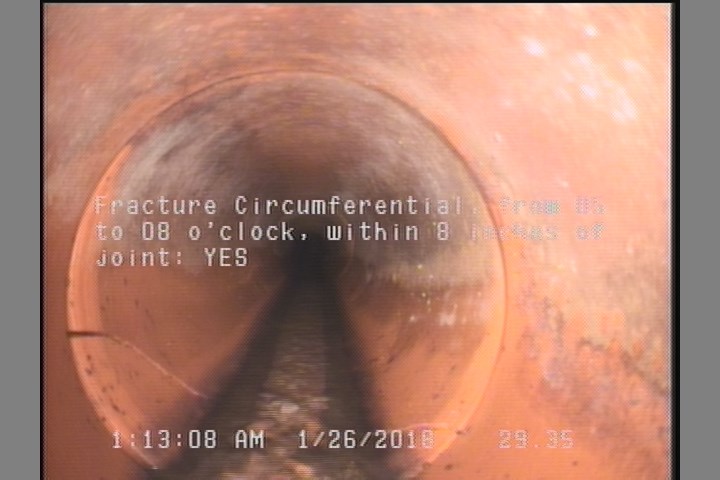

  • Fracture Circumferential, from 05 to 08 o'clock, within 8 inches of joint: YES

    29.4 ft. - Fracture Circumferential, from 05 to 08 o'clock, within 8 inches of joint: YES

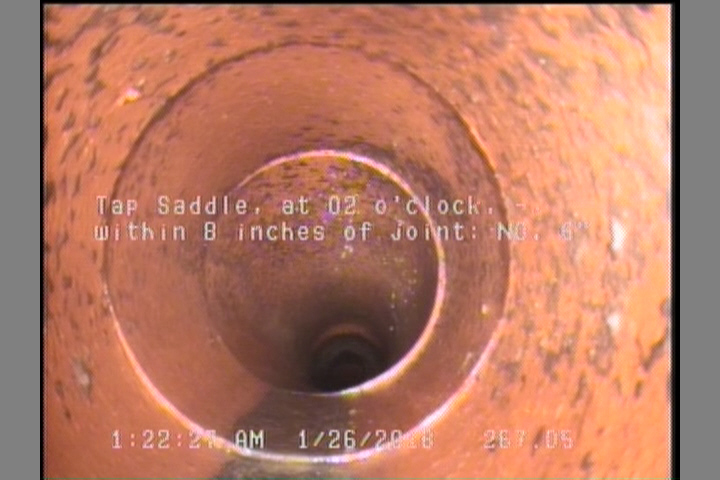

  • Tap Saddle, at 02 o'clock, -, within 8 inches of joint: NO, 6"

    267.1 ft. - Tap Saddle, at 02 o'clock, -, within 8 inches of joint: NO, 6"

All inspections of P24084Work order 684976

Observations (20)

DistanceCodeObservation
131.1TFC—
279.5TFC—
179.7TFC—
342AMH29 0186
267.1TS—
77TFC—
182.7TFC—
128.7TF—
79.9TF—
330.6TFC—
29B—
233.2TFC—
0MWLSPALLING FROM 8 TO 4 O'CLOCK@ 2' MARK TO 341'
29.4FC—
46.2TF—
0MWM—
0AMH29 0187
256.3TFC—
307.5TFC—
205TFC—

Properties (6)

additional_info
SC347058
custom_field_two
1
customer
LACSD
datetime
2018-01-26T01:10:31-08:00
documentation
PROPIPE
is_lateral_inspection
false
