Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 30, 2016, 09:17 AM

  • 01 0693_01 0692_30092016_020314.mp4

Date
09/30/2016
W/O
591536
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00199
PipeID
P01402
Time
2:17 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3596
Sewer Name
01 CALIFORNIA AVENUE EXTENSION TRUNK
City
SOUTH GATE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
11
Purpose
Routine Assessment
Project
WO_591536_TV01117_SEP2016
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Width
33 in.
Upstream MH
01 0693
Downstream MH
01 0692
Dir. of Survey
Downstream
Length Surveyed
444.9 ft.
Total Length
444.9 ft.
Structural Index
4
Structural Quick
5F3P
Structural Rating
435
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
435
Pipe schematic from manhole 01 0693 to 01 0692
MH: 01 0693MH: 01 0692downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 06934.4 ft. MGO - General Observation - MAG COAT 60%17.9 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO, Start262.7 ft. SRV - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: NO, Start441.2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish441.2 ft. SRV - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: NO, Finish444.9 ft. AMH - Downstream Manhole, Survey Ends - 01 0693

Observation photos (2)

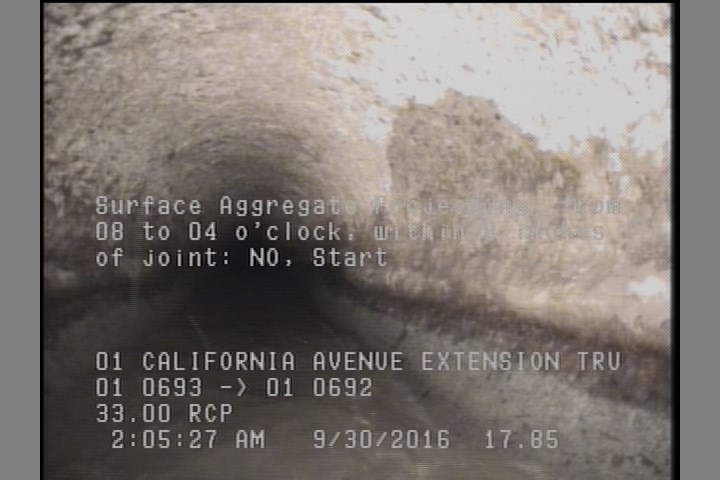

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    17.9 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

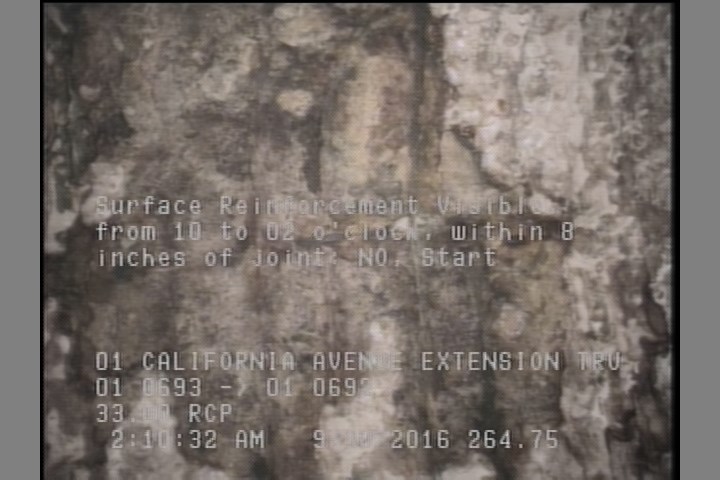

  • Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: NO, Start

    262.7 ft. - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: NO, Start

All inspections of P01402Work order 591536

Observations (9)

DistanceCodeObservation
441.2SAP—
4.4MGOMAG COAT 60%
0MWM—
262.7SRV—
444.9AMH01 0693
0MWL—
441.2SRV—
17.9SAP—
0AMH01 0693

Properties (6)

additional_info
SC306191
custom_field_two
2
customer
LACSD
datetime
2016-09-30T02:17:26-07:00
documentation
PROPIPE
is_lateral_inspection
false
