Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 9, 2018, 06:00 PM

  • B 1087_B 1086_592018_113301.mp4

Date
05/09/2018
W/O
PENDING
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00923
PipeID
P23252
Time
11:00 AM
Certificate
U-4106024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7706
Sewer Name
B JOINT OUTFALL B - UNIT 1C REPLACEMENT
City
PICO RIVERA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
19
Purpose
Routine Assessment
Project
20180509DF_JOINT_OUTFALL_B_UNIT1C_REPLACEMENT
Material
RGRCP-PTL
Shape
Circular
Height
72 in.
Upstream MH
B 1087
Downstream MH
B 1086
Dir. of Survey
Downstream
Length Surveyed
64 ft.
Total Length
64 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole B 1087 to B 1086
MH: B 1087MH: B 1086downstream0 ft. AMH - Upstream Manhole, Survey Begins - 11:31 AM0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. MWM - Water Mark, 35 %of cross sectional area41.3 ft. MGO - General Observation - Grease Throughout The Reach (5%)46.3 ft. MGP - General Photograph63.8 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. OPEN64 ft. AMH - Downstream Manhole, Survey Ends - 11:43 AM

Observation photos (5)

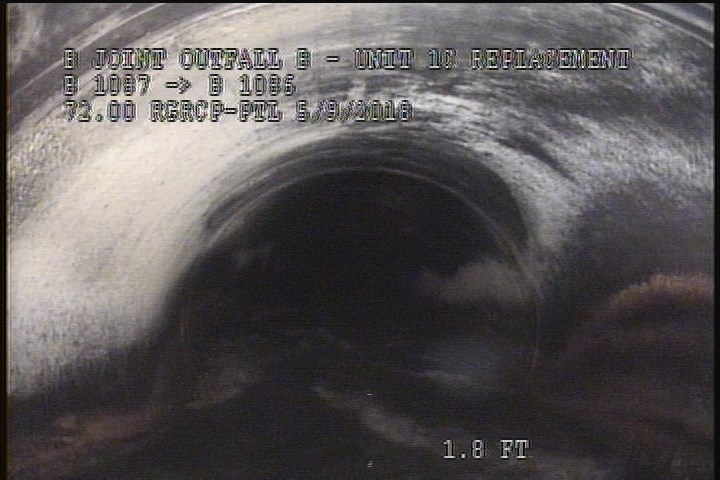

  • Upstream Manhole, Survey Begins - 11:31 AM

    0 ft. - Upstream Manhole, Survey Begins - 11:31 AM

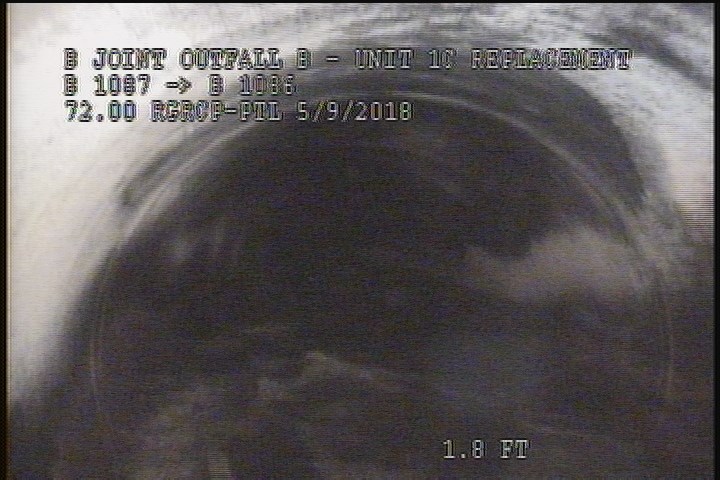

  • Water Level, 30 %of cross sectional area

    0 ft. - Water Level, 30 %of cross sectional area

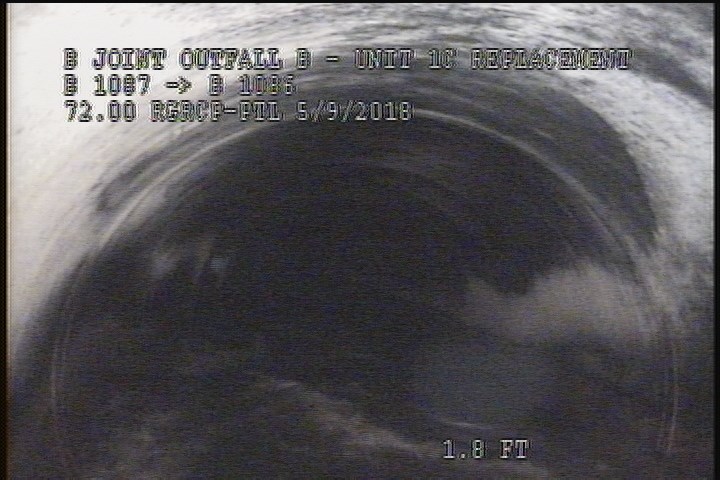

  • Water Mark, 35 %of cross sectional area

    0 ft. - Water Mark, 35 %of cross sectional area

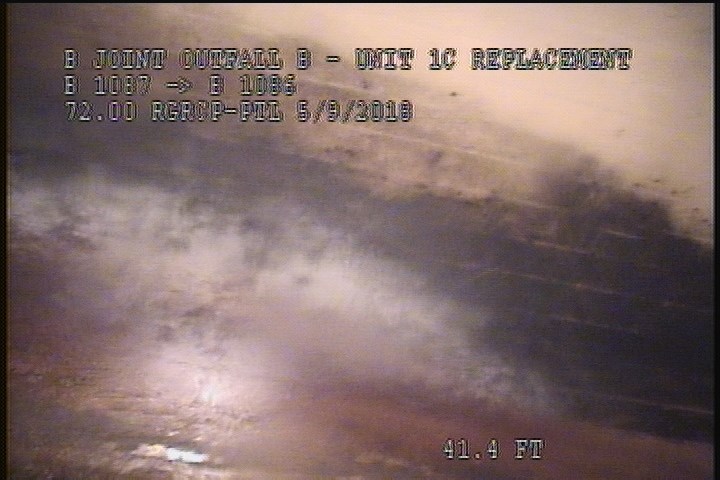

  • General Observation - Grease Throughout The Reach (5%)

    41.3 ft. - General Observation - Grease Throughout The Reach (5%)

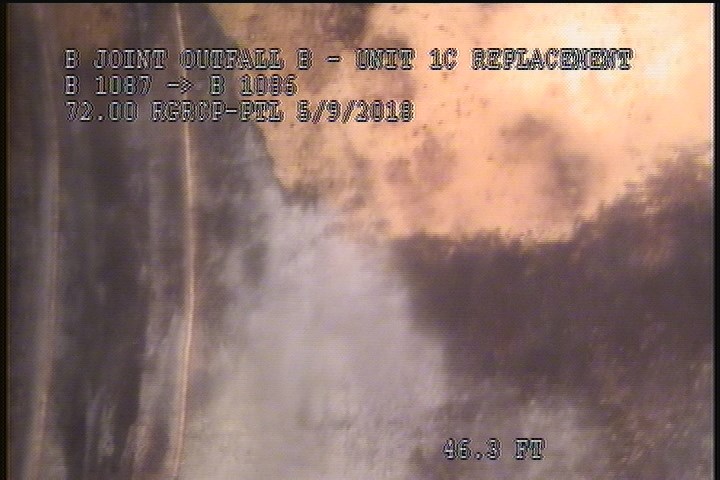

  • General Photograph

    46.3 ft. - General Photograph

All inspections of P23252Work order PENDING

Observations (7)

DistanceCodeObservation
0AMH11:31 AM
63.8MGOConn. @ Mh, 9 O' Clock. OPEN
0MWL—
41.3MGOGrease Throughout The Reach (5%)
46.3MGP—
0MWM—
64AMH11:43 AM

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2018-05-09T11:00:03-07:00
documentation
FRANKLIN, IGNACIO, SHADLER
is_lateral_inspection
false
