Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 9, 2018, 04:28 PM

  • B 1089_B 1088_592018_101716.mp4

Date
05/09/2018
W/O
PENDING
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00923
PipeID
P23253
Time
9:28 AM
Certificate
U-4106024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7706
Sewer Name
B JOINT OUTFALL B - UNIT 1C REPLACEMENT
City
PICO RIVERA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
19
Purpose
Routine Assessment
Project
20180509DF_JOINT_OUTFALL_B_UNIT1C_REPLACEMENT
Material
RGRCP-PTL
Shape
Circular
Height
72 in.
Upstream MH
B 1089
Downstream MH
B 1088
Dir. of Survey
Downstream
Length Surveyed
153.6 ft.
Total Length
153.6 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole B 1089 to B 1088
MH: B 1089MH: B 1088downstream0 ft. AMH - Upstream Manhole, Survey Begins - 9:50 AM0.1 ft. MWL - Water Level, 30 %of cross sectional area0.1 ft. MWM - Water Mark, 35 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start104.4 ft. MGP - General Photograph149.4 ft. MGP - General Photograph149.4 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish149.4 ft. MGP - General Photograph153.6 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active153.6 ft. AMH - Downstream Manhole, Survey Ends - 10:27 AM

Observation photos (7)

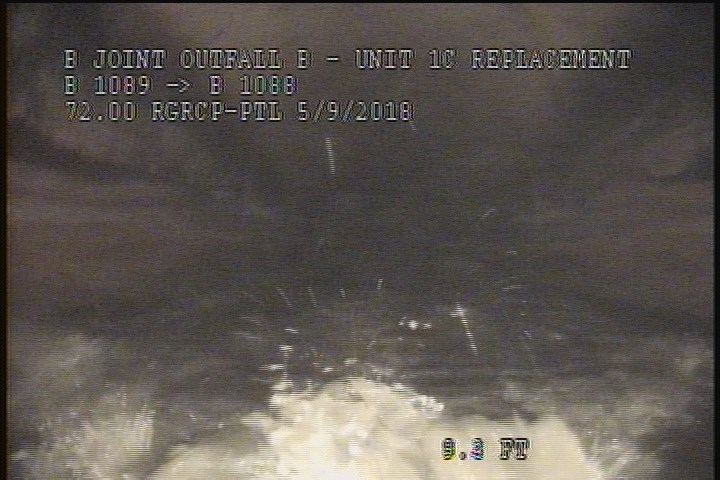

  • Upstream Manhole, Survey Begins - 9:50 AM

    0 ft. - Upstream Manhole, Survey Begins - 9:50 AM

  • Water Level, 30 %of cross sectional area

    0.1 ft. - Water Level, 30 %of cross sectional area

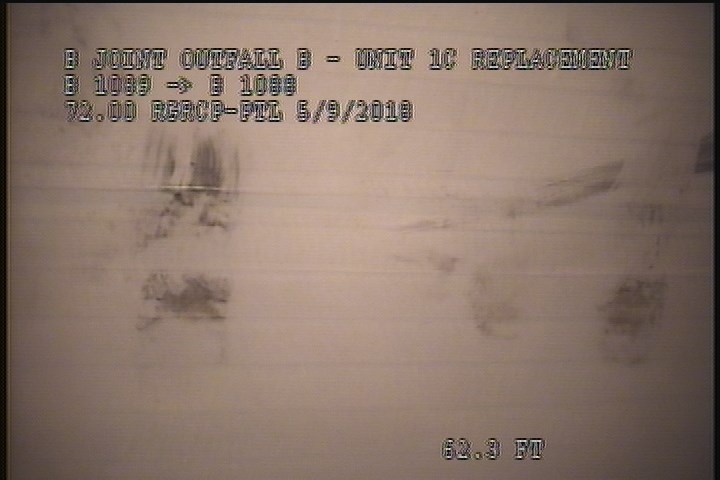

  • Water Mark, 35 %of cross sectional area

    0.1 ft. - Water Mark, 35 %of cross sectional area

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

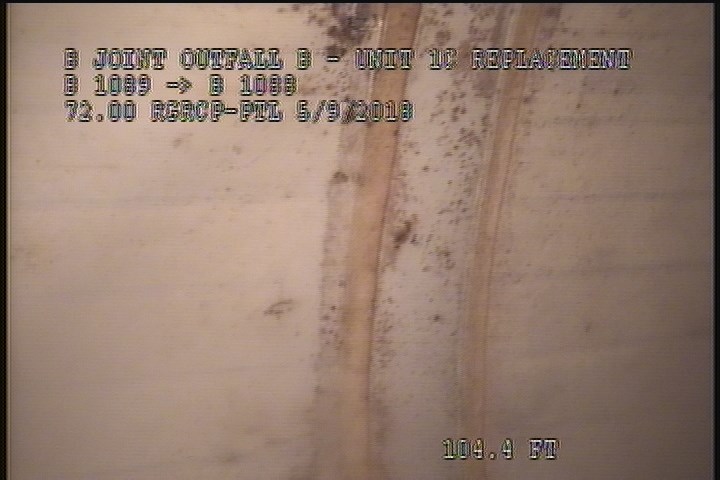

  • General Photograph

    104.4 ft. - General Photograph

  • General Photograph

    149.4 ft. - General Photograph

  • General Photograph

    149.4 ft. - General Photograph

All inspections of P23253Work order PENDING

Observations (10)

DistanceCodeObservation
0.1MWL—
0AMH9:50 AM
149.4MGP—
149.4SSS—
104.4MGP—
153.6MGOConn. @ Mh, 3 O' Clock. Active
0.1MWM—
149.4MGP—
153.6AMH10:27 AM
2SSS—

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2018-05-09T09:28:23-07:00
documentation
FRANKLIN, IGNACIO, SHADLER
is_lateral_inspection
false
