Wastewater/Activity/PacpInspection/1.0May 8, 2018, 07:58 PM
05 2235_05 2234_582018_131355.mp4
- Date
- 05/08/2018
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00429
- PipeID
- P20008
- Time
- 12:58 PM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Heavy Cleaning
- Media Label
- G7705
- Sewer Name
- 05 COLDEN AVENUE TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- 20180508DF_COLDEN_AVENUE_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 05 2234
- Downstream MH
- 05 2235
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 5
- O&M Quick
- 5141
- O&M Rating
- 9
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (6)

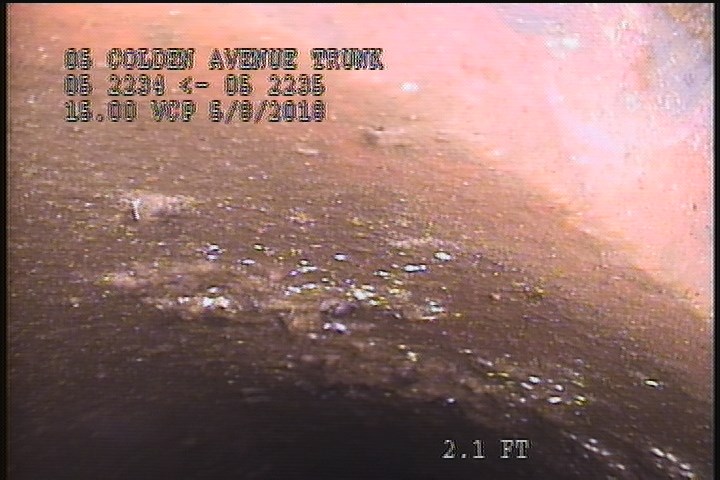

0 ft. - Water Mark, 100 %of cross sectional area

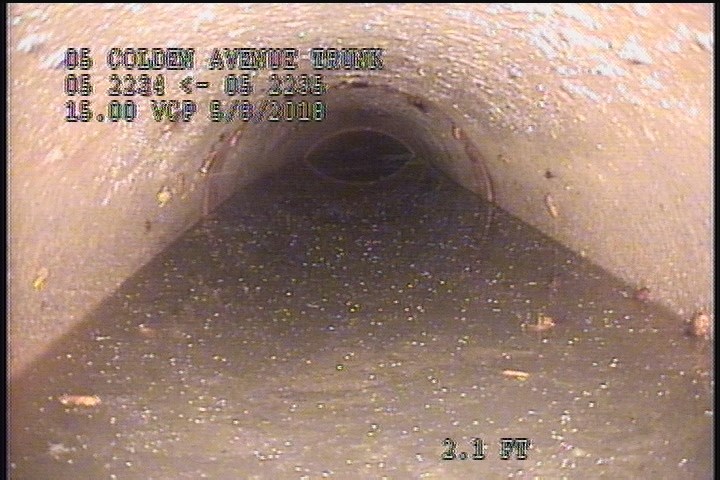

0 ft. - Downstream Manhole, Survey Begins - 1:06 PM

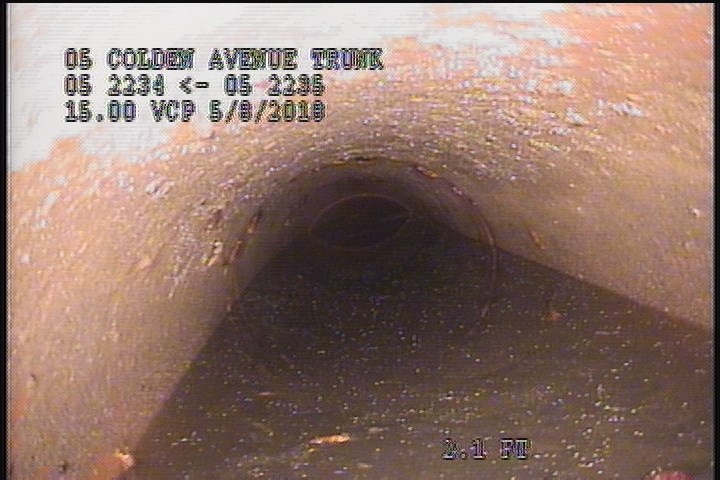

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

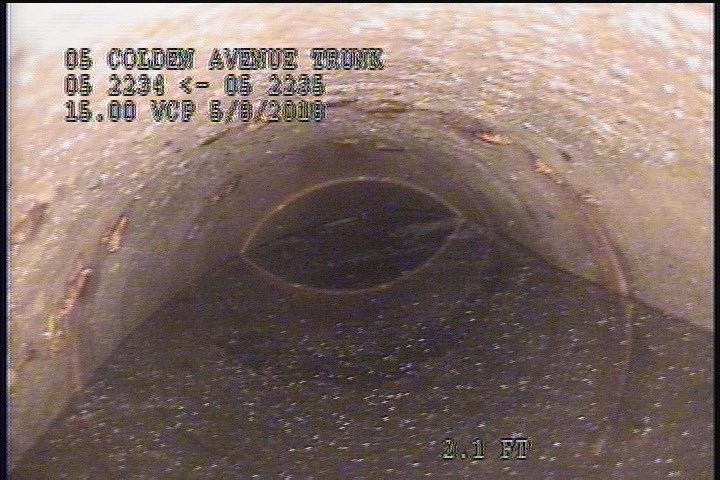

2 ft. - Alignment Up, 45 %

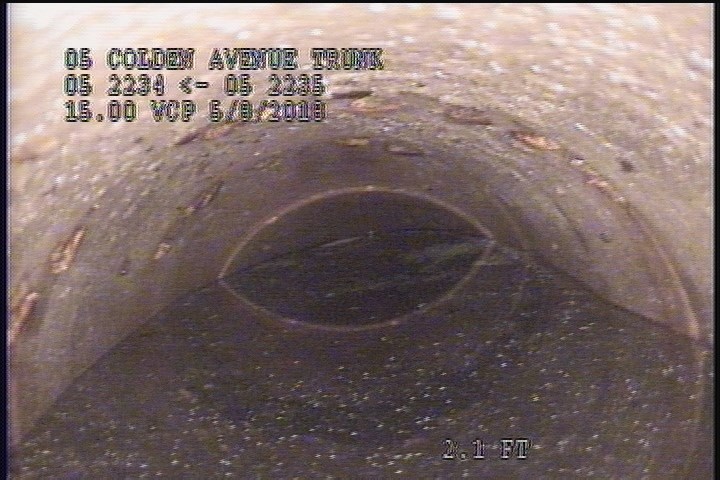

2 ft. - General Observation - Grease Throughout The Reach (5%)

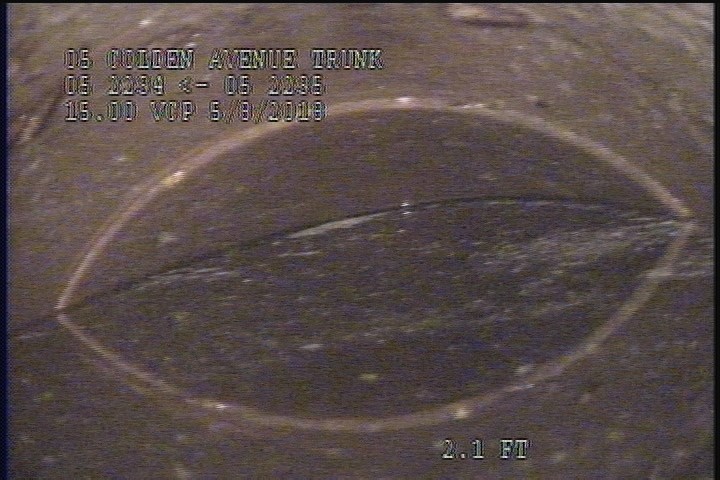

2.1 ft. - Survey Abandoned - HIGH WATER
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | MSA | HIGH WATER |
| 2 | SSS | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 2 | LU | — |
| 0 | AMH | 1:06 PM |
| 2 | MGO | Grease Throughout The Reach (5%) |
Properties (7)
- additional_info
- VIEW OF THE UPLEG PIPE FROM THE D/S SIPHON
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2018-05-08T12:58:57-07:00
- documentation
- FRANKLIN, IGNACIO
- is_lateral_inspection
- false
- year_laid
- 19771021
