Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 21, 2020, 07:30 AM

  • 01 0635_01 0634_5212020_003305.mp4

Date
05/21/2020
W/O
0829299
Weather
Dry
Operator/Surveyor
U-115-06022630
Sewer ID
Z00212
PipeID
P01131
Time
12:30 AM
Certificate
U-115-06022630
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1425
Sewer Name
01 MOUNTAIN VIEW-BELLE VERNON TRUNK
City
HUNTINGTON PARK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
10
Purpose
Routine Assessment
Project
20200519VMR_MOUNTAIN_VIEW_BELLE_VERNON_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
01 0635
Downstream MH
01 0634
Dir. of Survey
Downstream
Length Surveyed
272.3 ft.
Total Length
272.3 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole 01 0635 to 01 0634
MH: 01 0635MH: 01 0634downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:31 AM0 ft. MWM - Water Mark, 40 %of cross sectional area2 ft. LFW - Lining Failure Wrinkled, from 09 to 01 o'clock, within 8 inches of joint: NO27.8 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 4" - Open28.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 09 o'clock, , within 8 inches of joint: NO, Start28.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 04 o'clock, , within 8 inches of joint: NO, Start76.6 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: NO, 4"91.7 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: NO, 4"131.8 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 4"177.6 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 4"262.4 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 4"269.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 04 o'clock, , within 8 inches of joint: NO, Finish269.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 09 o'clock, , within 8 inches of joint: NO, Finish270.7 ft. LFZ - Lining Failure Other, at 03 o'clock, within 8 inches of joint: NO - POSSIBLE CUTOUT270.7 ft. LFZ - Lining Failure Other, at 09 o'clock, within 8 inches of joint: NO - POSSIBLE CUTOUT272.3 ft. AMH - Downstream Manhole, Survey Ends - 12:56 AM

Observation photos (2)

  • Lining Failure Other, at 03 o'clock, within 8 inches of joint: NO - POSSIBLE CUTOUT

    270.7 ft. - Lining Failure Other, at 03 o'clock, within 8 inches of joint: NO - POSSIBLE CUTOUT

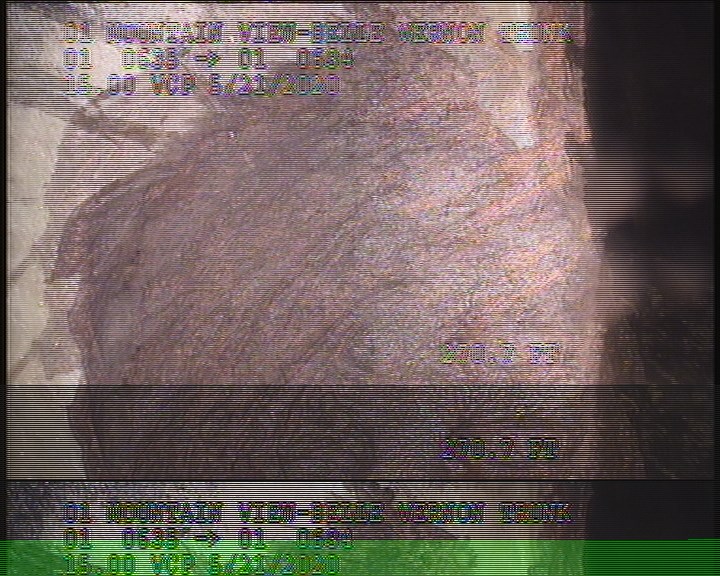

  • Lining Failure Other, at 09 o'clock, within 8 inches of joint: NO - POSSIBLE CUTOUT

    270.7 ft. - Lining Failure Other, at 09 o'clock, within 8 inches of joint: NO - POSSIBLE CUTOUT

All inspections of P01131Work order 0829299

Observations (17)

DistanceCodeObservation
28.3DAGS—
262.4TF—
0MWL—
177.6TF—
28.3DAGS—
76.6TFA—
131.8TF—
272.3AMH12:56 AM
27.8TFOpen
270.7LFZPOSSIBLE CUTOUT
270.7LFZPOSSIBLE CUTOUT
269.7DAGS—
269.7DAGS—
0AMH12:31 AM
2LFW—
0MWM—
91.7TFA—

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2020-05-21T00:30:35-07:00
documentation
REVELES, OLIVER III, CASTILLO, SKINNER
is_lateral_inspection
false
