Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 30, 2016, 11:04 AM

  • 19 0254_19 0253_8302016_044755.mp4

Date
08/30/2016
W/O
0585465
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00728
PipeID
P15224
Time
4:04 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0261
Sewer Name
19 STUDEBAKER ROAD TRUNK
City
CERRITOS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
01
Purpose
Routine Assessment
Project
20160829MDM_STUDEBAKER_ROAD_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
19 0253
Downstream MH
19 0254
Dir. of Survey
Upstream
Length Surveyed
273.8 ft.
Total Length
273.8 ft.
Structural Index
2
Structural Quick
312A
Structural Rating
27
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
29
Pipe schematic from manhole 19 0253 to 19 0254
MH: 19 0253MH: 19 0254upstream0 ft. AMH - Upstream Manhole, Survey Ends - 5:20AM0.3 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active3.1 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SLIGHT3.1 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - SLIGHT3.1 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - HAIRLINE8.6 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SLIGHT8.6 ft. FC - Fracture Circumferential, from 04 to 08 o'clock, within 8 inches of joint: YES - HAIRLINE8.6 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - SLIGHT13.3 ft. FC - Fracture Circumferential, from 03 to 08 o'clock, within 8 inches of joint: YES - SLIGHT13.3 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - SLIGHT18.5 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - SLIGHT18.6 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - SLIGHT18.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish60.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start115.6 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - HAIRLINE225.6 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active235.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT240.2 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT250.8 ft. MGO - General Observation - 15" VCP273.8 ft. MWL - Water Level, 5 %of cross sectional area273.8 ft. MWM - Water Mark, 20 %of cross sectional area273.8 ft. AMH - Downstream Manhole, Survey Begins - 4:45AM

Observation photos (3)

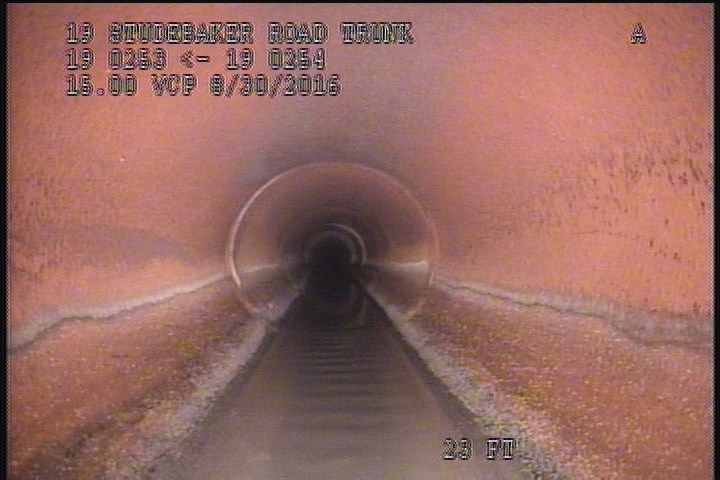

  • General Observation - 15" VCP

    23 ft. - General Observation - 15" VCP

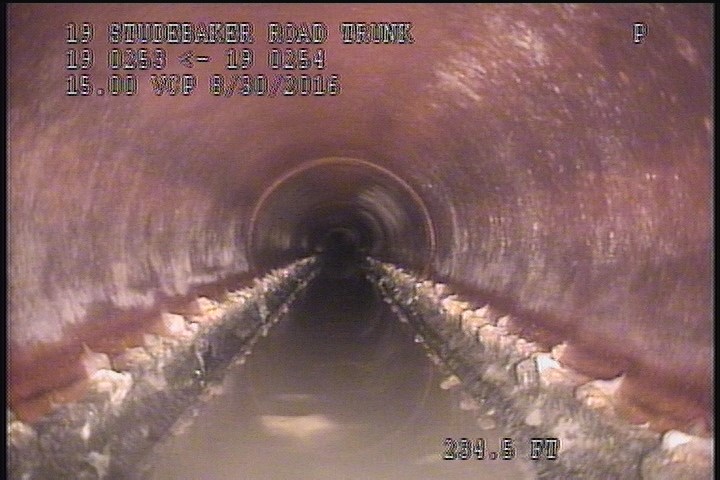

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    213.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

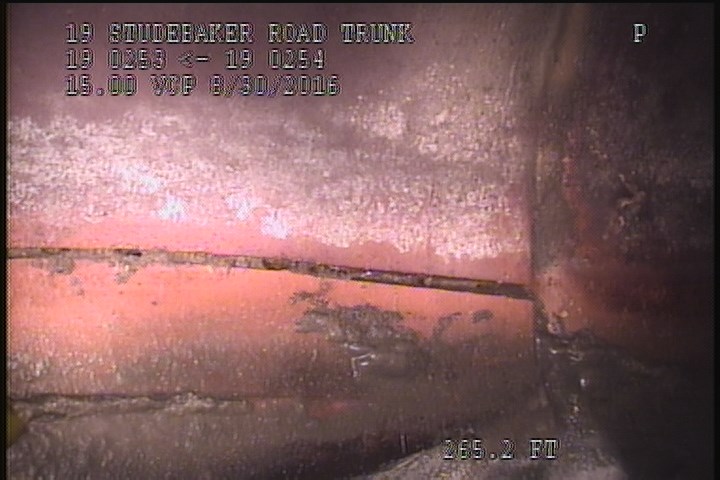

  • Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SLIGHT

    265.2 ft. - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SLIGHT

All inspections of P15224Work order 0585465

Observations (22)

DistanceCodeObservation
0MWL—
23MGO15" VCP
270.7FCSLIGHT
265.2FCSLIGHT
260.5FCSLIGHT
48.2TBActive
255.3FCSLIGHT
270.7FCSLIGHT
273.5MGOConn. @ Mh, 3 O' Clock. Active
270.7FCHAIRLINE
260.5FCSLIGHT
38.3FLSLIGHT
255.2FCSLIGHT
273.8AMH5:20AM
0MWM—
213.6DAGS—
33.6FCSLIGHT
265.2FCHAIRLINE
158.2FCHAIRLINE
255.2DAGS—
0AMH4:45AM
265.2FCSLIGHT

Properties (6)

custom_field_three
SLIGHT FRACTURES
custom_field_two
3
customer
LACSD
datetime
2016-08-30T04:04:20-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
