Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 23, 2016, 09:16 AM

  • 02 2378_02 0408_8232016_050131.mp4

Date
08/23/2016
W/O
0585432
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00256
PipeID
P02730
Time
2:16 AM
Certificate
U-104-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0251
Sewer Name
02 DOWNEY-BELLFLOWER RELIEF TRUNK, SECTION 4
City
DOWNEY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
32
Purpose
Routine Assessment
Project
20160820MDM_DOWNEY_BELLFLOWER_RELIEF_TRUNK_SECTION_4
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
02 2378
Downstream MH
02 0408
Dir. of Survey
Downstream
Length Surveyed
229.7 ft.
Total Length
229.7 ft.
Structural Index
2
Structural Quick
342A
Structural Rating
32
O&M Index
2
O&M Quick
3111
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
36
Pipe schematic from manhole 02 2378 to 02 0408
MH: 02 2378MH: 02 0408downstream0 ft. MWL - Water Level, 5 %of cross sectional area - BULKHEAD UPSTREAM0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:00AM8.2 ft. RML - Roots Medium Lateral, from 09 to 03 o'clock, 20 %, within 8 inches of joint: YES11.6 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active11.8 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open11.8 ft. RFL - Roots Fine Lateral, at 12 o'clock - 5%13 ft. MGO - General Observation - 15" VCP26.4 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Open32.3 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Active46.7 ft. FC - Fracture Circumferential, from 12 to 05 o'clock, within 8 inches of joint: YES - SLIGHT46.7 ft. FC - Fracture Circumferential, from 07 to 09 o'clock, within 8 inches of joint: YES - SLIGHT83.3 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Open100.6 ft. FC - Fracture Circumferential, from 07 to 12 o'clock, within 8 inches of joint: YES - SL104 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open134.2 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Open136.7 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H136.7 ft. FC - Fracture Circumferential, from 10 to 01 o'clock, within 8 inches of joint: YES - H157 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - SL157 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES - SL163.2 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H163.2 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H193.2 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - SL208.1 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SL224 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H224 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT228.6 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - SLIGHT229.3 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active229.3 ft. MGO - General Observation - Conn. @ Mh, 9:30 O' Clock. OPEN STOPLOG IN PLACE229.7 ft. AMH - Downstream Manhole, Survey Ends - 5:35AM

Observation photos (3)

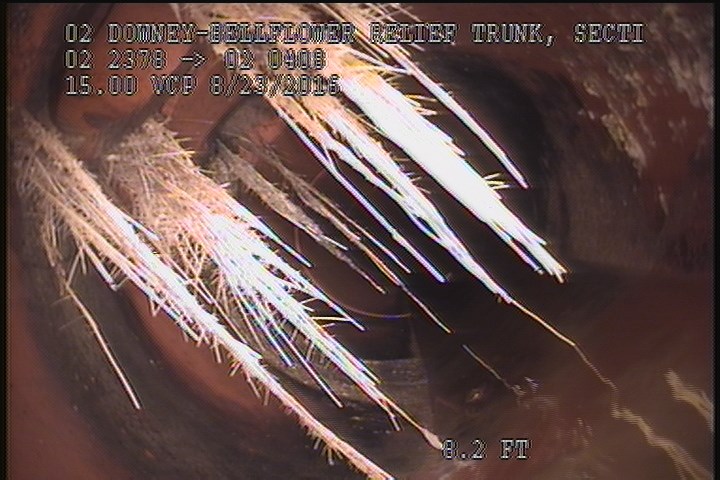

  • Roots Medium Lateral, from 09 to 03 o'clock, 20 %, within 8 inches of joint: YES

    8.2 ft. - Roots Medium Lateral, from 09 to 03 o'clock, 20 %, within 8 inches of joint: YES

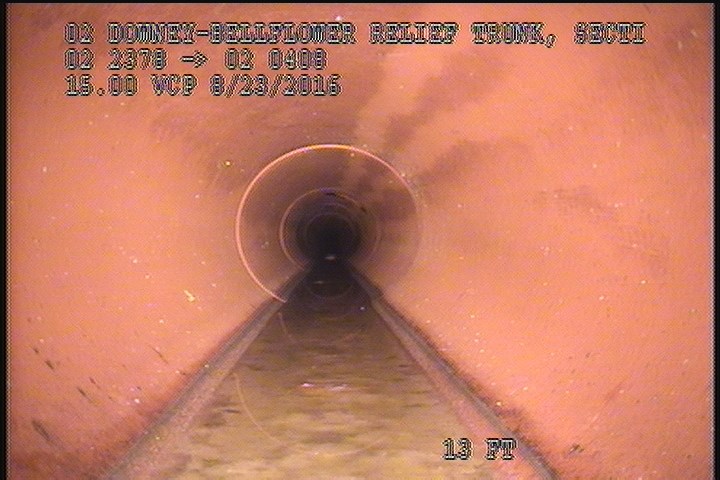

  • General Observation - 15" VCP

    13 ft. - General Observation - 15" VCP

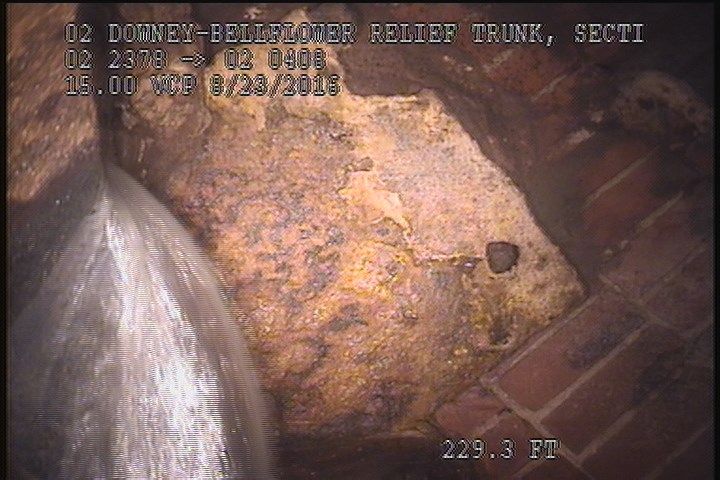

  • General Observation - Conn. @ Mh, 9:30 O' Clock. OPEN STOPLOG IN PLACE

    229.3 ft. - General Observation - Conn. @ Mh, 9:30 O' Clock. OPEN STOPLOG IN PLACE

All inspections of P02730Work order 0585432

Observations (30)

DistanceCodeObservation
136.7FCH
228.6FCSLIGHT
224FCH
8.2RML—
136.7FCH
224FCSLIGHT
193.2FLSL
229.3MGOConn. @ Mh, 9 O' Clock. Active
229.3MGOConn. @ Mh, 9:30 O' Clock. OPEN STOPLOG IN PLACE
46.7FCSLIGHT
208.1FCSL
163.2FLH
46.7FCSLIGHT
26.4TFOpen
11.8TBOpen
32.3TFActive
0MWLBULKHEAD UPSTREAM
157FCSL
11.8RFL5%
134.2TFOpen
83.3TFOpen
13MGO15" VCP
11.6TFActive
104TFOpen
0MWM—
100.6FCSL
0AMH5:00AM
157FLSL
229.7AMH5:35AM
163.2FLH

Properties (6)

custom_field_three
SLIGHT FRACTURES
custom_field_two
3
customer
LACSD
datetime
2016-08-23T02:16:43-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
