Wastewater/Activity/PacpInspection/1.0Aug 17, 2016, 07:55 PM

  • 05 0456A_05 0456_8172016_125954.mp4

Date
08/17/2016
W/O
0585478
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00526
PipeID
P05671
Time
12:55 PM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7206
Sewer Name
05 STRAWBERRY AVENUE TRUNK
City
HAWTHORNE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
13
Purpose
Routine Assessment
Project
20160817AM_STRAWBERRY_AVENUE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
05 0456
Downstream MH
05 0456A
Dir. of Survey
Upstream
Length Surveyed
305 ft.
Total Length
305 ft.
Structural Index
4
Structural Quick
5132
Structural Rating
11
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole 05 0456 to 05 0456A
MH: 05 0456MH: 05 0456Aupstream0 ft. AMH - Upstream Manhole, Survey Ends - 1:26 PM1.7 ft. MGO - General Observation - ROACHES INSIDE THE MH.1.8 ft. MGO - General Observation - SLIGHT GREASE THROUGHOUT THE REACH39.8 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: YES, 6"41.9 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: YES, 6"64.1 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 4" - OPEN89.5 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6" - OPEN91.9 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 6" - OPEN141.6 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: YES, 6"144 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 6" - OPEN191.5 ft. TFD - Tap Factory Made Defective, at 11 o'clock, -, within 8 inches of joint: YES, 6" - ACTIVE, 30% BLOCKED, OFFSET194.2 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: YES, 6"241.6 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: YES, 6"242.8 ft. CM - Crack Multiple, from 11 to 05 o'clock, within 8 inches of joint: YES244.1 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: YES, 6"294.5 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: YES, 6"295.6 ft. MGP - General Photograph - BROKEN295.6 ft. B - Broken, from 01 to 04 o'clock, within 8 inches of joint: YES296.9 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: YES, 6"297.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES305 ft. MWM - Water Mark, 10 %of cross sectional area305 ft. MWL - Water Level, 5 %of cross sectional area305 ft. MGO - General Observation - CAPPED CONN. INSIDE THE MH. @ 03 O'CLOCK305 ft. AMH - Downstream Manhole, Survey Begins - 12:58 PM305 ft. MGO - General Observation - ROACHES INSIDE THE MH.305 ft. MGO - General Observation - OPEN CONN. INSIDE THE MH. @ 03 O'CLOCK

Observation photos (4)

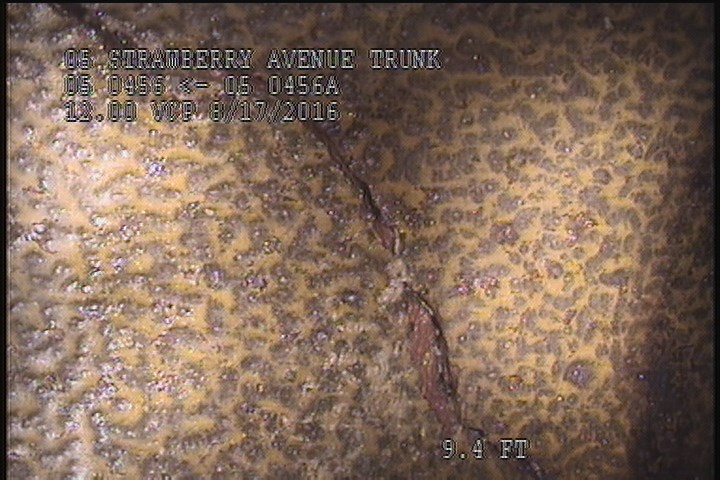

  • General Photograph - BROKEN

    9.4 ft. - General Photograph - BROKEN

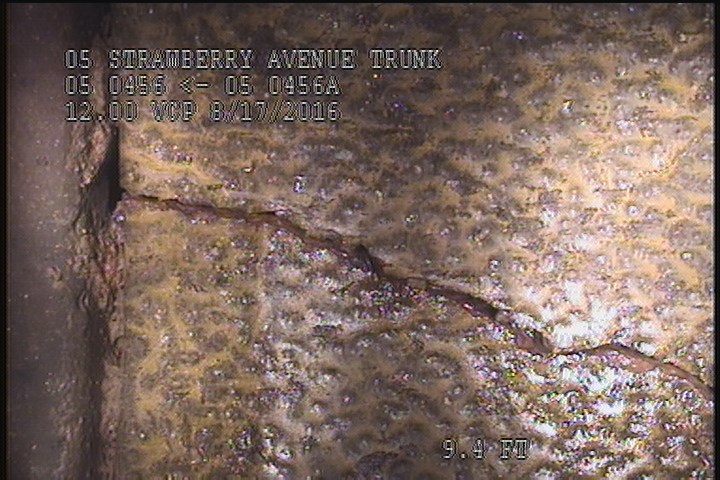

  • Broken, from 01 to 04 o'clock, within 8 inches of joint: YES

    9.4 ft. - Broken, from 01 to 04 o'clock, within 8 inches of joint: YES

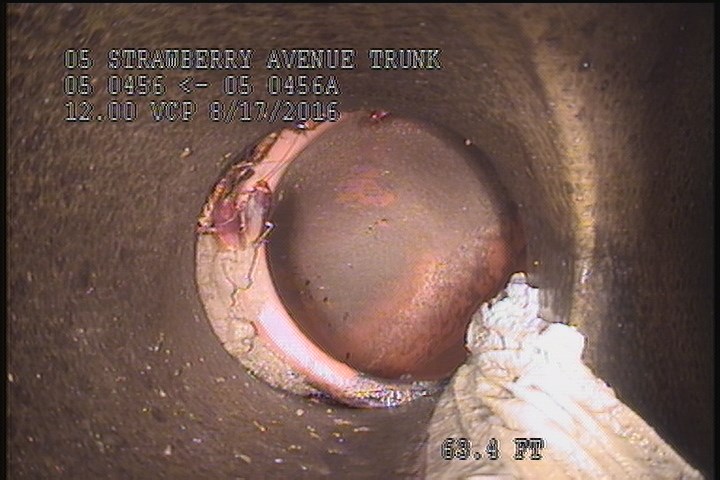

  • Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: YES, 6"

    63.4 ft. - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: YES, 6"

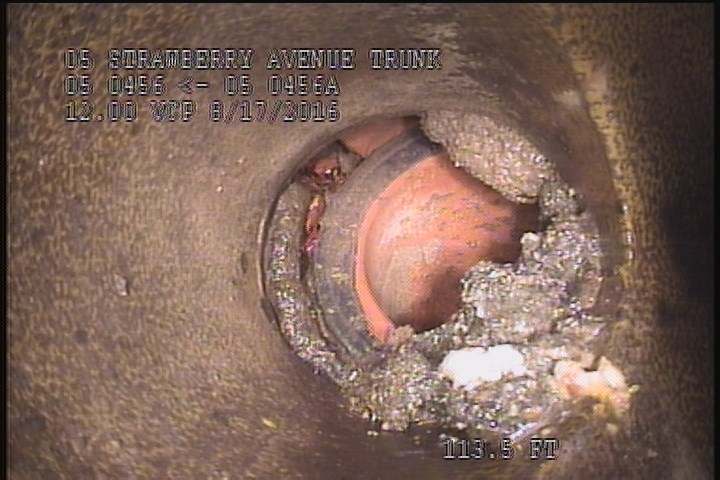

  • Tap Factory Made Defective, at 11 o'clock, -, within 8 inches of joint: YES, 6" - ACTIVE, 30% BLOCKED, OFFSET

    113.5 ft. - Tap Factory Made Defective, at 11 o'clock, -, within 8 inches of joint: YES, 6" - ACTIVE, 30% BLOCKED, OFFSET

All inspections of P05671Work order 0585478

Observations (26)

DistanceCodeObservation
303.3MGOROACHES INSIDE THE MH.
63.4TFA—
9.4MGPBROKEN
60.9TFA—
110.8TFA—
10.5TFA—
8.1TFA—
0MWM—
62.2CM—
0MWL—
213.1TFOPEN
305AMH1:26 PM
303.2MGOSLIGHT GREASE THROUGHOUT THE REACH
215.5TFOPEN
263.1TFA—
265.2TFA—
161TFOPEN
9.4B—
0MGOCAPPED CONN. INSIDE THE MH. @ 03 O'CLOCK
0AMH12:58 PM
240.9TBOPEN
0MGOROACHES INSIDE THE MH.
0MGOOPEN CONN. INSIDE THE MH. @ 03 O'CLOCK
7.7CM—
113.5TFDACTIVE, 30% BLOCKED, OFFSET
163.4TFA—

Properties (6)

custom_field_three
BROKEN PIPE
custom_field_two
1
customer
LACSD
datetime
2016-08-17T12:55:58-07:00
documentation
MIRANDA, SHADLER, BRAR
is_lateral_inspection
false
