Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 17, 2016, 05:41 PM

  • 05 0457_S_EndNode_8172016_104555.mp4

Date
08/17/2016
W/O
0585478
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00526
PipeID
P07570
Time
10:41 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7206
Sewer Name
05 STRAWBERRY AVENUE TRUNK
City
HAWTHORNE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
13
Purpose
Routine Assessment
Project
20160817AM_STRAWBERRY_AVENUE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
05 0457
Dir. of Survey
Downstream
Length Surveyed
1.6 ft.
Total Length
1.6 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 05 0457 to unknown
MH: 05 0457MH: —downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK0 ft. MGO - General Observation - ROACHES INSIDE THE MH.0 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 10:44 AM, PIPE DROPS INTO THE 54" LINE1.3 ft. CM - Crack Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES - TOWARDS THE END OF THE REACH1.4 ft. MGO - General Observation - SLIGHT GREASE THROUGHOUT THE REACH1.6 ft. AMH - Upstream Manhole, Survey Ends - ABLE TO ZOOM IN D/S

Observation photos (3)

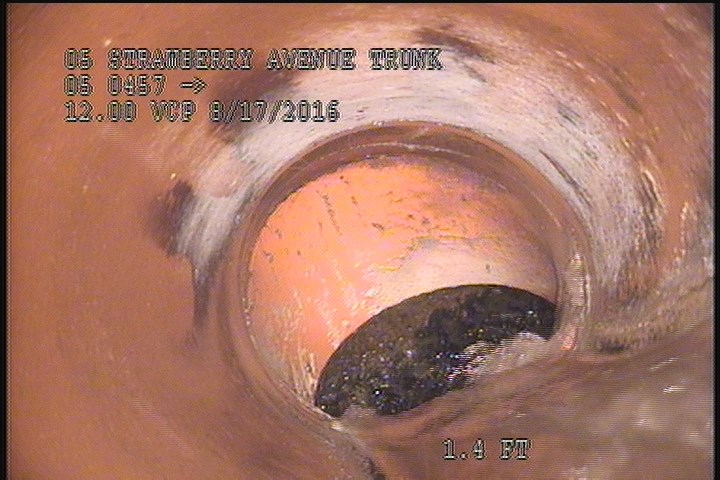

  • Water Level, 20 %of cross sectional area

    0 ft. - Water Level, 20 %of cross sectional area

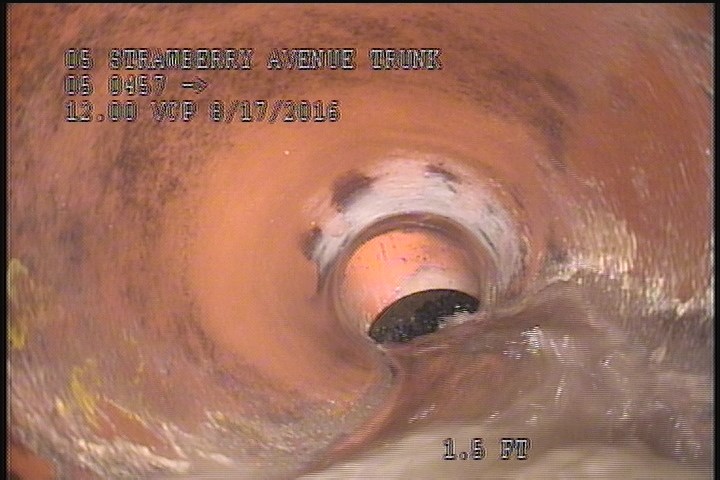

  • Upstream Manhole, Survey Begins - 10:44 AM, PIPE DROPS INTO THE 54" LINE

    0 ft. - Upstream Manhole, Survey Begins - 10:44 AM, PIPE DROPS INTO THE 54" LINE

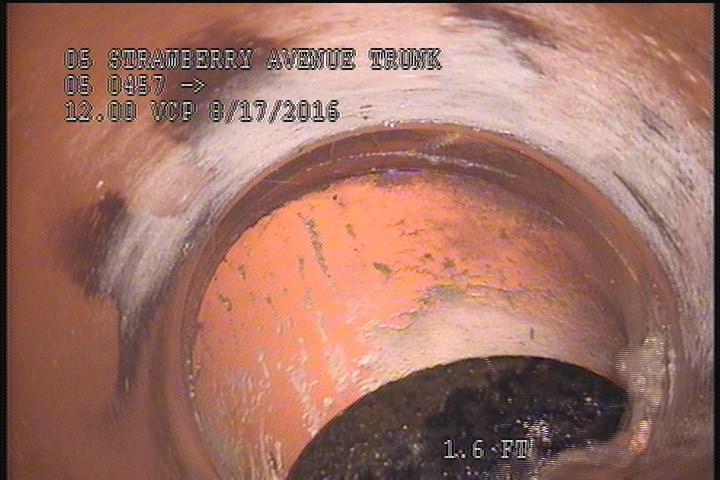

  • Crack Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES - TOWARDS THE END OF THE REACH

    1.3 ft. - Crack Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES - TOWARDS THE END OF THE REACH

All inspections of P07570Work order 0585478

Observations (9)

DistanceCodeObservation
0MWL—
1.6AMHABLE TO ZOOM IN D/S
0MWM—
1.4MGOSLIGHT GREASE THROUGHOUT THE REACH
1.3CMTOWARDS THE END OF THE REACH
0MGOACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK
0MGOROACHES INSIDE THE MH.
0MGOACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK
0AMH10:44 AM, PIPE DROPS INTO THE 54" LINE

Properties (6)

additional_info
JUST GOING TO SIT IN THE CENTER OF THE MH. AND ZOOM IN D/S INTO THE HAWTHORNE-LAWNDALE-TORRANCE TRUNK
custom_field_two
4
customer
LACSD
datetime
2016-08-17T10:41:58-07:00
documentation
MIRANDA, SHADLER, BRAR
is_lateral_inspection
false
