  • 05 0459_05 0458_8172016_092620.mp4

Date
08/17/2016
W/O
0585478
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00526
PipeID
P05673
Time
8:44 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7206
Sewer Name
05 STRAWBERRY AVENUE TRUNK
City
HAWTHORNE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
13
Purpose
Routine Assessment
Project
20160817AM_STRAWBERRY_AVENUE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
05 0458
Downstream MH
05 0459
Dir. of Survey
Upstream
Length Surveyed
339 ft.
Total Length
339 ft.
Structural Index
3
Structural Quick
3221
Structural Rating
8
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 05 0458 to 05 0459
MH: 05 0458MH: 05 0459upstream0 ft. AMH - Upstream Manhole, Survey Ends - 9:56 AM1.7 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK1.7 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK1.7 ft. MGO - General Observation - ROACHES INSIDE THE MH.2.1 ft. MGO - General Observation - SLIGHT GREASE THROUGHOUT THE REACH26.8 ft. JOL - Joint Offset Large75.3 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6" - OPEN77.7 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6"111.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES125.2 ft. TFD - Tap Factory Made Defective, at 11 o'clock, -, within 8 inches of joint: YES, 6" - ACTIVE, OFFSET127.9 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 6" - OPEN175.3 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6" - OPEN177.7 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 6" - OPEN225.3 ft. TFD - Tap Factory Made Defective, at 11 o'clock, -, within 8 inches of joint: YES, 6" - OPEN,OFFSET, SEPARATED227.7 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: YES, 6"275.4 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6" - OPEN278.3 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: YES, 6"281.5 ft. MGO - General Observation - CHIPPING328.1 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"330.9 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: YES, 6"331.4 ft. CM - Crack Multiple, from 07 to 01 o'clock, within 8 inches of joint: YES339 ft. MWL - Water Level, 15 %of cross sectional area339 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK339 ft. MWM - Water Mark, 25 %of cross sectional area339 ft. MGO - General Observation - DEBRIS ON THE SHELVES339 ft. AMH - Downstream Manhole, Survey Begins - 9:26 AM339 ft. MGO - General Observation - ROACHES INSIDE THE MH.

Observation photos (5)

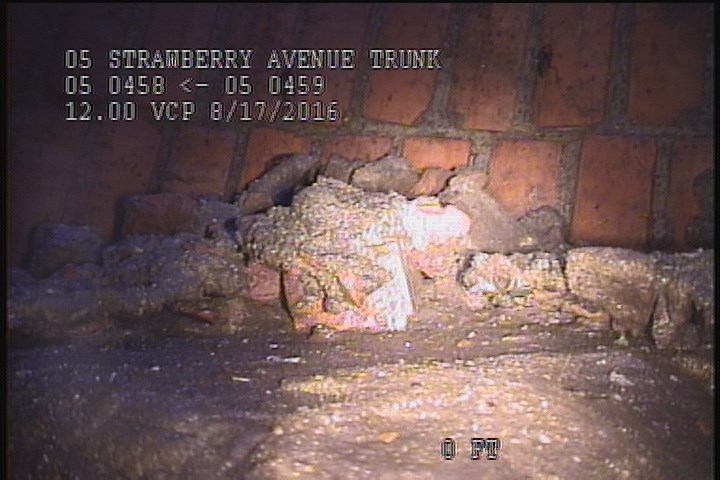

  • General Observation - DEBRIS ON THE SHELVES

    0 ft. - General Observation - DEBRIS ON THE SHELVES

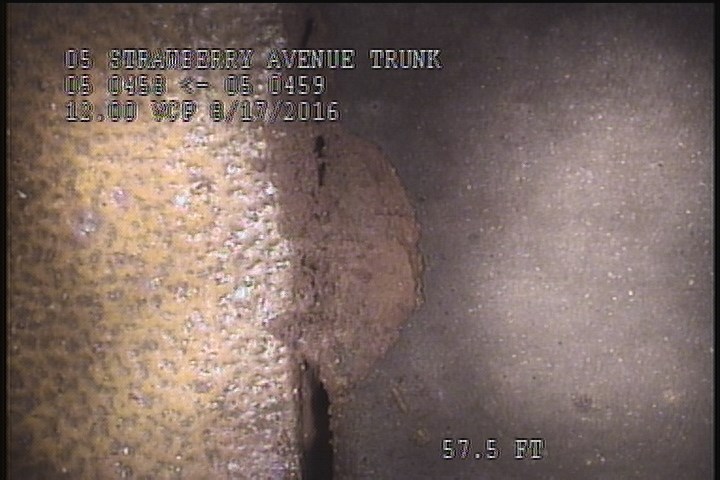

  • General Observation - CHIPPING

    57.5 ft. - General Observation - CHIPPING

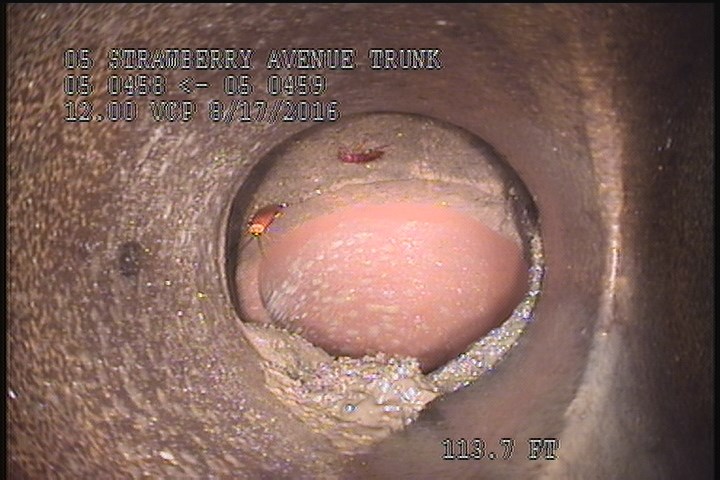

  • Tap Factory Made Defective, at 11 o'clock, -, within 8 inches of joint: YES, 6" - OPEN,OFFSET, SEPARATED

    113.7 ft. - Tap Factory Made Defective, at 11 o'clock, -, within 8 inches of joint: YES, 6" - OPEN,OFFSET, SEPARATED

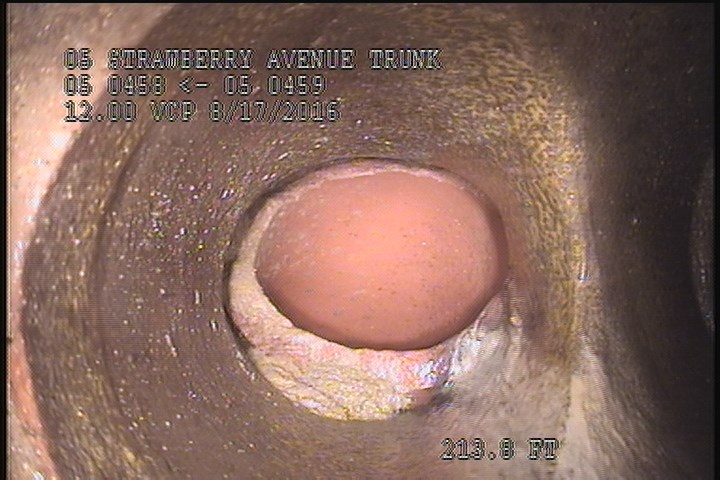

  • Tap Factory Made Defective, at 11 o'clock, -, within 8 inches of joint: YES, 6" - ACTIVE, OFFSET

    213.8 ft. - Tap Factory Made Defective, at 11 o'clock, -, within 8 inches of joint: YES, 6" - ACTIVE, OFFSET

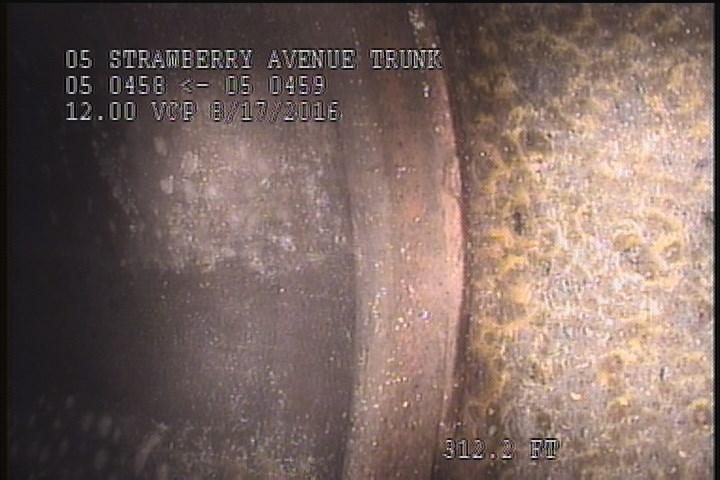

  • Joint Offset Large

    312.2 ft. - Joint Offset Large

All inspections of P05673Work order 0585478

Observations (27)

DistanceCodeObservation
57.5MGOCHIPPING
163.7TFOPEN
0MWL—
337.3MGOACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK
161.3TFOPEN
261.3TFC—
113.7TFDOPEN,OFFSET, SEPARATED
63.6TFOPEN
213.8TFDACTIVE, OFFSET
0MGOACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK
0MWM—
0MGODEBRIS ON THE SHELVES
227.7CM—
336.9MGOSLIGHT GREASE THROUGHOUT THE REACH
0AMH9:26 AM
337.3MGOACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK
263.7TFOPEN
0MGOROACHES INSIDE THE MH.
10.9TFC—
211.1TFOPEN
339AMH9:56 AM
312.2JOL—
337.3MGOROACHES INSIDE THE MH.
60.7TFA—
8.1TFA—
7.6CM—
111.3TFA—

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2016-08-17T08:44:24-07:00
documentation
MIRANDA, SHADLER, BRAR
is_lateral_inspection
false
