Wastewater/Activity/PacpInspection/1.0Aug 10, 2016, 08:08 AM
B 0761B_B 0761A_8102016_025324.mp4
- Date
- 08/10/2016
- W/O
- 0589658
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00112
- PipeID
- P26531
- Time
- 1:08 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0229
- Sewer Name
- B JOINT OUTFALL B - UNIT 8J
- City
- EL MONTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- 20160810MDM_JOINT_OUTFALL_B_UNIT_8J
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 36 in.
- Upstream MH
- B 0761B
- Downstream MH
- B 0761A
- Dir. of Survey
- Downstream
- Length Surveyed
- 3 ft.
- Total Length
- 3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (2)

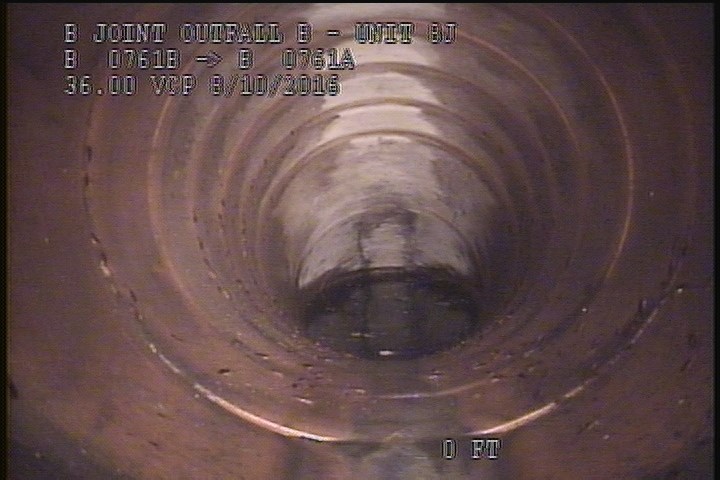

0 ft. - Water Mark, 40 %of cross sectional area

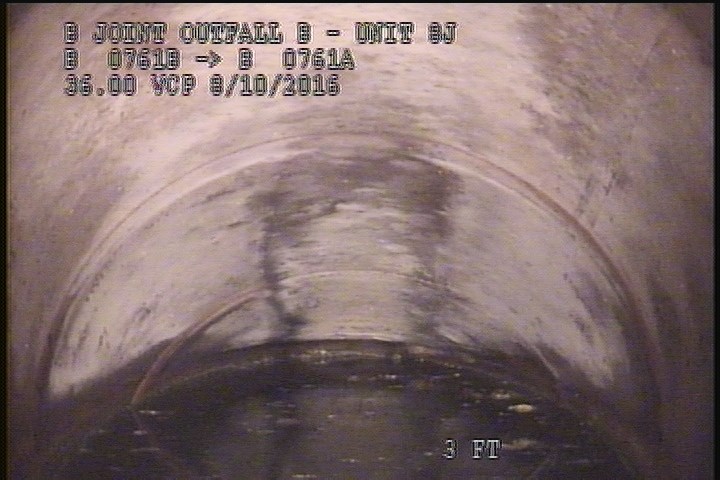

3 ft. - Survey Abandoned - DOWNLEG UPSTREAM SIPHON- 2:50AM
Observations (4)
| Distance | Code | Observation |
|---|---|---|
| 3 | MSA | DOWNLEG UPSTREAM SIPHON- 2:50AM |
| 0 | MWL | — |
| 0 | MWM | — |
| 0 | AMH | 2:45AM |
Properties (6)
- additional_info
- DOWNLEG UPSTREAM SIPHON
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-08-10T01:08:29-07:00
- documentation
- MARTIN,MANANES,REVELES,OLIVER 111
- is_lateral_inspection
- false
