Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 27, 2016, 07:31 AM

  • A 0318_A 0317_6272016_031140.mp4

Date
06/27/2016
W/O
0574318
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00325
PipeID
P08228
Time
12:31 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0172
Sewer Name
A JOA-1A SAN JOSE CREEK WRP INTERCEPTOR
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
22
Purpose
Capital Improvement Program Assesment
Project
20160624MDM_JOA_1A_SAN_JOSE_CREEK_WRP_INTERCEPTOR
Material
Reinforced Concrete Pipe
Shape
Circular
Height
63 in.
Upstream MH
A 0317
Downstream MH
A 0318
Dir. of Survey
Upstream
Length Surveyed
4 ft.
Total Length
4 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole A 0317 to A 0318
MH: A 0317MH: A 0318upstream0 ft. MSA - Survey Abandoned - UPLEG DOWNSTREAM SIPHON1 ft. SAV - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: NO - POSSIBLE FEW SEVERE AGG2 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES - BLISTERING PEELING CONCRETE4 ft. MWL - Water Level, 50 %of cross sectional area4 ft. AMH - Downstream Manhole, Survey Begins - 2:50AM4 ft. MWM - Water Mark, 70 %of cross sectional area

Observation photos (4)

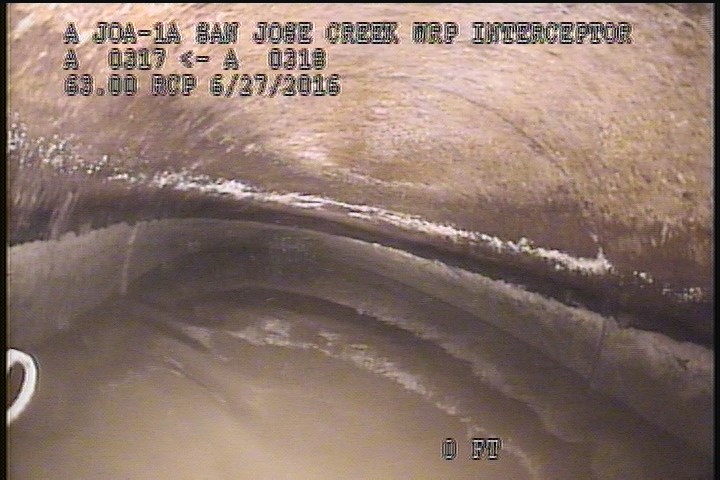

  • Water Level, 50 %of cross sectional area

    0 ft. - Water Level, 50 %of cross sectional area

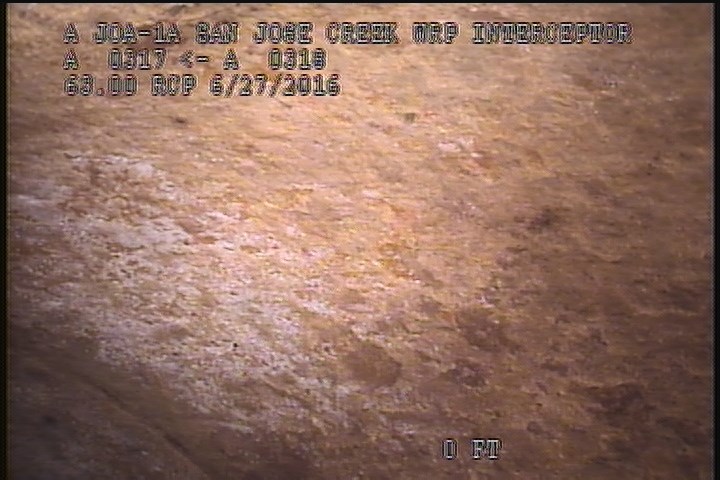

  • Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES - BLISTERING PEELING CONCRETE

    2 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES - BLISTERING PEELING CONCRETE

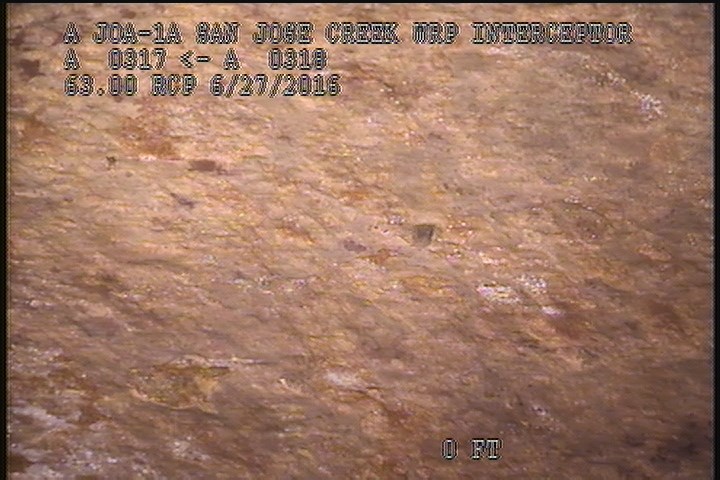

  • Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: NO - POSSIBLE FEW SEVERE AGG

    3 ft. - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: NO - POSSIBLE FEW SEVERE AGG

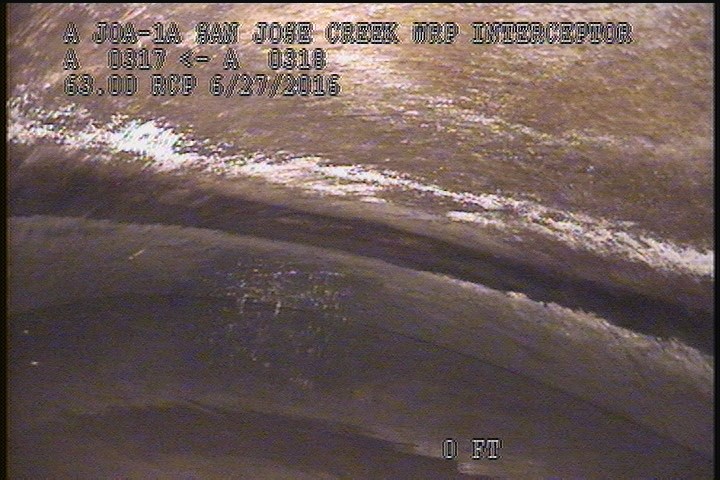

  • Survey Abandoned - UPLEG DOWNSTREAM SIPHON

    4 ft. - Survey Abandoned - UPLEG DOWNSTREAM SIPHON

All inspections of P08228Work order 0574318

Observations (6)

DistanceCodeObservation
4MSAUPLEG DOWNSTREAM SIPHON
2SSSBLISTERING PEELING CONCRETE
0MWL—
0AMH2:50AM
3SAVPOSSIBLE FEW SEVERE AGG
0MWM—

Properties (7)

additional_info
UPLEG DOWNSTREAM SIPHON
custom_field_three
BLISTERING PEELING CONCRETE-FEW POSSIBLE AGG
custom_field_two
4
customer
LACSD
datetime
2016-06-27T00:31:23-07:00
documentation
MARTIN,MANANES,OLIVER 111
is_lateral_inspection
false
