Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 18, 2016, 07:35 AM
Date
06/18/2016
W/O
0574862
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00325
PipeID
P08218
Time
12:35 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6721
Sewer Name
A JOA-1A SAN JOSE CREEK WRP INTERCEPTOR
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
29
Purpose
Routine Assessment
Project
20160618MDM_JOA_1A_SAN_JOSE_CREEK_WRP_INTERCEPTOR
Material
Reinforced Concrete Pipe
Shape
Circular
Height
63 in.
Upstream MH
A 0307
Downstream MH
A 0308
Dir. of Survey
Upstream
Length Surveyed
15.7 ft.
Total Length
15.7 ft.
Structural Index
2
Structural Quick
3223
Structural Rating
12
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
16
Pipe schematic from manhole A 0307 to A 0308
MH: A 0307MH: A 0308upstream0 ft. MSA - Survey Abandoned - UPLEG DOWNSTREAM SIPHON0.5 ft. SAV - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG SPORATIC0.5 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - BLISTERING PEELING LAITANCE COAT5.8 ft. MGO - General Observation - LOOSE GASKET5.8 ft. MGO - General Observation - LOOSE GASKET 12:007.8 ft. SAV - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG SPORATIC7.8 ft. MGO - General Observation - LOOSE GASKET7.8 ft. MGO - General Observation - LOOSE GASKET13.7 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING LAITANCE COAT15.7 ft. MWL - Water Level, 50 %of cross sectional area15.7 ft. AMH - Downstream Manhole, Survey Begins - 1:05AM15.7 ft. MWM - Water Mark, 60 %of cross sectional area

Observation photos (7)

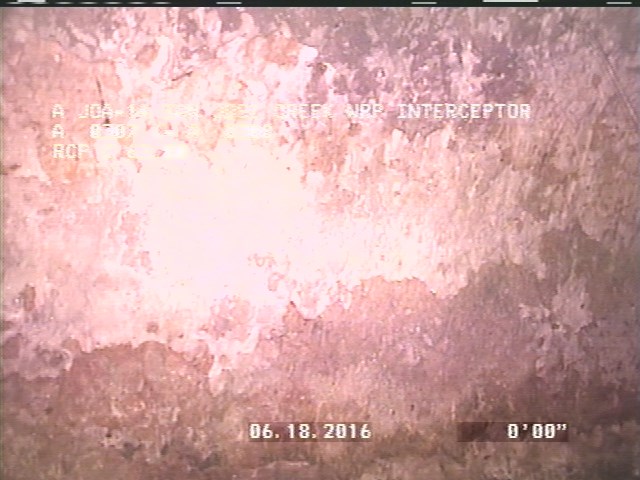

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING LAITANCE COAT

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING LAITANCE COAT

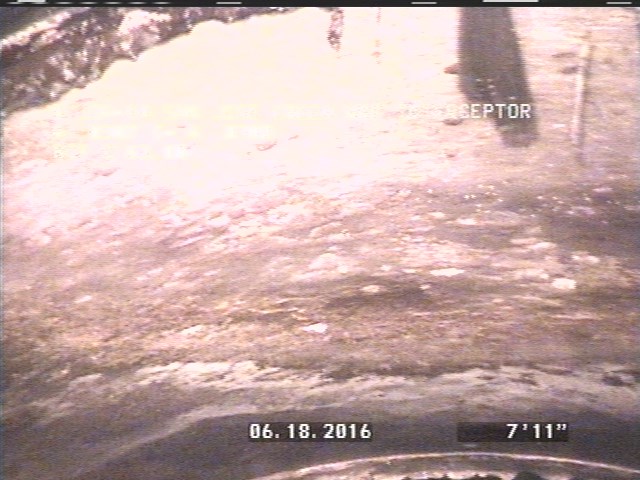

  • Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG SPORATIC

    7.9 ft. - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG SPORATIC

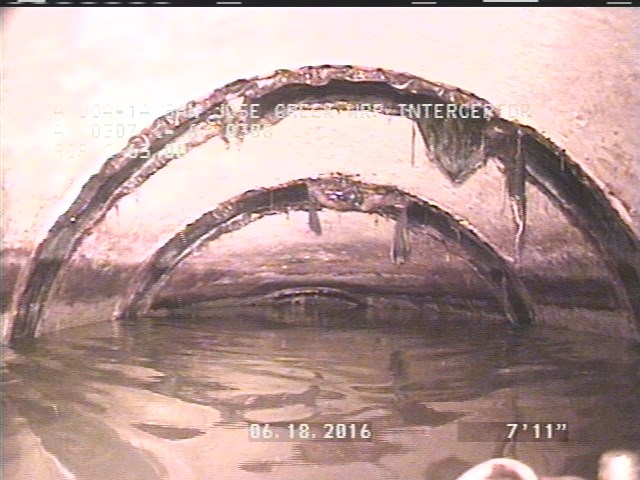

  • General Observation - LOOSE GASKET

    7.9 ft. - General Observation - LOOSE GASKET

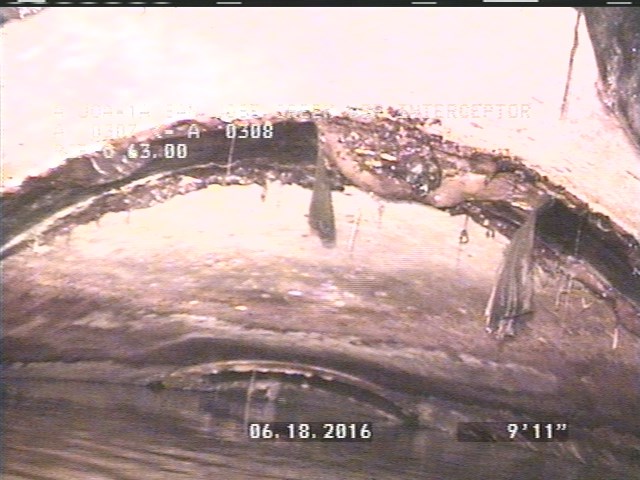

  • General Observation - LOOSE GASKET

    7.9 ft. - General Observation - LOOSE GASKET

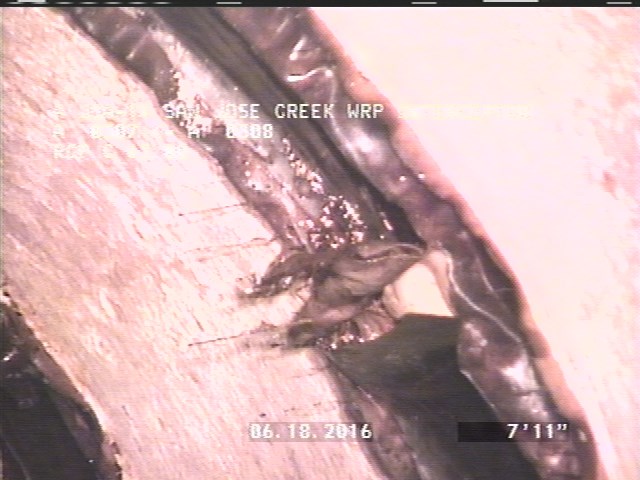

  • General Observation - LOOSE GASKET

    9.9 ft. - General Observation - LOOSE GASKET

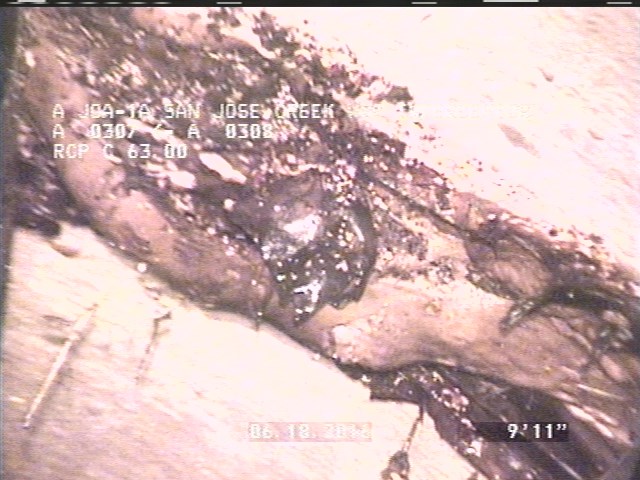

  • General Observation - LOOSE GASKET 12:00

    9.9 ft. - General Observation - LOOSE GASKET 12:00

  • Survey Abandoned - UPLEG DOWNSTREAM SIPHON

    15.7 ft. - Survey Abandoned - UPLEG DOWNSTREAM SIPHON

All inspections of P08218Work order 0574862

Observations (12)

DistanceCodeObservation
15.7MSAUPLEG DOWNSTREAM SIPHON
15.2SAVSEVERE AGG SPORATIC
7.9SAVSEVERE AGG SPORATIC
0MWL—
2SSSBLISTERING PEELING LAITANCE COAT
0AMH1:05AM
7.9MGOLOOSE GASKET
9.9MGOLOOSE GASKET
15.2SSSBLISTERING PEELING LAITANCE COAT
9.9MGOLOOSE GASKET 12:00
7.9MGOLOOSE GASKET
0MWM—

Properties (7)

additional_info
UPLEG DOWNSTREAM SIPHON
custom_field_three
SEVERE AGG VISIBLE
custom_field_two
3
customer
LACSD
datetime
2016-06-18T00:35:45-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
