Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 9, 2016, 07:55 AM

  • 15 0152_15 0151_692016_022930.mp4

Date
06/09/2016
W/O
0568722
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00635
PipeID
P12053
Time
12:55 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0154
Sewer Name
15 TYLER AVENUE RELIEF TRUNK
City
EL MONTE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
23
Purpose
Routine Assessment
Project
20160606MDM_TYLER_AVENUE_RELIEF_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Upstream MH
15 0152
Downstream MH
15 0151
Dir. of Survey
Downstream
Length Surveyed
370.9 ft.
Total Length
370.9 ft.
Structural Index
2
Structural Quick
3223
Structural Rating
12
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 15 0152 to 15 0151
MH: 15 0152MH: 15 0151downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:55AM0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. MGO - General Observation - MH CONN OPEN 11:00 IN STACK0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - BLISTERING CONCRETE2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELING BLISTERING LAITANCE COAT2 ft. SAV - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG SPORATIC41.8 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - PEELING LAITANCE COAT95.7 ft. SAV - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES - SEVRE AGG SPORATIC370.4 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish - BLISTERING CONCRETE370.4 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - PEELING LAITANCE COAT370.4 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. OPEN370.4 ft. SAV - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG VERY SPORATIC370.9 ft. AMH - Downstream Manhole, Survey Ends - 2:30AM

Observation photos (5)

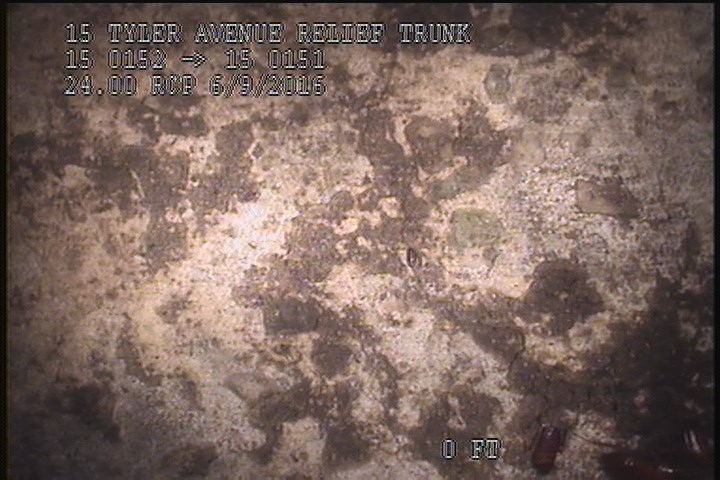

  • Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - BLISTERING CONCRETE

    2 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - BLISTERING CONCRETE

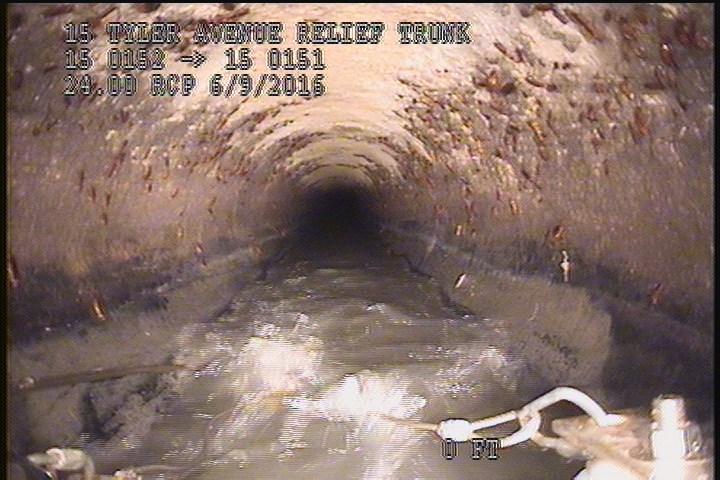

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELING BLISTERING LAITANCE COAT

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELING BLISTERING LAITANCE COAT

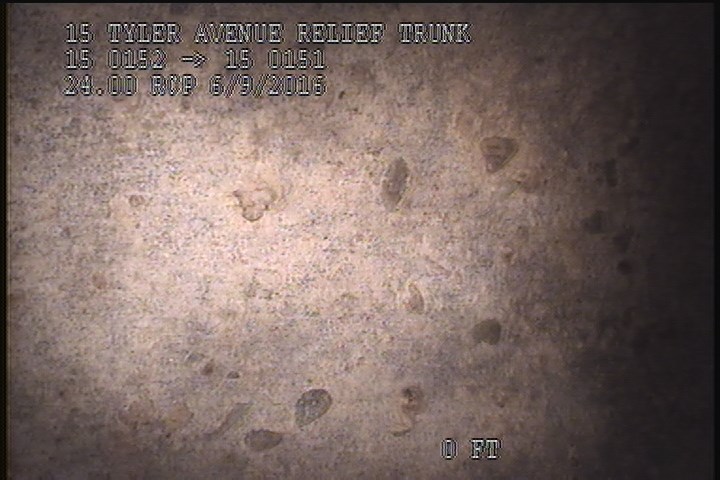

  • Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG SPORATIC

    2 ft. - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG SPORATIC

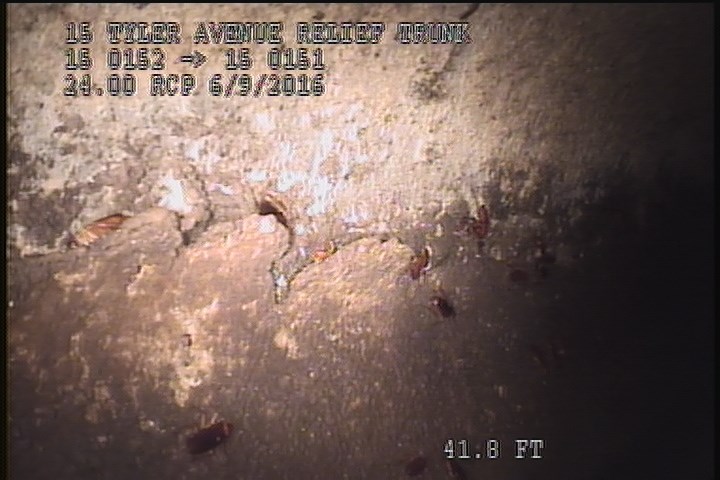

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - PEELING LAITANCE COAT

    41.8 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - PEELING LAITANCE COAT

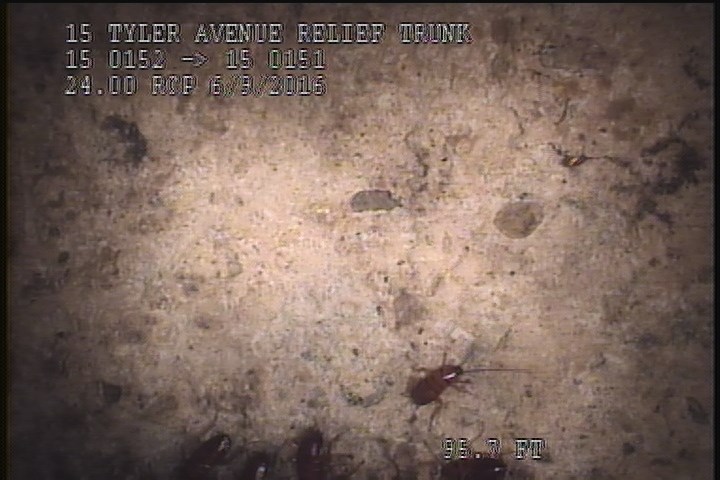

  • Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES - SEVRE AGG SPORATIC

    95.7 ft. - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES - SEVRE AGG SPORATIC

All inspections of P12053Work order 0568722

Observations (15)

DistanceCodeObservation
2SSSBLISTERING CONCRETE
2SSSPEELING BLISTERING LAITANCE COAT
370.9AMH2:30AM
370.4SSSBLISTERING CONCRETE
95.7SAVSEVRE AGG SPORATIC
370.4SSSPEELING LAITANCE COAT
2SAVSEVERE AGG SPORATIC
0MWM—
0AMH1:55AM
0MGOConn. @ Mh, 3 O' Clock. Active
0MGOMH CONN OPEN 11:00 IN STACK
0MWL—
370.4MGOConn. @ Mh, 3 O' Clock. OPEN
41.8SSSPEELING LAITANCE COAT
370.4SAVSEVERE AGG VERY SPORATIC

Properties (6)

custom_field_three
SEVERE AGG VERY SPORATIC
custom_field_two
3
customer
LACSD
datetime
2016-06-09T00:55:00-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
