Wastewater/Activity/PacpInspection/1.0Jun 3, 2016, 08:01 PM
30 0293_30 0292_632016_131126.mp4
- Date
- 06/03/2016
- W/O
- 0568757
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00878
- PipeID
- P17780
- Time
- 1:01 PM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7141
- Sewer Name
- 30 SOUTH BAY CITIES MAIN TRUNK
- City
- HERMOSA BEACH
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 30
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- 20160603AM_SOUTH_BAY_CITIES_MAIN_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 30 0293
- Downstream MH
- 30 0292
- Dir. of Survey
- Downstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (4)

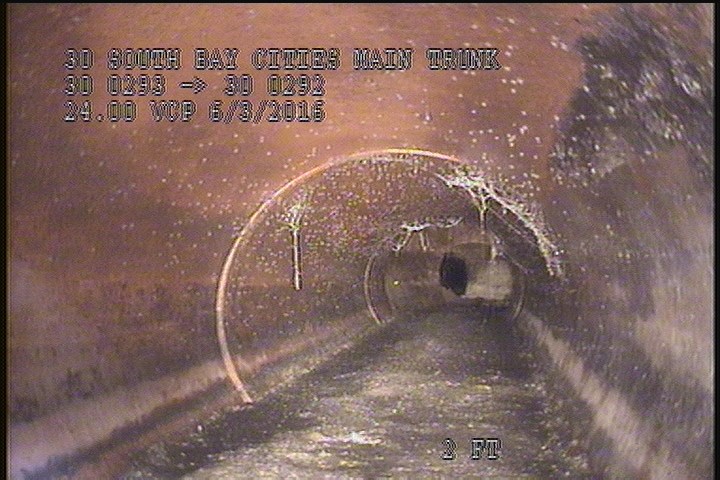

0 ft. - Upstream Manhole, Survey Begins - 1:15 PM

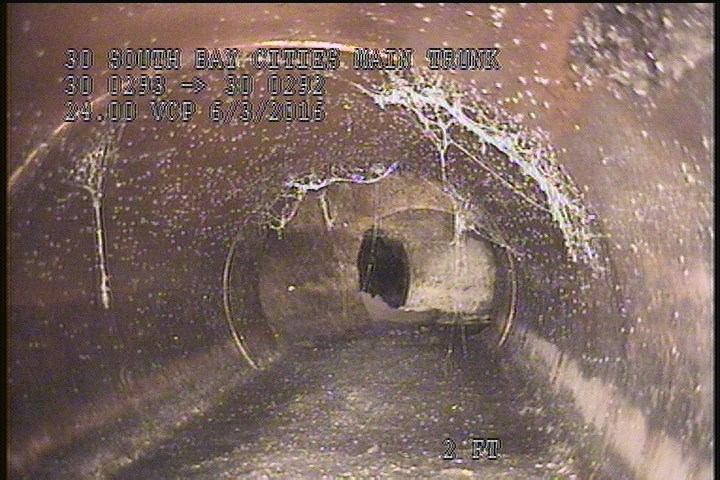

0 ft. - Water Level, 15 %of cross sectional area - STAGNANT WATER/SLUDGE

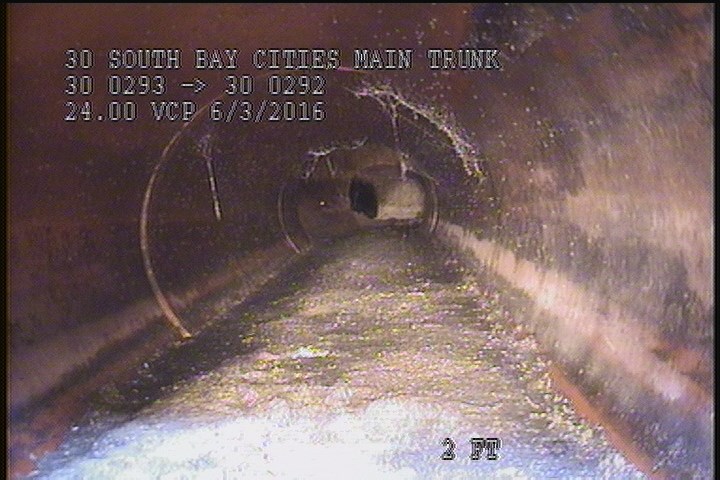

2 ft. - Deposits Attached Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - SLUDGE

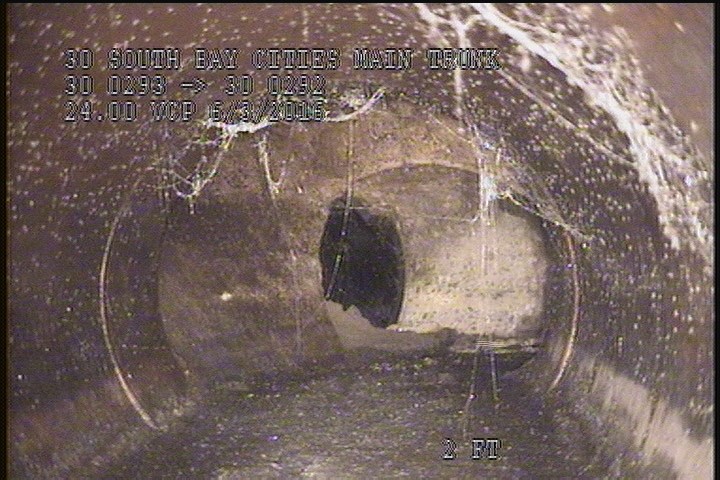

2.1 ft. - Upstream Manhole, Survey Ends - ABLE TO SEE MH. 292
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 1:15 PM |
| 0 | MGO | ROACHES INISDE THE MH. |
| 2.1 | AMH | ABLE TO SEE MH. 292 |
| 2 | DAZ | SLUDGE |
| 0 | MWL | STAGNANT WATER/SLUDGE |
Properties (6)
- additional_info
- JUST GOING TO HANG THE CAMERA IN THE CENTER OF THE MH. & ZOOM IN D/S TO MH. 292
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-06-03T13:01:50-07:00
- documentation
- MIRANDA, FRANKLIN, SHADLER
- is_lateral_inspection
- false
