Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 28, 2016, 02:48 PM

  • 30 0085_30 0084_5282016_075624.mp4

Date
05/28/2016
W/O
0568757
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00878
PipeID
P17793
Time
7:48 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7134
Sewer Name
30 SOUTH BAY CITIES MAIN TRUNK
City
REDONDO BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 30
Page No.
05
Purpose
Routine Assessment
Project
20160528AM_SOUTH_BAY_CITIES_MAIN_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
30 0084
Downstream MH
30 0085
Dir. of Survey
Upstream
Length Surveyed
326.5 ft.
Total Length
326.5 ft.
Structural Index
4
Structural Quick
4100
Structural Rating
4
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 30 0084 to 30 0085
MH: 30 0084MH: 30 0085upstream0 ft. AMH - Upstream Manhole, Survey Ends - 8:13 AM, PRESSURE PLATE1.7 ft. MGO - General Observation - SLIGHT GREASE THROUGHOUT THE REACH295.3 ft. FM - Fracture Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES326.5 ft. MWL - Water Level, 20 %of cross sectional area326.5 ft. AMH - Downstream Manhole, Survey Begins - 7:55 AM326.5 ft. MGO - General Observation - ACTIVE DROP CONN. INSIDE THE MH. @ 09 O'CLOCK326.5 ft. MGO - General Observation - ACTIVE CONNECTIONS INSIDE THE STACK326.5 ft. MWM - Water Mark, 35 %of cross sectional area

Observation photos (4)

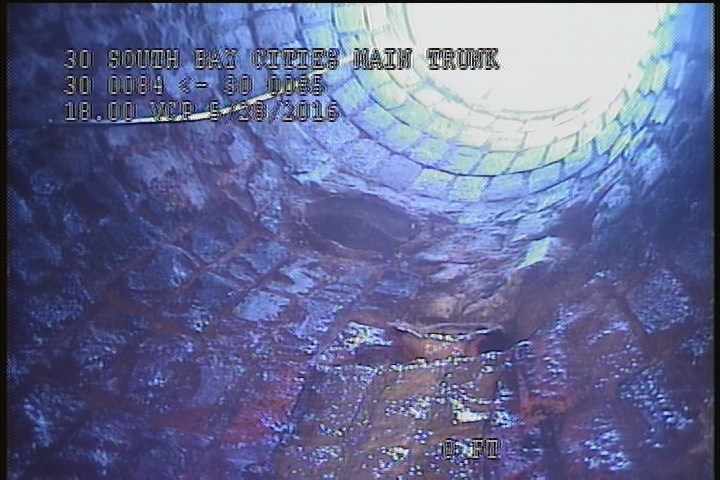

  • General Observation - ACTIVE DROP CONN. INSIDE THE MH. @ 09 O'CLOCK

    0 ft. - General Observation - ACTIVE DROP CONN. INSIDE THE MH. @ 09 O'CLOCK

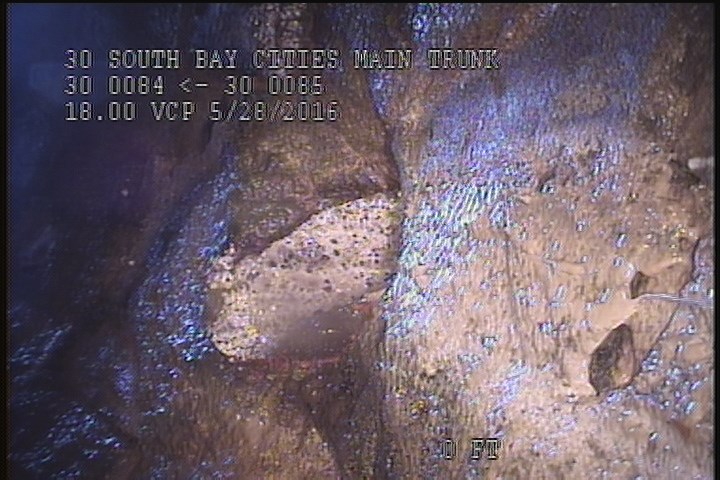

  • General Observation - ACTIVE CONNECTIONS INSIDE THE STACK

    0 ft. - General Observation - ACTIVE CONNECTIONS INSIDE THE STACK

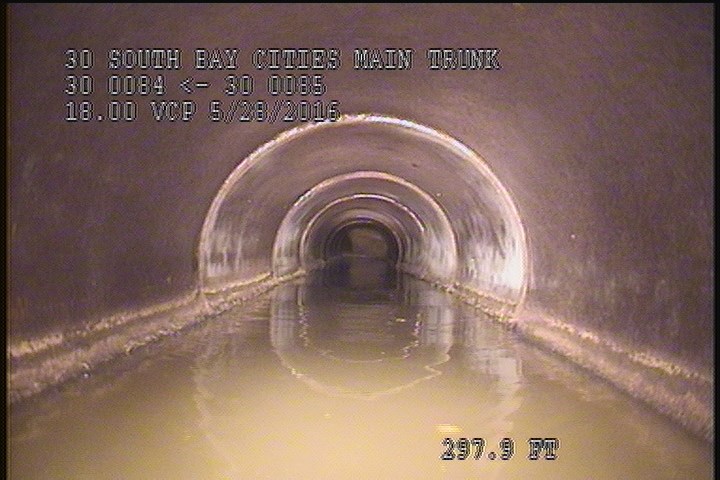

  • Water Mark, 35 %of cross sectional area

    0 ft. - Water Mark, 35 %of cross sectional area

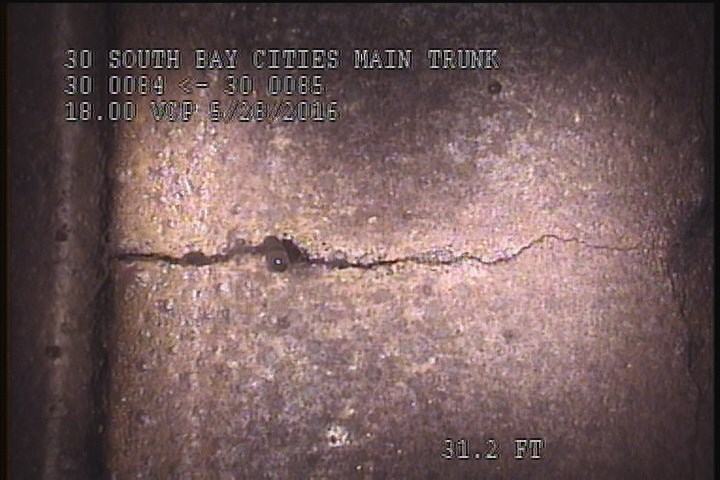

  • Fracture Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES

    31.2 ft. - Fracture Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES

All inspections of P17793Work order 0568757

Observations (8)

DistanceCodeObservation
31.2FM—
0MWL—
326.5AMH8:13 AM, PRESSURE PLATE
0AMH7:55 AM
0MGOACTIVE DROP CONN. INSIDE THE MH. @ 09 O'CLOCK
324.8MGOSLIGHT GREASE THROUGHOUT THE REACH
0MGOACTIVE CONNECTIONS INSIDE THE STACK
0MWM—

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2016-05-28T07:48:12-07:00
documentation
MIRANDA, FRANKLIN, SHADLER
is_lateral_inspection
false
