Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 27, 2016, 03:42 PM

  • G 0078_G 0077_5272016_092448.mp4

Date
05/27/2016
W/O
0563388
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00347
PipeID
P10440
Time
8:42 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7133
Sewer Name
G JOINT OUTFALL G - UNIT 7
City
COMPTON
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
05
Purpose
Routine Assessment
Project
20160526AM_JOINT_OUTFALL_G_UNIT_7
Material
Reinforced Concrete Pipe
Shape
Circular
Height
48 in.
Upstream MH
G 0078
Downstream MH
G 0077
Dir. of Survey
Downstream
Length Surveyed
171.4 ft.
Total Length
171.4 ft.
Structural Index
3
Structural Quick
3321
Structural Rating
11
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
11
Pipe schematic from manhole G 0078 to G 0077
MH: G 0078MH: G 0077downstream0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 9:25 AM0 ft. MWL - Water Level, 30 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start2 ft. MGO - General Observation - 90% MAG COAT FROM 08 TO 04 O'CLOCK, START141.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 8"158.8 ft. SAV - Surface Aggregate Visible, at 01 o'clock, within 8 inches of joint: NO162.2 ft. SAV - Surface Aggregate Visible, at 12 o'clock, within 8 inches of joint: NO165.8 ft. SAV - Surface Aggregate Visible, from 08 to 11 o'clock, within 8 inches of joint: NO, Start171.3 ft. SAV - Surface Aggregate Visible, from 08 to 11 o'clock, within 8 inches of joint: NO, Finish171.3 ft. MGO - General Observation - ROACHES INSIDE THE MH.171.3 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish171.3 ft. MGO - General Observation - 90% MAG COAT FROM 08 TO 04 O'CLOCK, FINISH171.4 ft. AMH - Downstream Manhole, Survey Ends - 9:40 AM

Observation photos (6)

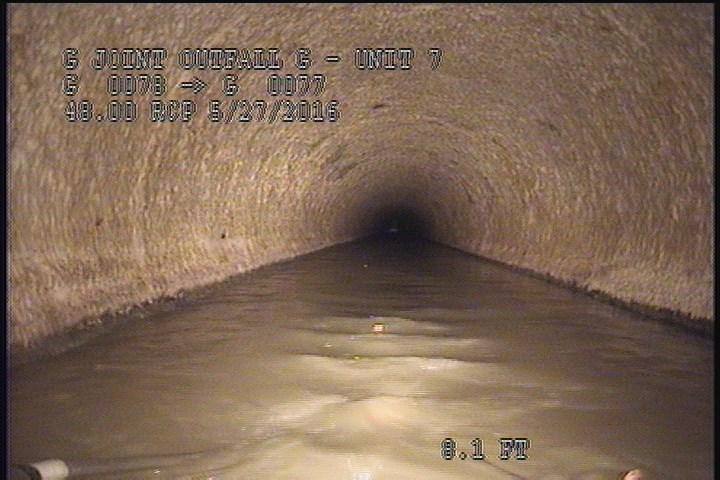

  • Upstream Manhole, Survey Begins - 9:25 AM

    0 ft. - Upstream Manhole, Survey Begins - 9:25 AM

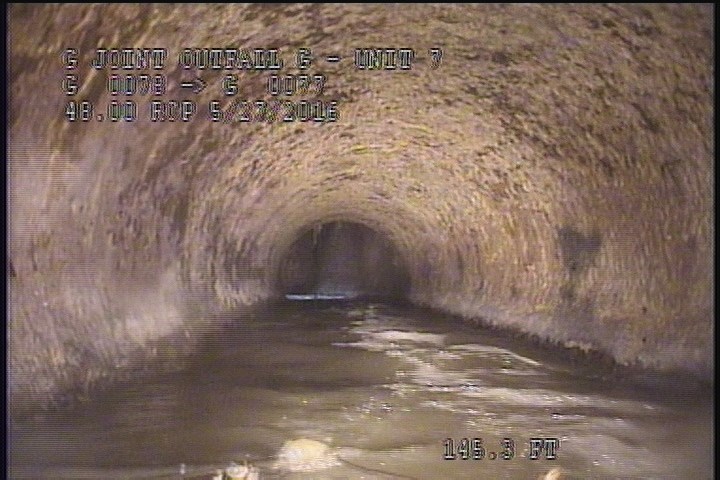

  • Water Level, 30 %of cross sectional area

    0 ft. - Water Level, 30 %of cross sectional area

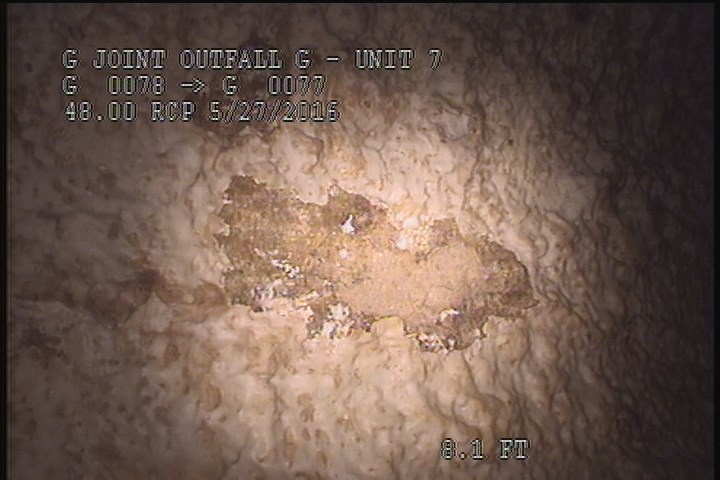

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

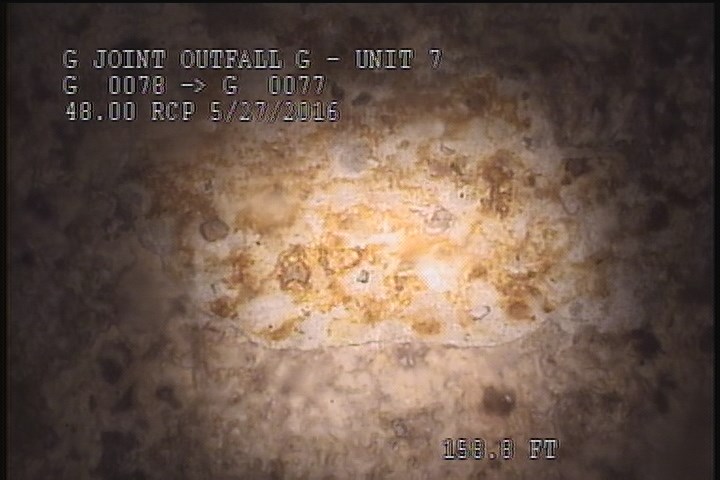

  • Surface Aggregate Visible, at 01 o'clock, within 8 inches of joint: NO

    158.8 ft. - Surface Aggregate Visible, at 01 o'clock, within 8 inches of joint: NO

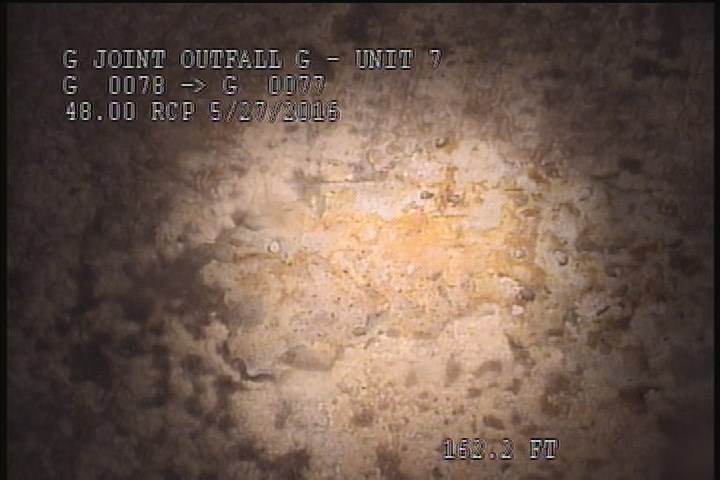

  • Surface Aggregate Visible, at 12 o'clock, within 8 inches of joint: NO

    162.2 ft. - Surface Aggregate Visible, at 12 o'clock, within 8 inches of joint: NO

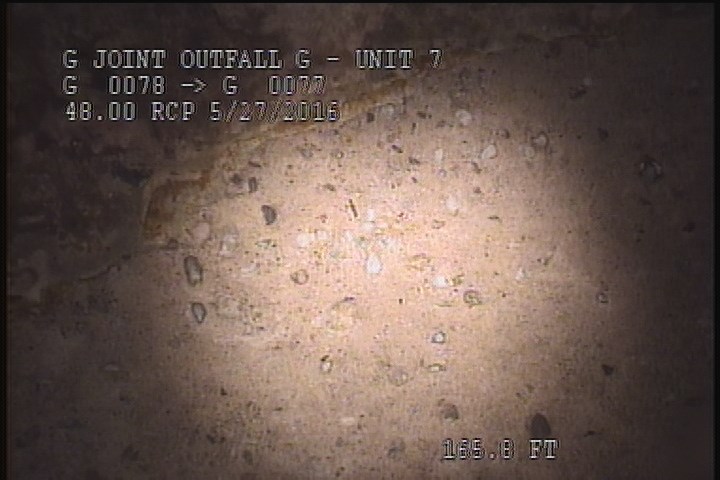

  • Surface Aggregate Visible, from 08 to 11 o'clock, within 8 inches of joint: NO, Start

    165.8 ft. - Surface Aggregate Visible, from 08 to 11 o'clock, within 8 inches of joint: NO, Start

All inspections of P10440Work order 0563388

Observations (14)

DistanceCodeObservation
158.8SAV—
0MWM—
2SSS—
171.3SAV—
171.3MGOROACHES INSIDE THE MH.
171.4AMH9:40 AM
171.3SSS—
2MGO90% MAG COAT FROM 08 TO 04 O'CLOCK, START
0AMH9:25 AM
0MWL—
141.6TFA—
162.2SAV—
171.3MGO90% MAG COAT FROM 08 TO 04 O'CLOCK, FINISH
165.8SAV—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2016-05-27T08:42:08-07:00
documentation
MIRANDA, FRANKLIN, SHADLER, IGNACIO
is_lateral_inspection
false
