Wastewater/Activity/PacpInspection/1.0May 26, 2016, 10:18 AM
- Date
- 05/26/2016
- W/O
- 0568714
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00456
- PipeID
- P07223
- Time
- 3:18 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6712
- Sewer Name
- 05 HAWTHORNE-LAWNDALE-TORRANCE TRUNK
- City
- HAWTHORNE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- 20160521MDM_HAWTHORNE_LAWNDALE_TORRANCE_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 54 in.
- Upstream MH
- 05 2080
- Downstream MH
- 05 2079
- Dir. of Survey
- Downstream
- Length Surveyed
- 40.5 ft.
- Total Length
- 40.5 ft.
- Structural Index
- 3
- Structural Quick
- 3400
- Structural Rating
- 12
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (4)

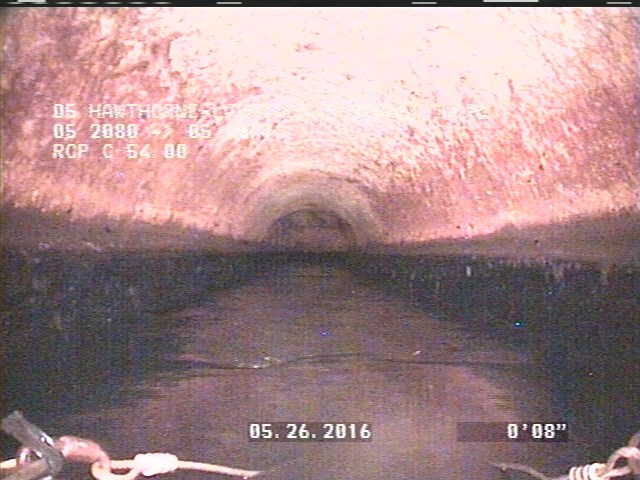

2 ft. - General Observation - MAG COAT 95% START

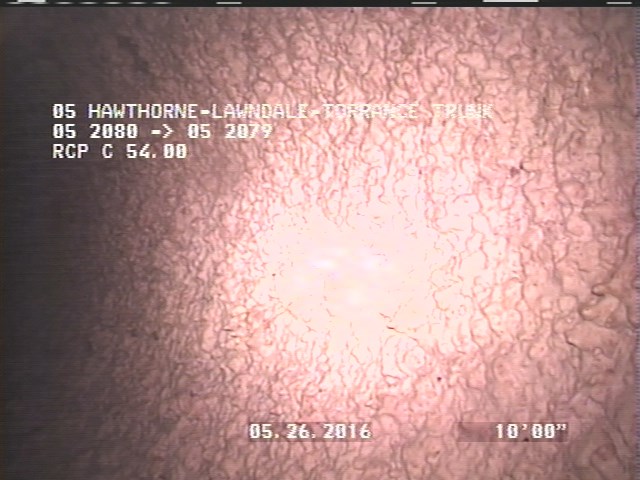

10 ft. - General Photograph

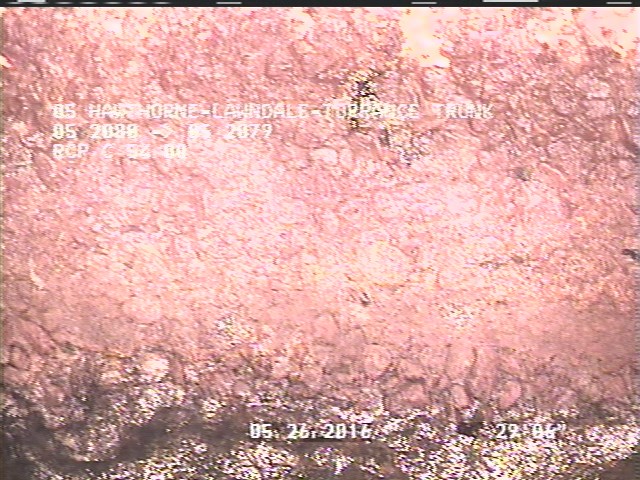

29.5 ft. - Surface Aggregate Visible, at 08 o'clock, within 8 inches of joint: NO, Start - SEVERE AGG

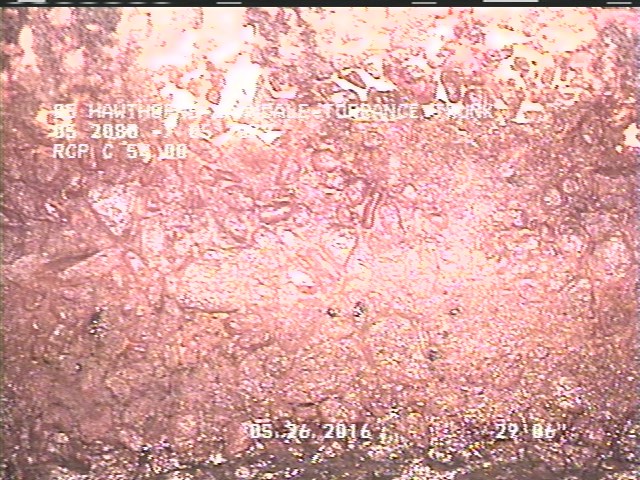

29.5 ft. - Surface Aggregate Visible, at 04 o'clock, within 8 inches of joint: NO, Start - SEVERE AGG
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | MH CONN OPEN 9:00 STOPLOG IN PLACE |
| 0 | MWM | — |
| 40.5 | AMH | 5:50AM |
| 29.5 | SAV | SEVERE AGG |
| 40.1 | SAV | SEVERE AGG |
| 0 | MGO | MH CONN 3:00 OPEN |
| 2 | MGO | MAG COAT 95% START |
| 29.5 | SAV | SEVERE AGG |
| 0 | AMH | 5:40AM |
| 40.1 | SAV | SEVERE AGG |
| 40.1 | MGO | MAG COAT 95% FINISH |
| 0 | MWL | — |
| 10 | MGP | — |
Properties (6)
- custom_field_three
- SEVERE AGG - 95 % MAG COAT
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-05-26T03:18:24-07:00
- documentation
- MARTIN,MANANES,REVVELES,OLIVER 111
- is_lateral_inspection
- false
