Wastewater/Activity/PacpInspection/1.0May 20, 2016, 09:37 AM
03 0433_03 0432_5202016_045746.mp4
- Date
- 05/20/2016
- W/O
- 0563401
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00406
- PipeID
- P04981
- Time
- 2:37 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0141
- Sewer Name
- 03 WATER STREET TRUNK
- City
- LONG BEACH
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 22
- Purpose
- Capital Improvement Program Assesment
- Project
- 20160520MDM_WATER_STREET_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Upstream MH
- 03 0433
- Downstream MH
- 03 0432
- Dir. of Survey
- Downstream
- Length Surveyed
- 8.4 ft.
- Total Length
- 8.4 ft.
- Structural Index
- 5
- Structural Quick
- 5141
- Structural Rating
- 9
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (3)

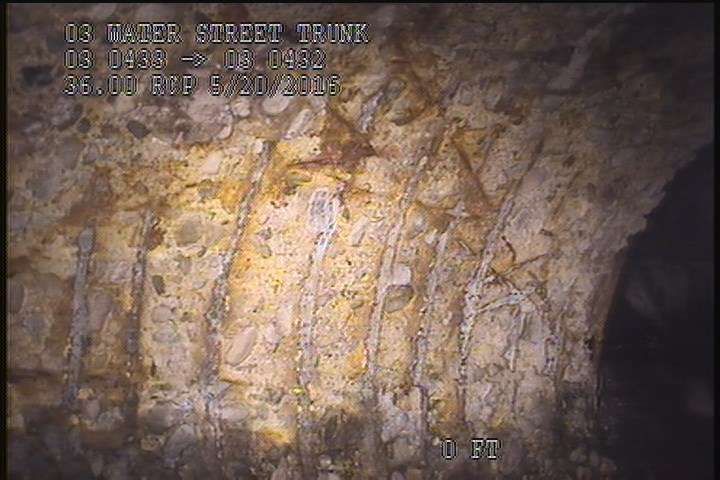

2 ft. - Surface Reinforcement Visible, from 12 to 04 o'clock, within 8 inches of joint: YES, Start - CIRCUM REBAR

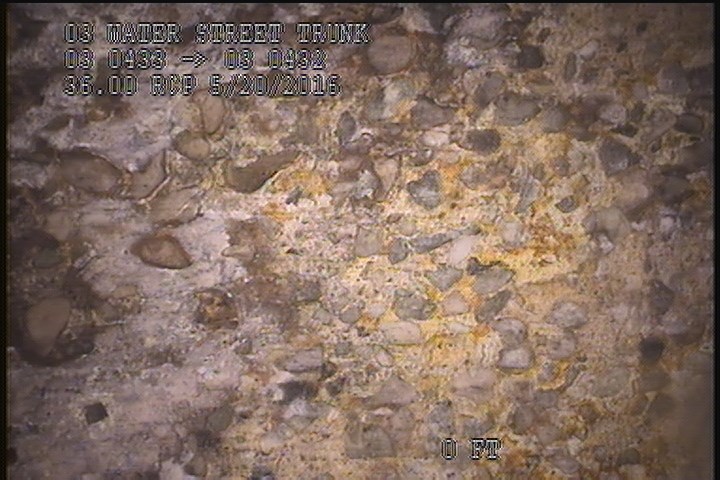

2 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES - SEVERE AGG

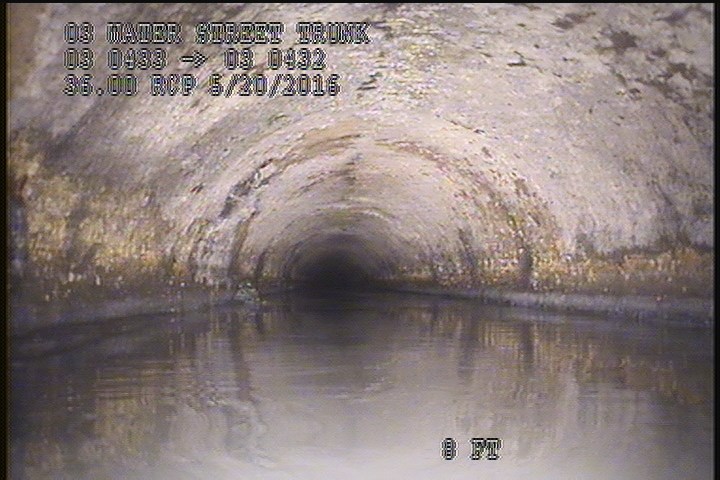

8 ft. - General Observation - MAG COAT 50% 8:00 TO 4:00
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 2 | SRV | CIRCUM REBAR |
| 8 | SRV | — |
| 8 | SAM | — |
| 2 | SAM | SEVERE AGG |
| 8.4 | MSA | 20% SLUDGE STOPPED TRACTOR |
| 0 | AMH | 4:55AM |
| 2 | DSZ | SLUDGE |
| 8 | MGO | MAG COAT 50% 8:00 TO 4:00 |
| 0 | MWM | — |
| 8 | DSZ | SLUDGE |
Properties (4)
- customer
- LACSD
- datetime
- 2016-05-20T02:37:09-07:00
- documentation
- MARTIN,MANANES,REVELES,OLIVER 111
- is_lateral_inspection
- false
