Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 19, 2016, 08:32 PM

  • A 0277_C 0177A_5192016_133621.mp4

Date
05/19/2016
W/O
0568717
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00130
PipeID
P09703
Time
1:32 PM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0140
Sewer Name
C JOINT OUTFALL C - UNIT 5C
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
10
Purpose
Routine Assessment
Project
20160519AM_JOINT_OUTFALL_C_UNIT_5C
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Upstream MH
C 0177A
Downstream MH
A 0277
Dir. of Survey
Upstream
Length Surveyed
5.6 ft.
Total Length
5.6 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole C 0177A to A 0277
MH: C 0177AMH: A 0277upstream0 ft. AMH - Upstream Manhole, Survey Ends - 1:44 PM0.5 ft. MGO - General Observation - 50% MAG COAT FROM 08 TO 04 O'CLOCK, FINISH0.5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish0.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish0.5 ft. MGO - General Observation - STOPLOG IN PLACE INSIDE THE MH. @ 12 O'CLOCK3.5 ft. MGO - General Observation - 50% MAG COAT FROM 08 TO 04 O'CLOCK, START3.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start3.5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start3.6 ft. MGO - General Observation - MAG COAT FROM 04 TO 08 O'CLOCK, START5.6 ft. AMH - Downstream Manhole, Survey Begins - 1:36 PM5.6 ft. MWL - Water Level, 0 %of cross sectional area - DRY LINE

Observation photos (4)

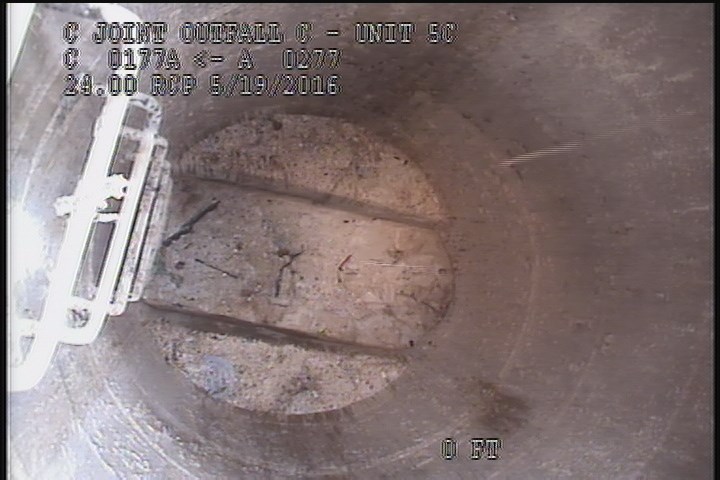

  • Downstream Manhole, Survey Begins - 1:36 PM

    0 ft. - Downstream Manhole, Survey Begins - 1:36 PM

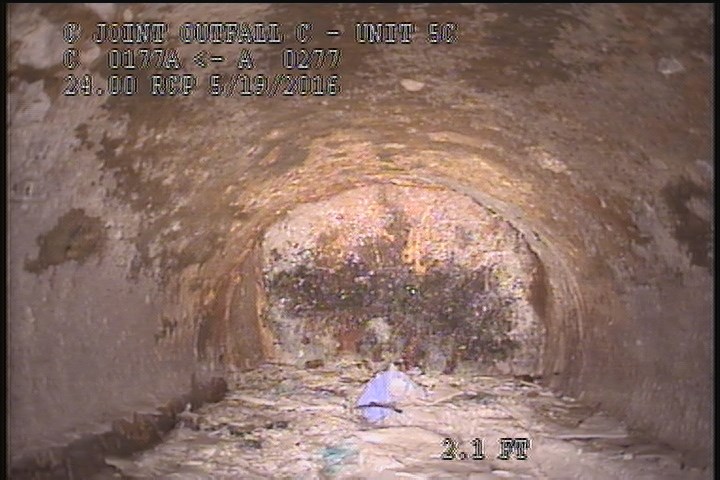

  • General Observation - MAG COAT FROM 04 TO 08 O'CLOCK, START

    2 ft. - General Observation - MAG COAT FROM 04 TO 08 O'CLOCK, START

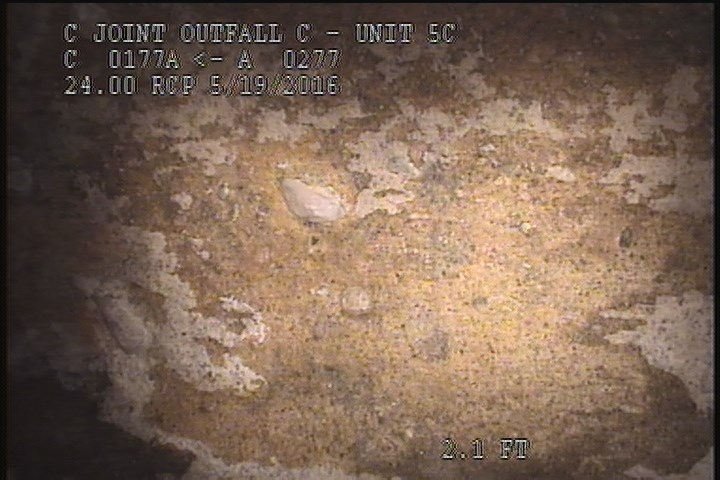

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

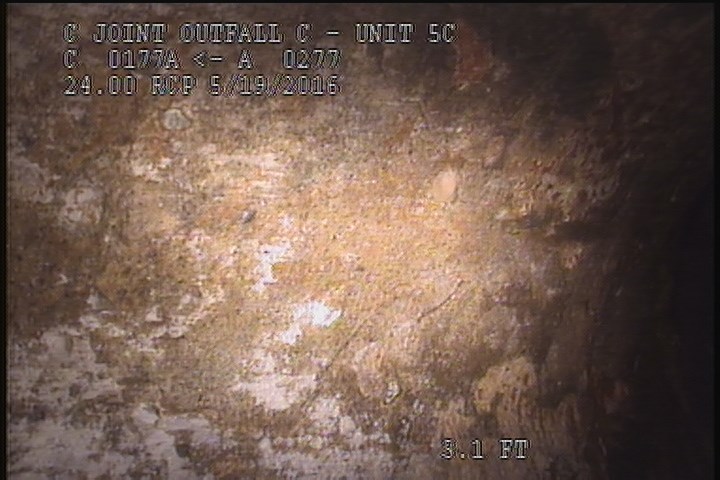

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    2.1 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

All inspections of P09703Work order 0568717

Observations (11)

DistanceCodeObservation
5.1MGO50% MAG COAT FROM 08 TO 04 O'CLOCK, FINISH
5.1SSS—
5.1SAV—
2.1MGO50% MAG COAT FROM 08 TO 04 O'CLOCK, START
0AMH1:36 PM
0MWLDRY LINE
5.6AMH1:44 PM
2.1SAV—
2.1SSS—
2MGOMAG COAT FROM 04 TO 08 O'CLOCK, START
5.1MGOSTOPLOG IN PLACE INSIDE THE MH. @ 12 O'CLOCK

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2016-05-19T13:32:13-07:00
documentation
MIRANDA, SHADLER, FRANKLIN
is_lateral_inspection
false
