Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 19, 2016, 07:31 PM

  • C 0175_C 0174_5192016_123748.mp4

Date
05/19/2016
W/O
0568717
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00130
PipeID
P09699
Time
12:31 PM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0140
Sewer Name
C JOINT OUTFALL C - UNIT 5C
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
10
Purpose
Routine Assessment
Project
20160519AM_JOINT_OUTFALL_C_UNIT_5C
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Upstream MH
C 0175
Downstream MH
C 0174
Dir. of Survey
Downstream
Length Surveyed
400.9 ft.
Total Length
400.9 ft.
Structural Index
4
Structural Quick
5231
Structural Rating
15
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
15
Pipe schematic from manhole C 0175 to C 0174
MH: C 0175MH: C 0174downstream0 ft. AMH - Upstream Manhole, Survey Begins - 12:36 PM0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start2.2 ft. SRV - Surface Reinforcement Visible, at 12 o'clock, within 8 inches of joint: NO5 ft. MGO - General Observation - 95% MAG COAT FROM 08 TO 04 O'CLOCK, START5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish8.1 ft. SRV - Surface Reinforcement Visible, at 12 o'clock, within 8 inches of joint: NO400 ft. MGO - General Observation - OPEN CONN. INSIDE THE MH. @ 09 O'CLOCK400 ft. MGO - General Observation - 95% MAG COAT FROM 08 TO 04 O'CLOCK, FINISH400 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish400.2 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK400.9 ft. AMH - Downstream Manhole, Survey Ends - 1:00 PM

Observation photos (6)

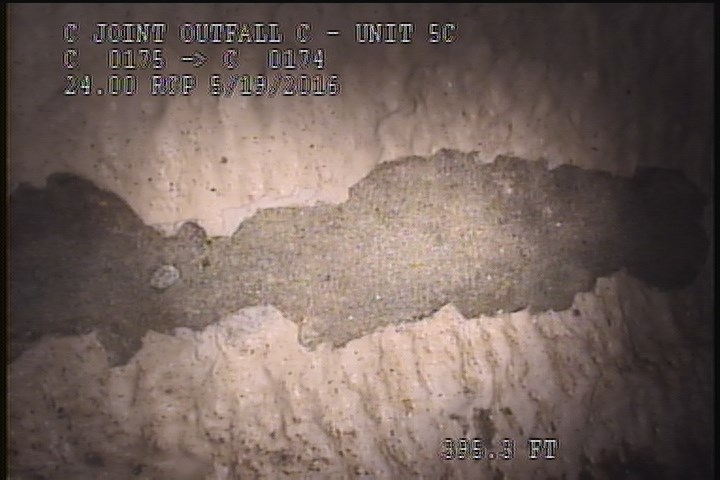

  • Water Mark, 35 %of cross sectional area

    0 ft. - Water Mark, 35 %of cross sectional area

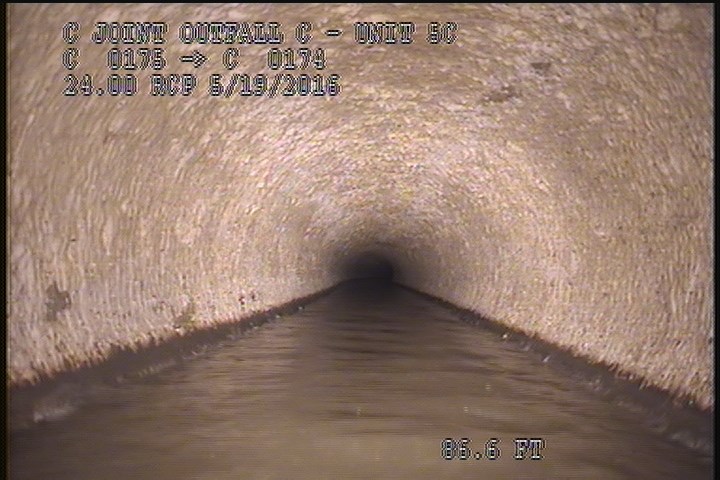

  • Water Level, 25 %of cross sectional area

    0 ft. - Water Level, 25 %of cross sectional area

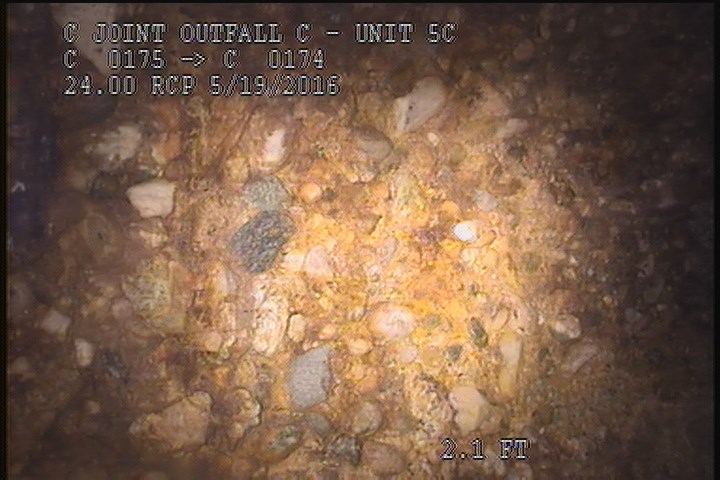

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

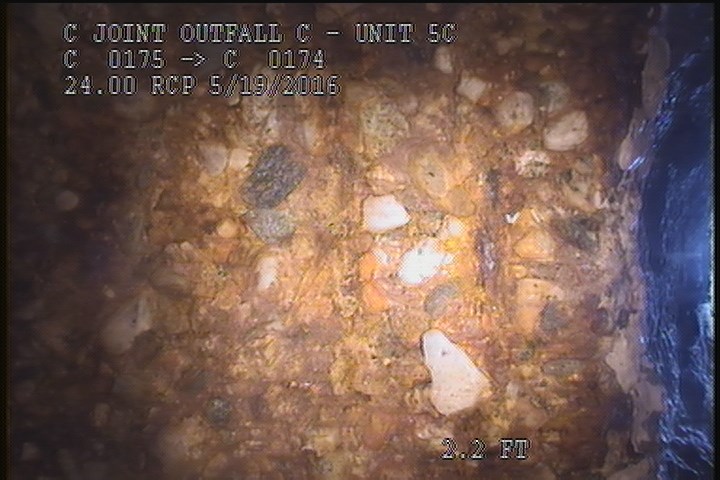

  • Surface Reinforcement Visible, at 12 o'clock, within 8 inches of joint: NO

    2.2 ft. - Surface Reinforcement Visible, at 12 o'clock, within 8 inches of joint: NO

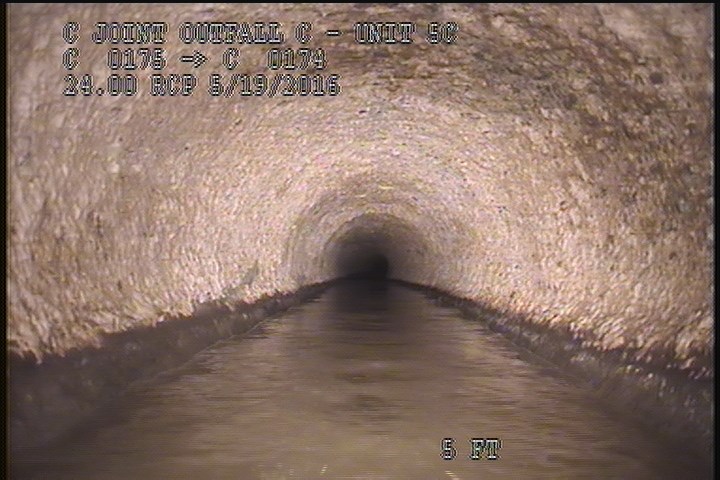

  • General Observation - 95% MAG COAT FROM 08 TO 04 O'CLOCK, START

    5 ft. - General Observation - 95% MAG COAT FROM 08 TO 04 O'CLOCK, START

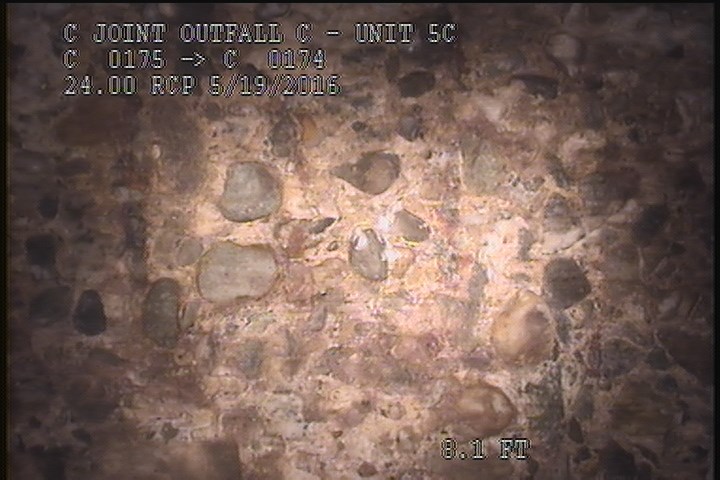

  • Surface Reinforcement Visible, at 12 o'clock, within 8 inches of joint: NO

    8.1 ft. - Surface Reinforcement Visible, at 12 o'clock, within 8 inches of joint: NO

All inspections of P09699Work order 0568717

Observations (16)

DistanceCodeObservation
5MGO95% MAG COAT FROM 08 TO 04 O'CLOCK, START
8.1SRV—
5SAV—
400MGOOPEN CONN. INSIDE THE MH. @ 09 O'CLOCK
0AMH12:36 PM
0MWM—
400.9AMH1:00 PM
2.2SRV—
400MGO95% MAG COAT FROM 08 TO 04 O'CLOCK, FINISH
400.2MGOACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK
400SSS—
2SAV—
2SSS—
0MGOACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK
0MWL—
0MGOACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2016-05-19T12:31:21-07:00
documentation
MIRANDA, SHADLER, FRANKLIN
is_lateral_inspection
false
